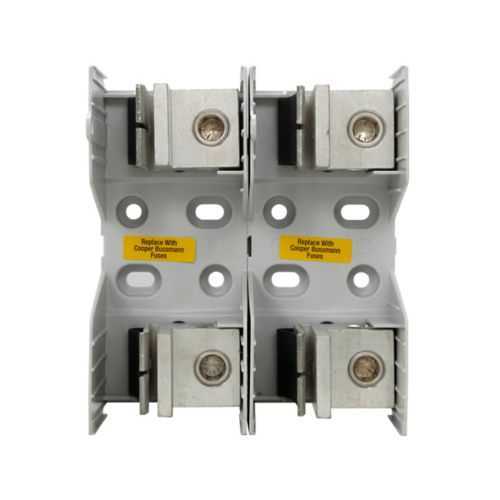

Eaton JM60400-2CR Modular Fuse Block - UL Listed
Part Number: JM60400-2CR
Quick Summary
The Eaton JM60400-2CR modular fuse block is a two-pole protection device designed to deliver reliable overcurrent protection for electrical panels and industrial machinery. It addresses downtime and compatibility challenges by offering a robust, plug‑in solution that works seamlessly with the Bussmann JM fuse family. UL Listed and CSA Certified, RoHS Compliant and CE Marked, this block meets essential safety and environmental standards. With a Class J rating and 600 V capability, it supports high‑current applications while enabling efficient panel design and easier compliance for OEMs and integrators. Its compact footprint and knife blade end connections add value through faster installation and reduced spare parts inventory.
Product Information
Extended Description
JM60400-2CR Eaton: Eaton Bussmann series JM modular fuse block, CR, 225-400 A, Two-pole, Class J, Knife blade end x knife blade end, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60400-2CR
UPC
051712387040
Product Length/Depth
7.9 in
Product Height
4.91 in
Product Width
7 in
Product Weight
4.32 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
225-400A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class J
Connection
Knife blade end x knife blade end
Special features
CR
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60400-2CR
High current rating with robust interrupt capability: The JM60400-2CR is rated for 225-400 A with a 200 kAIC interrupt capability at 600 V, delivering rapid fault interruption to protect downstream equipment. Business impact: minimizes arc flash exposure, reduces equipment damage, and lowers downtime during faults. Application: motor feeders and high‑current distribution in manufacturing lines. Compatibility and installation advantage: Knife blade end connections simplify wiring and enable quicker fuse changes without disturbing adjacent circuits, reducing termination errors and maintenance time. Business impact: lowers labor costs and improves first‑time fix rates. Application: service panels and machine controls in OEM builds. Regulatory compliance: UL Listed, CSA Certified, RoHS Compliant and CE Marked. Business impact: straightforward regulatory approvals and broader market acceptance. Application: global panel builds requiring traceable certifications. Size and footprint: At 7.9 in length, 7 in width, and 4.91 in height, with a weight of 4.32 lb, it fits standard enclosures with predictable mounting. Business impact: saves enclosure space and simplifies installation planning. Application: control panels with tight layouts. Special features alignment: CR designation indicates a compatible end‑cap/installation feature for reliable integration with existing Bussmann hardware. Business impact: reduces custom tooling and accelerates deployment. Application: well-suited for retrofit projects and new builds in industrial automation.
Get a Quick Quote for a Eaton JM60400-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60400-2CR?
Enquire Now
FAQs
Yes. The JM60400-2CR is a two-pole modular fuse block designed for use with the Bussmann JM series and Class J fuses. Its knife blade end connections simplify wiring and help ensure reliable mating within standard panel layouts. When upgrading, verify enclosure clearance and mounting provisions to maintain clearance for bus bars and thermal management.
Key ratings include amperage 225-400 A, voltage 600 V, interrupt rating 200 kAIC, and short-circuit rating 200 kA. These specs enable safe interruption of high‑fault currents, protect downstream equipment, and support reliable operation in demanding industrial environments such as motor drives and feeders in control panels.
The JM60400-2CR is well suited for electrical distribution panels, motor control centers, and machine feeders in manufacturing, processing, and automation environments. Its two-pole Class J design and high current capability make it ideal for high‑demand applications where space is constrained and service life matters, such as conveyors, pumps, and presses.
The fuse block carries UL Listed and CSA Certified marks, along with RoHS compliance and CE marking. This combination supports global market acceptance and simplifies regulatory approvals for panels shipped to North America and Europe, while ensuring environmental compliance and safer materials within electrical assemblies.
The modular design with knife blade ends reduces wiring effort and accelerates fuse replacement, cutting maintenance time and labor costs. The high interrupt rating lowers the risk of costly outages, while UL/CSA compliance supports fewer rework steps during audits. Overall, customers see improved uptime, simpler spares management, and faster deployment in new builds or retrofits.
