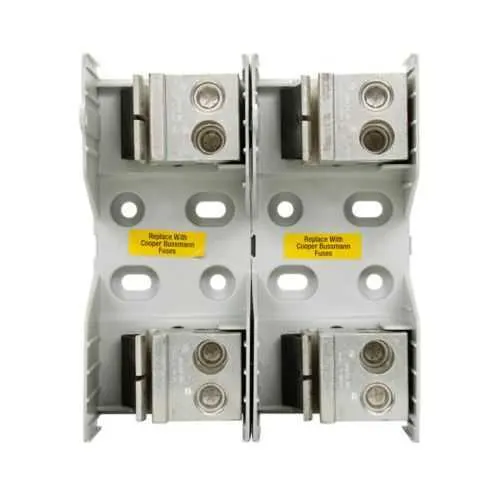

Eaton JM60400-2MW16 Modular Fuse Block - UL Listed
Part Number: JM60400-2MW16
Quick Summary
Eaton JM60400-2MW16 modular fuse block provides reliable overcurrent protection for industrial power-distribution panels in demanding manufacturing environments. Engineers often struggle with finding a high-current, space-efficient protection solution that simplifies maintenance while meeting safety standards. This device carries UL Listed, CSA Certified, and CE Marked labels, plus RoHS compliance, helping you satisfy global regulatory requirements. With a two-pole design rated 225–400 A at 600 V and a 200 kAIC short-circuit rating, it aligns with modern automation architectures. The JM60400-2MW16 integrates smoothly within Eaton Bussmann JM series cabinets, delivering improved reliability, reduced downtime, and a straightforward path to compliant protection across diverse lines of equipment.
Product Information
Extended Description
JM60400-2MW16 Eaton: Eaton Bussmann series JM modular fuse block, 225-400 A, Two-pole, Class J, Lineside: (1) 600MCM - 4 AWG Cu/Al, Loadside: (6) 2 - 14 AWG Cu, 2-8 AWG Al, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60400-2MW16
UPC
051712491143
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
225-400A
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class J
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60400-2MW16
Feature → Business Impact → Application: The JM60400-2MW16 delivers high-current, two-pole Class J protection for industrial power panels, enabling robust overcurrent protection with a 200 kAIC rating. This translates to fewer nuisance trips and enhanced equipment uptime in demanding environments such as packaging lines and motor control centers. Application-wise, the device supports lineside connections up to 600MCM and 4 AWG Cu/Al and loadside terminals from 2–14 AWG Cu and 2–8 AWG Al, simplifying field wiring and reducing installation time in machine enclosures. Another benefit is RoHS compliance and CE marking, ensuring compliance across global supply chains and facilitating cross-border manufacturing. Compatibility with the Eaton Bussmann JM family means faster integration, standardized maintenance, and predictable spare-part stocking. The modular design also helps address downtime-related objections by enabling rapid fuse replacement without extensive rewiring, improving overall total cost of ownership.
Get a Quick Quote for a Eaton JM60400-2MW16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60400-2MW16?
Enquire Now
FAQs
JM60400-2MW16 is a two-pole Class J modular fuse block designed for the Eaton Bussmann JM family. It supports lineside connections up to 600MCM - 4 AWG Cu/Al and loadside connections for 2-14 AWG Cu and 2-8 AWG Al. When integrating, verify panel clearance, ensure the device is within 225-400 A operating range, and confirm UL Listed/CSA Certified compatibility to maintain overall system certification. Using the JM series kit ensures straightforward mounting, wiring, and replacement within existing protection schemes.
The JM60400-2MW16 offers a 225-400 A amperage rating, 600 V voltage rating, and a 200 kAIC short-circuit rating. It is a two-pole configuration with Class J protection, designed for high-current industrial applications. These specs support reliable protection for motors and feeders in panels and switchgear while maintaining compatibility with standard Bussmann JM components.
This fuse block is UL Listed and CSA Certified, ensuring recognized safety and performance standards. It is CE Marked and RoHS Compliant, supporting global regulatory requirements and restricted use of hazardous substances. These certifications simplify regulatory acceptance across multiple regions and reduce compliance risk during audits.
The modular JM60400-2MW16 reduces downtime through a straightforward two-pole design that enables rapid replacement of fuses without extensive rewiring. Its robust 200 kAIC rating provides strong fault-level protection, minimizing secondary damage. Compatibility with existing JM-series components streamlines spare-parts management, and UL/CSA/CE RoHS compliance reduces regulatory risk, making preventive maintenance more predictable and cost-effective.
Official datasheets and catalogs are available from Eaton. Key resources include the Eaton Specification Sheet for JM60400-2MW16 and the Bussmann catalog pages, with downloadable PDFs such as the JM60400-2MW16 specification sheet at Eaton’s site. You can also view the broader Bussmann series catalog for project-wide protection strategy and component compatibility.
