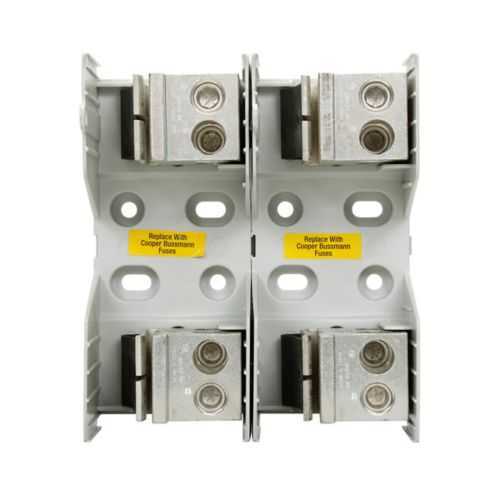

Eaton JM60400-2MW26 Modular Fuse Block - 200 kAIC Class J
Part Number: JM60400-2MW26
Quick Summary
The Eaton JM60400-2MW26 Modular Fuse Block protects industrial power distribution feeders in control panels. Engineers often struggle to maximize uptime while meeting high fault current ratings and tight panel space. It carries UL Listed and CSA Certified marks and CE RoHS compliance, enabling safe, global installations. Designed for 225-400 A lineside protection, this two-pole fuse block delivers rugged Class J protection while reducing wiring complexity and lifecycle costs, making panel builds more reliable and maintainable.
Product Information
Extended Description
JM60400-2MW26 Eaton: Eaton Bussmann series JM modular fuse block, 225-400 A, Two-pole, Class J, 200 kA, Lineside: (2) 350kcmil - 6 AWG Cu/Al, Loadside: (6) 2 - 14 AWG Cu, 2-8 AWG Al, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60400-2MW26
UPC
051712491174
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
225-400A
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class J
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60400-2MW26
High current protection with a 225-400 A amperage rating and a 200 kA short-circuit rating, at a 600 V rating, delivers robust defense against fault conditions and minimizes downtime in critical power circuits. This translates to measurable uptime gains and lower maintenance costs in manufacturing lines and safety-critical applications. The JM60400-2MW26 utilizes a two-pole Class J configuration with defined lineside terminals (2) of 350 kcmil - 6 AWG Cu/Al and loadside terminals (6) of 2 - 14 AWG Cu and 2-8 AWG Al, simplifying wiring, reducing install time, and enabling flexible integration in control panels and motor control centers. The modular fuse block design supports scalable channel count and straightforward field upgrades, reducing panel rework and inventory complexity. Compliance with RoHS and CE marks ensures global deployment without redesign, while UL Listed and CSA Certified ratings provide regulatory assurance for cross-border manufacturing and equipment reliability. Industry-specific insight shows these features align with lean manufacturing goals, OT security, and safe energy distribution, especially in machine builders and system integrators.
Get a Quick Quote for a Eaton JM60400-2MW26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60400-2MW26?
Enquire Now
FAQs
For optimal performance, mount the two-pole JM60400-2MW26 in a secure chassis with proper clearance for wiring access. Use the specified lineside terminals (2) 350kcmil - 6 AWG Cu/Al and loadside terminals (6) 2 - 14 AWG Cu, 2-8 AWG Al to maintain conductor integrity. Refer to the datasheet for torque recommendations and routing guidelines to minimize heat buildup and ensure reliable fault-current handling in 225-400 A circuits.
The device supports 225-400 A continuously with a 200 kA short-circuit rating at 600 V, enabling robust protection in demanding environments such as machinery drives, power distribution blocks, and MCCs. Its Class J configuration provides reliable fuse protection, while the modular design allows scalable channel counts, reducing upgrade costs as system loads increase.
JM60400-2MW26 carries UL Listed and CSA Certified marks and CE RoHS compliance, ensuring conformity with North American and European market requirements. This combination supports cross-border manufacturing, easier supplier qualification, and smoother customer acceptance in regulated industries such as automotive, food & beverage, and process automation.
The two-pole arrangement consolidates protection for paired conductors, reducing panel depth and wiring complexity. This improves traceability and maintenance, while maintaining strict Class J protection standards. Engineers can optimize cabinet layouts without sacrificing fault-current protection, leading to smaller, more reliable assemblies in control panels and MCCs.
Yes. As part of the Bussmann family, this modular fuse block is designed for compatibility with Eaton protective components and can be coordinated with related fuses, holders, and accessories. This integration supports streamlined procurement, consistent safety ratings, and easier lifecycle management for machines and systems requiring standardized protection platforms.
