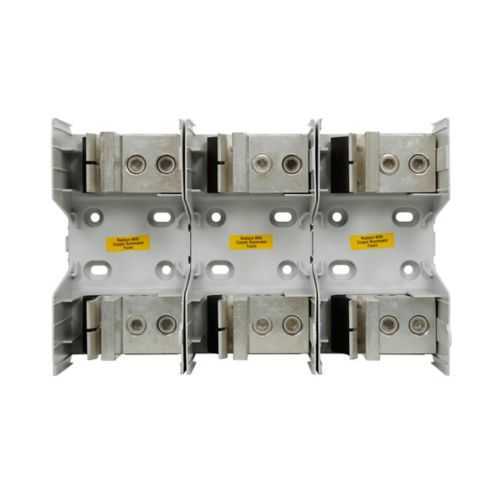

Eaton JM70100-1CR Fuse Block - Class J, 200 kAIC
Part Number: JM70100-1CR
Quick Summary
Eaton JM70100-1CR fuse block provides reliable protection for control panels and industrial machinery. In fast-moving automation environments, engineers often struggle to locate a compact, code-compliant solution that can safely handle high fault currents without complicating wiring. This unit carries UL Listed and CSA Certified marks, RoHS compliance, and CE marking to meet global safety and environmental standards. Its modular design simplifies panel installation and maintenance, while still delivering a 100 A rating and 700 V capability that align with common machine-control architectures.
Product Information
Extended Description
JM70100-1CR Eaton: Eaton Bussmann series JM modular fuse block, CR, 100 A, Single-pole, Class J, Box lug, 200 kAIC, 700 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM70100-1CR
UPC
051712514729
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
100 A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
700 V
Number of Poles
Single-pole
Class
Class J
Connection
Box lug
Special features
CR
