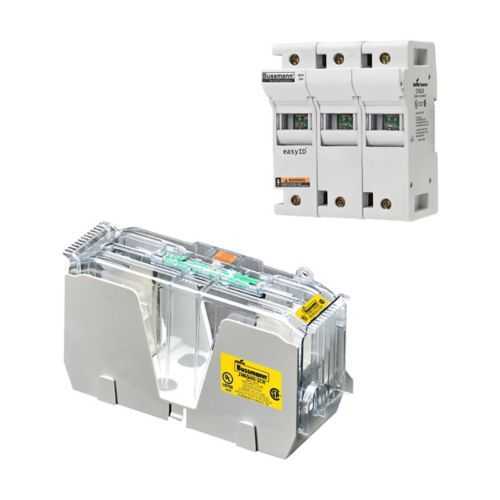

Eaton JM70100-3MW14 Modular Fuse Block - 200 kAIC

Three-pole JM70100-3MW14 delivers 100 A at 690 V with a 200 kAIC interrupt rating and 200 kA RMS short-circuit capability, enabling rapid fault isolation in motor control centers and machine panels. This high fault-current tolerance minimizes arc-flash risk and downstream damage, reducing downtime and repair costs. It fits compact DIN-rail or panel installations and is ideal for OEMs requiring robust protection without sacrificing panel real estate. It supports safe, compliant machine builds and minimizes system-wide risk. Box lug connections plus a multi-wire load-side lug design streamline field wiring and cabinet layouts. The design supports flexible conductor configurations and helps prevent wiring errors during commissioning, accelerating startup timelines. Mounting is versatile—DIN rail or panel—across diverse control architectures, from compact machine panels to larger distribution assemblies, while maintaining secure electrical contacts and repeatable torque up to 50 lb-in. Compact form factor preserves valuable enclosure space, simplifying cabinet design. Conductor material rated to 75 °C and stranded conductors offer compatibility with typical industrial cables while maintaining reliable lug pressure. The 50 lb-in torque limit ensures lug retention under vibration and temperature cycling. These mechanical and electrical traits translate to durable performance in demanding environments, reducing retightening cycles and maintenance surprises. This helps technicians during maintenance tasks and reduces incident exposure. RoHS compliance and PED 97/23 EC certification address global regulatory expectations for electrical protection devices, enabling smoother qualification for European and multinational projects. This supports procurement programs that favor RoHS-conformant parts and PED-compliant equipment, lowering compliance risk and speeding approvals in regulated industries. Suitable for OEMs targeting global markets, including aerospace and process industries. Accessory CVR(I)-J-60060 extends protective options, letting you implement CVR solutions without swapping major components. This modular approach reduces spare parts inventory and simplifies service, contributing to lower total cost of ownership while preserving the JM70100-3MW14’s compact footprint for DIN rail panel installations. Designed to integrate with CVR(I)-J-60060 without extra hardware.
