Eaton JMXFH1A02MCUDSA Push-Pull Connector - IP68
Part Number: JMXFH1A02MCUDSA
Quick Summary
JMXFH1A02MCUDSA is a plastic push-pull connector for rugged industrial wiring and machine panels. Engineers often struggle with reliable sealing, quick-connect reliability, and maintenance in harsh environments. This part offers IP68 sealing, UL94 V0 flammability, and RoHS compliance to meet harsh-duty standards, while delivering a compact 57 mm length and a 2-position layout. For technicians and procurement teams, the combination of robust performance and simple field installation translates into faster assembly, reduced downtime, and clearer compliance during audits, ultimately lowering total cost of ownership in automation systems.
Product Information
Extended Description

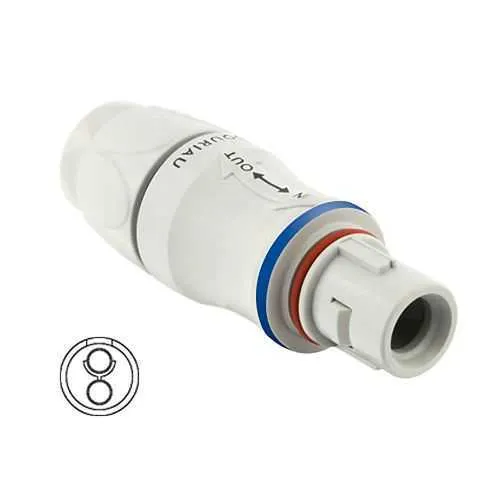

JMXFH1A02MCUDSA Eaton: Push-pull plastic IP68 plug, layout 1-02, male crimp contacts, keying A, blue color coding; JMXFH1A02MCUDSA
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1A02MCUDSA
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A IEC 10 A UL
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Feature → Business Impact → Application: Push-Pull coupling with IP68 sealing provides fast, moisture-resistant connections that minimize ingress risk and downtime in harsh environments; ideal for outdoor control panels and mobile machinery where reliability is critical. Feature → Business Impact → Application: Gold-plated crimp contacts with a 10 A rating deliver durable electrical performance and corrosion resistance, reducing contact resistance over the product life and supporting sensor/actuator networks in high-vibration settings. Feature → Business Impact → Application: Straight plug with a sealing backshell (Gland) simplifies cable routing and assures environmental protection at enclosure interfaces, streamlining panel wiring and field repairs in automation lines. Feature → Business Impact → Application: 2000 mating cycles extend service life in maintenance-heavy lines, lowering replacement frequency and enabling predictable uptime for packaging, material handling, and robotics. Feature → Business Impact → Application: Operating temperature range from -40 °C to 125 °C covers extreme factory floors and outdoor environments, enabling cross-site deployments and reducing part variety. Feature → Business Impact → Application: Lightweight 12 g shell with compact 19x19 mm footprint saves panel space and simplifies integration in dense robotics and machine builds, improving enclosure aesthetics and serviceability.
