Eaton JMXFH1A02MSUDSA Push-Pull Plastic Plug IP68
Part Number: JMXFH1A02MSUDSA
Quick Summary
Eaton JMXFH1A02MSUDSA is a plastic push-pull connector designed for IP68-rated, rugged automation and machinery wiring in harsh environments. It helps panel builders and machine integrators overcome sealing failures, space constraints, and field wear during installation and maintenance. With IP68 protection, RoHS and REACH compliance, and a UL94 V0 flame rating, this connector aligns with safety, environmental, and fire-safety standards. For OEMs, system integrators, and maintenance teams, the compact 57 mm length and 10 A rating enable scalable, reliable deployments across industrial facilities.
Product Information
Extended Description

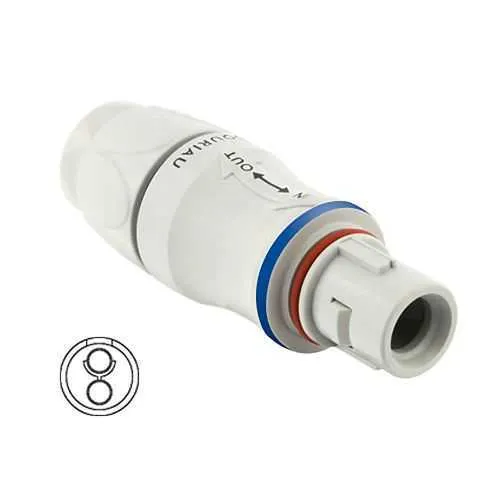

JMXFH1A02MSUDSA Eaton: Push-pull plastic IP68 plug, layout 1-02, male solder contacts, keying A, blue color coding; JMXFH1A02MSUDSA
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1A02MSUDSA
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A IEC 10 A UL
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Push-Pull coupling with IP68 sealing enables fast, tool-free mating even in dusty or washdown environments, reducing downtime and installation time. In practice, technicians can connect or disconnect quickly during panel wiring or field servicing, improving maintenance ROI. Gold-plated solder cup contacts provide low contact resistance and excellent corrosion resistance, translating to longer life in damp or coastal environments and fewer warranty calls. The 2-position layout (Layout 2) with a compact 57 mm length and 19 x 19 mm footprint saves panel space and simplifies harness routing in tight enclosures, supporting higher device density in automation cabinets. A straight plug orientation and sealing gland backshell simplify installation and ensure consistent sealing against ingress in harsh environments. With a 2000 mating cycle rating, this connector supports high-cycle production lines and robotics applications, delivering predictable lifetime performance. The operating range from -40 °C to 125 °C broadens its applicability to outdoor equipment, food-and-bev compliant facilities, and rugged mobile equipment. Gold plating and sealed backshell further enhance reliability, reducing maintenance frequency in challenging environments. Delivered with the connector, it reduces procurement lead times and ensures compatibility across the JMX series for scalable deployments.
