Eaton JMXFH1A08FCUDSA Push-Pull Connector - IP68
Part Number: JMXFH1A08FCUDSA
Quick Summary
Eaton JMXFH1A08FCUDSA Push-Pull Connector provides rugged, reliable connections for industrial automation and robotics. In harsh plants with dust, moisture, and frequent mating cycles, traditional connectors can fail or demand costly maintenance. This solution delivers IP68 sealing, RoHS and REACH compliance, and UL94 V0 flame resistance to meet tough regulatory demands. Designed for ease of integration, it pairs with Souriau JMX series ecosystems to simplify inventory and accelerate installation while supporting long-term operational efficiency. With a compact 57 mm length, eight gold-plated crimp contacts, and a 5 A rating, it suits space-constrained, high-reliability automation applications. This combination reduces downtime and supports scalable deployments across manufacturing lines, delivering measurable business value.
Product Information
Extended Description

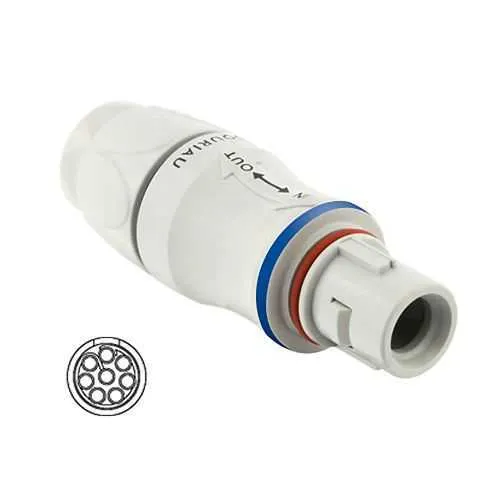

JMXFH1A08FCUDSA Eaton: Push-pull plastic IP68 plug, layout 1-08, female crimp contacts, keying A, blue color coding; JMXFH1A08FCUDSA
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1A08FCUDSA
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
5 A UL 5 A IEC
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Push-Pull coupling enables fast mate/demate and secure retention, cutting installation time on busy lines. This translates to lower labor costs and reduced tool wear in repetitive assembly tasks, making it ideal for robotics, machine tools, and packaging lines where rapid field servicing matters. IP68 sealing with a backshell sealing gland protects against dust and water ingress in washdown and outdoor environments, improving uptime and reducing maintenance cycles. Eight gold-plated crimp contacts ensure low contact resistance and corrosion resistance, delivering reliable signal integrity in dense panel layouts and high-vibration setups. The compact shell size, 57 mm length, and 19 mm width provide a space-efficient footprint suitable for cramped control panels while maintaining robust mating security for up to 2000 mating cycles. A 5 A current rating and a broad operating temperature range from -40 °C to 125 °C support outdoor equipment, food-and-bev processing lines, and rugged automation. The straight plug and sealing gland backshell streamline installation and maintenance, while onboard compatibility with the Souriau JMX family reduces spare-part variety and speeds field replacements. Gold-plated contacts in a socket (female) configuration further extend service life in harsh environments, delivering predictable performance over time.
Get a Quick Quote for a Eaton JMXFH1A08FCUDSA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1A08FCUDSA?
Enquire Now
FAQs
The JMXFH1A08FCUDSA uses a straight plug with a sealing gland backshell and 8 female crimp contacts, designed for Souriau JMX series ecosystems. It mates with corresponding JMX receptacles and supports panel-mounted installations in compact control enclosures. Its 57 mm length and 19 mm width help fit tight spaces while maintaining robust mechanical retention and electrical integrity.
IP68 protection ensures complete dust ingress exclusion and water immersion resistance under defined conditions, which is critical for washdown zones and outdoor equipment. Combined with RoHS/REACH compliance and UL94 V0 rating, the connector maintains signal integrity and safety in challenging industrial settings, reducing unexpected downtime and replacement costs.
Yes. The IP68-rated JMXFH1A08FCUDSA is built for outdoor and wet environments, with a sealing gland backshell and plastic shell that resist corrosion and moisture ingress. The -40 to 125 °C operating range accommodates varied climates and production processes, making it a reliable choice for outdoor machinery, food processing lines, and pharmaceutical packaging environments.
This connector satisfies RoHS and REACH environmental standards and features a UL94 V0 flammability rating. While CE marking specifics depend on regional requirements, the IP68 sealing, material selection, and environmental compliance align with common industrial safety and regulatory expectations for automated equipment.
The eight gold-plated crimp contacts and durable push-pull interface offer low contact resistance and extended service life in vibration-prone environments, reducing replacement parts and maintenance visits. With up to 2000 mating cycles and a compact footprint, downtime is minimized during installations or field servicing, delivering lower total cost of ownership over the equipment life cycle.
