Eaton JMXFH1B02FCUDSR Push-Pull Connector - IP68
Part Number: JMXFH1B02FCUDSR
Quick Summary
The Eaton Souriau JMX series plastic push-pull connector JMXFH1B02FCUDSR is engineered for demanding automation environments. Engineers often struggle with moisture ingress and unreliable mating in field installations; this connector addresses those challenges with a robust IP68 seal, keying B, and red color coding for quick identification. It meets IP68 sealing, RoHS and REACH compliance, and UL94 V0 flame rating, supporting safe operation and regulatory clearance. For procurement value, the design offers reliable field installation with a straight plug and backshell sealing gland, while delivering long-term maintenance savings through durable contacts and high mating life. This combination supports efficient, compliant wiring in industrial automation and control applications.
Product Information
Extended Description

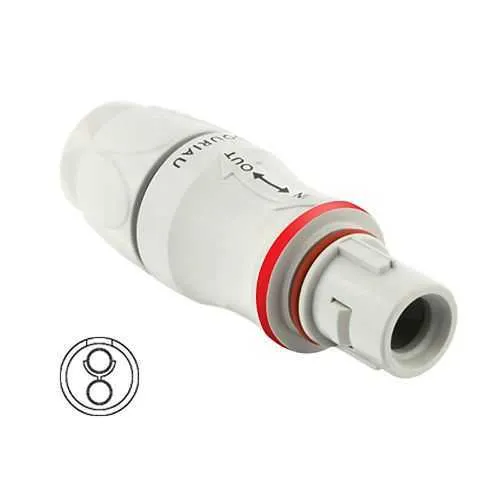

JMXFH1B02FCUDSR Eaton: Push-pull plastic IP68 plug, layout 1-02, female crimp contacts, keying B, red color coding; JMXFH1B02FCUDSR
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1B02FCUDSR
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A IEC 10 A UL
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Feature: IP68 sealing with Sealing Gland backshell and straight plug enables a dust-tight, waterproof connection in harsh environments. Business Impact: Reduces field failures and maintenance costs, improves uptime in outdoor and wet locations. Application: Automation equipment and robotic systems that operate in damp or washdown environments. Feature: Push-Pull coupling with 2-contact layout and gold-plated crimp contacts delivers quick, tool-free mating and low contact resistance. Business Impact: Accelerates installation, lowers torque requirements, and improves signal integrity in high-cycle networks. Application: Control cabinets, sensor arrays, and field devices requiring reliable power/signal paths. Feature: 10 A current rating and 2000 mating cycles support durable, high-reliability connections in dynamic environments. Business Impact: Extends service life, reduces replacement cycles, and lowers total cost of ownership. Application: Heavy-duty automation lines and machinery with frequent connector manipulation. Feature: Operating temperature range from -40 °C to 125 °C and PLASTIC shell provide wide thermal tolerance. Business Impact: Ensures consistent performance across varying climates and industrial heat loads. Application: Outdoor deploys, outdoor conveyors, and machinery in enclosed spaces. Feature: RoHS, REACH compliance and UL94 V0 flammability rating offer regulatory assurance. Business Impact: Enables use in regulated sectors and supports risk mitigation in safety-critical installations. Application: Automotive, food & beverage processing, and general industrial automation where compliance matters.
