Eaton JMXFH1B02FSUDSR Plastic Push-Pull Connector - IP68
Part Number: JMXFH1B02FSUDSR
Quick Summary
Eaton JMXFH1B02FSUDSR is a plastic push-pull connector designed for rugged power and signal interfaces in harsh industrial environments. Designers often struggle with ingress, sealing, and mis-mating in compact machinery; this device addresses those pain points with a reliable IP68-rated housing and a straight plug configuration. It carries RoHS compliance, UL94 V0 flammability ratings, and REACH registrations, supporting global safety and environmental standards. With a 57 mm body, 2 contacts, and gold-plated solder cups, it enables fast, secure connections while reducing maintenance and downtime. The combination of sealing performance, material choice, and proven mating cycles translates into lower lifecycle costs and easier automation deployments across diverse applications.
Product Information
Extended Description

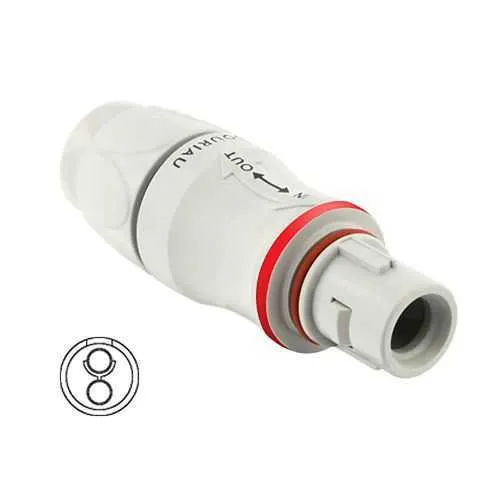

JMXFH1B02FSUDSR Eaton: Push-pull plastic IP68 plug, layout 1-02, female solder contacts, keying B, red color coding; JMXFH1B02FSUDSR
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1B02FSUDSR
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A IEC 10 A UL
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Feature → Business Impact → Application: The IP68-rated plastic push-pull connector provides superior ingress protection, directly reducing field failures in wet or dusty environments and improving mean time between outages for automated lines in packaging and material handling. Application: outdoor equipment, washdown areas, and manufacturing cells requiring dependable sealing and quick mating. Feature → Business Impact → Application: Gold-plated solder cup contacts ensure high-reliability electrical conductivity with corrosion resistance, delivering consistent signal integrity and power delivery in robotics and sensor networks. Application: machine control panels, servo drives, and distributed I/O stations. Feature → Business Impact → Application: 2000 mating cycles extend component life in high-traffic mating scenarios, lowering replacement costs in high-turnover automation setups. Application: conveyors, pick-and-place systems, and automated Assembly Cells. Feature → Business Impact → Application: RoHS, REACH, and UL94 V0 compliance minimize regulatory risk while simplifying supplier audits. Application: automotive assembly lines, process equipment, and industrial automation installations. Feature → Business Impact → Application: Sealing Gland backshell and straight plug design streamline installation and maintenance, enabling faster field service and reduced downtime. Application: panel-mounted connectors, control cabinets, and fieldbus interfaces. Feature → Business Impact → Application: Layout 2 with a compact shell size 1 supports dense connector matrices, improving panel density and cabling efficiency. Application: PLCs and distributed control architectures in limited-space cabinets.
