Eaton JMXFH1B02MCUDSR Plastic Push-Pull Connector - IP68
Part Number: JMXFH1B02MCUDSR
Quick Summary
The JMXFH1B02MCUDSR plastic push-pull connector delivers rugged, field-ready power and signal links for harsh industrial equipment. In tight layouts, mating reliability and environmental ingress are common pain points that cause downtime, miswiring, or failed seals. This connector carries IP68 sealing, UL94 V0 flammability, and RoHS/REACH compliance—critical certifications for factory automation and outdoor applications. Its lightweight plastic shell and gold-plated crimp contacts support maintenance-friendly wiring while reducing weight and cabling costs. With a 57 mm length and Straight plug backshell, it integrates smoothly into compact control panels and rugged machine assemblies, delivering dependable performance in industrial networking and power distribution applications.
Product Information
Extended Description

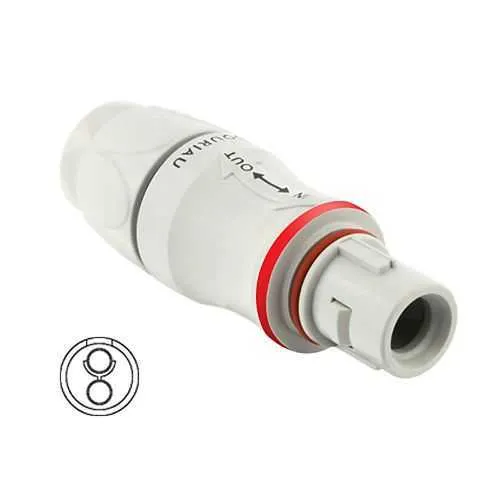

JMXFH1B02MCUDSR Eaton: Push-pull plastic IP68 plug, layout 1-02, male crimp contacts, keying B, red color coding; JMXFH1B02MCUDSR
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1B02MCUDSR
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A UL 10 A IEC
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Feature: Push-pull coupling with IP68 sealing and Sealing Gland backshell. Business Impact: Fast mating/demating with excellent ingress protection, reducing downtime and service costs. Application: Ideal for outdoor control cabinets and rugged automation equipment. > Feature: 10 A current rating on a two-contact plug. Business Impact: Supports common power and signal paths with reliable continuity and low resistance. Application: Machine builders and sensor networks in harsh environments. > Feature: Gold-plated crimp contacts in a compact 57 mm, 19x19 mm shell. Business Impact: Improves contact reliability and corrosion resistance while minimizing weight. Application: Field wiring in space-constrained panels and machinery. > Feature: 2000 mating cycles and UL94 V0 / RoHS/REACH compliance. Business Impact: Durable lifecycle with regulatory assurance, reducing maintenance cycles and risk of non-compliance. Application: Continuous production lines and packaging equipment across industries. > Feature: Straight plug, 2-position layout, and delivered with connector. Business Impact: Simplifies installation, replacement, and scalability in existing wiring schemes. Application: Retrofit projects and modular automation architectures.
