Eaton JMXFH1C02FSUDSV Plastic Push-Pull Connector - IP68
Part Number: JMXFH1C02FSUDSV
Quick Summary
The Eaton Souriau JMXFH1C02FSUDSV plastic push-pull connector is designed for rugged, IP68-rated interconnects in harsh industrial environments. Facilities teams often struggle with sealed connections that resist vibration, are difficult to service, or fail in wet, dusty plants. Key certifications and specs such as IP68 sealing, RoHS/REACH compliance, and UL94 V0 flammability help ensure safety, regulatory alignment, and long service life. This connector's 2-position layout and straight plug enable straightforward panel or cable assemblies, delivering value through easier installation and ongoing reliability.
Product Information
Extended Description

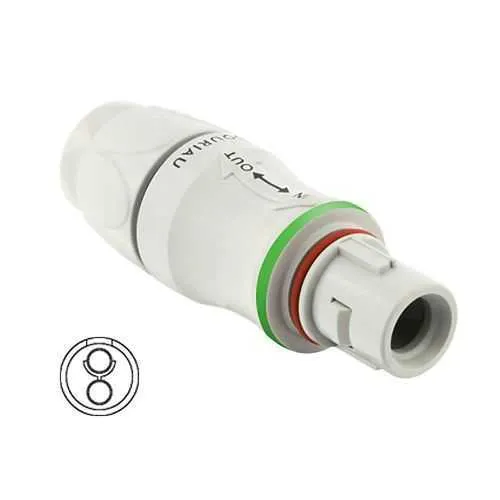

JMXFH1C02FSUDSV Eaton: Push-pull plastic IP68 plug, layout 1-02, female solder contacts, keying C, green color coding; JMXFH1C02FSUDSV
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1C02FSUDSV
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A IEC 10 A UL
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Feature: IP68 sealing with push-pull coupling and 57 mm length. Business Impact: Delivers rugged durability and quick engagement while protecting against water and dust ingress. Application: Use in outdoor equipment, wash-down environments, and harsh automation settings that demand reliable sealing and fast field mating. Feature: Gold-plated solder cup contacts with 2 contacts. Business Impact: Reduces contact resistance and improves corrosion resistance for long-term reliability. Application: Power and signal paths in motors, sensors, and controllers where performance margins matter. Feature: Backshell sealing gland and straight backshell angle. Business Impact: Simplifies installation and ensures consistent sealing across harsh environments. Application: Panel-mounted or cable-to-cable assemblies in conveyor and packaging lines. Feature: 10 A current rating with a 2000 mating cycle life. Business Impact: Supports steady performance with lower replacement costs and downtime. Application: Typical automation and process machinery requiring durable interconnects. Feature: Operating temperature range -40 °C to 125 °C. Business Impact: Maintains electrical integrity in extreme temperatures and reduces failure risk. Application: Outdoor or high-heat industrial zones where equipment heat cycling occurs. Feature: RoHS, REACH, and UL94 V0 compliance. Business Impact: Streamlines regulatory approvals and ensures safer material choices. Application: Medical-grade or food-grade lines aside, any protected industrial deployment demanding compliance.
Get a Quick Quote for a Eaton JMXFH1C02FSUDSV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1C02FSUDSV?
Enquire Now
FAQs
Yes. The JMXFH1C02FSUDSV is part of the Eaton Souriau JMX series and uses a straight plug with a sealing gland backshell. It mates with 2-contact receptacles designed for this layout, supporting panel or cable assemblies. For best results, pair it with compatible backshells and connectors from the same series to preserve IP68 sealing and performance.
Key specs include a 10 A current rating (IEC/UL), 2 contacts with gold-plated solder cups, IP68 protection, and a mating life of up to 2000 cycles. The operating temperature range is -40 °C to 125 °C, ensuring reliable operation across harsh environmental conditions common in automation and process equipment.
Ideal for industrial automation, robotics, packaging lines, and outdoor or wash-down equipment. Its IP68 sealing, push-pull coupling, and 2-position layout enable robust power and signal interconnects in harsh environments, including food processing, pharmaceuticals, and material handling where reliability and ease of maintenance are critical.
The JMXFH1C02FSUDSV meets RoHS and REACH requirements and carries UL94 V0 flammability ratings, providing regulatory assurance for safe, compliant installations. This reduces compliance risk in regulated markets and simplifies supplier qualification for OEMs and integrators working on global projects.
With IP68 sealing, 2000 mating cycles, and gold-plated contacts, this connector minimizes ingress-related failures and contact degradation, lowering maintenance downtime and replacement costs. Its compact 57 mm length and straight plug simplify installation, accelerating commissioning and reducing total cost of ownership in demanding automation environments.
