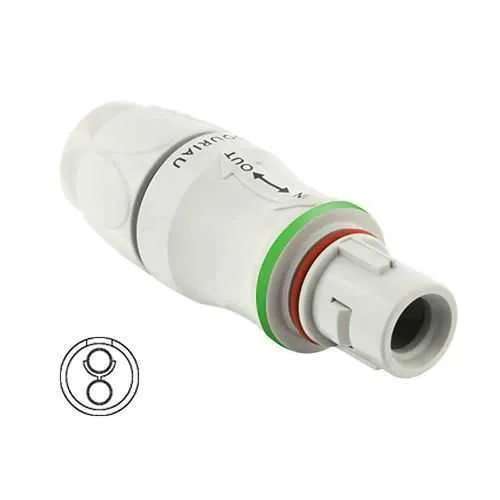

Eaton Souriau JMXFH1C02MCUDSV Push-Pull Connector - IP68
Part Number: JMXFH1C02MCUDSV
Quick Summary
Eaton Souriau JMXFH1C02MCUDSV is a plastic push-pull connector optimized for rugged industrial interconnects in harsh environments. Engineers often struggle with secure mating, moisture sealing, and maintaining performance across temperature swings. This connector delivers IP68 protection, RoHS and REACH compliance, and UL94 V0 flame rating, supporting long service life in automation applications. With a compact 2-position layout and gold-plated crimp contacts, it enables reliable field-installable connections while minimizing cabling footprint. Designed to mate with straight plug backshells and sealing glands, the unit, at 57 mm long, is suitable for factory floors, outdoor enclosures, and harsh field installations. Its small form factor and 57 mm length help minimize bulk while maintaining durability.
Product Information
Extended Description
JMXFH1C02MCUDSV Eaton: Push-pull plastic IP68 plug, layout 1-02, male crimp contacts, keying C, green color coding; JMXFH1C02MCUDSV
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1C02MCUDSV
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A UL 10 A IEC
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
IP68 sealing and a sealing gland backshell provide rugged ingress protection, reducing unplanned downtime in wet or dusty environments and enabling reliable outdoor or harsh-environment installations. The 2-position layout with gold-plated crimp contacts ensures signal integrity and long-term contact reliability, supporting 10 A current rating for compact power and control signals in compact equipment. The straight plug and backshell design simplify installation, improve alignment during mating, and reduce assembly time on crowded panels or enclosures. With a mating cycle specification of up to 2000 cycles, technicians gain confidence in repeatable connections for maintenance and rework, lowering lifecycle costs. Operating temp range from -40 °C to 125 °C makes it suitable for both refrigerated facilities and high-temperature machinery rooms, while RoHS and REACH compliance strengthen regulatory peace of mind. The JMX series compatibility, along with the option “Delivered with connector,” simplifies procurement and reduces inventory complexity on capital projects, supporting faster time-to-value for automation deployments.
Get a Quick Quote for a Eaton JMXFH1C02MCUDSV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1C02MCUDSV?
Enquire Now
FAQs
The JMXFH1C02MCUDSV uses a straight plug with a backshell sealing gland and delivers contact delivery unloaded, sized for a 2-position layout. Compatible with standard straight plug assemblies in the JMX series, it supports crimp gold-plated contacts and 57 mm length installations. When selecting cables, ensure RoHS/REACH compliance and maintain the 10 A current rating for reliable low-power to modest power signals in industrial control panels.
Key specs include a 10 A current rating, IP68 environmental protection, and a 2-contact configuration with gold-plated crimps. The connector supports a temperature range of -40 to 125 °C and up to 2000 mating cycles, which informs maintenance planning and lifecycle costs. The straight plug, sealing gland backshell, and layout 2 design simplify panel routing and mating alignment, reducing misalignment risk during field installation.
Yes. The IP68 rating, sealing gland backshell, and plastic shell make it suitable for outdoor cabinets, machine enclosures, and wash-down areas. The RoHS and REACH compliance further support use in regulated environments, while the -40 to 125 °C operating range accommodates both cold facilities and hot industrial spaces.
The JMXFH1C02MCUDSV features RoHS and REACH compliance, UL94 V0 flammability rating, and IP68 protection. These certifications ensure suitability for rigorous industrial environments, regulatory alignment for many manufacturing and automation projects, and safer operation in areas with potential flammable materials.
The 57 mm length and 2-position layout provide a compact footprint, enabling dense panel layouts and easier routing in crowded control cabinets. Gold-plated crimp contacts improve conductivity and reduce corrosion-related maintenance, lowering total cost of ownership. Durable mating up to 2000 cycles and quick-mate push-pull coupling shorten installation time and service intervals, delivering measurable ROI on automation projects.
