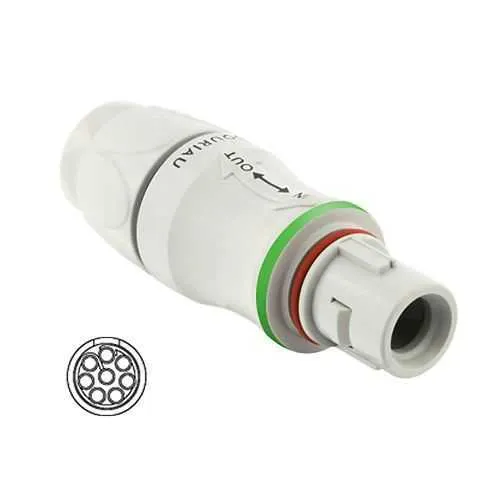

Eaton JMXFH1C08FSUDSV Plastic Push-Pull Connector - IP68
Part Number: JMXFH1C08FSUDSV
Quick Summary
Eaton Souriau JMXFH1C08FSUDSV Plastic Push-Pull Connector provides rugged, quick-connect power and signal interfaces in industrial equipment. Engineers often struggle to maintain ingress protection and reliable mating under vibration, temperature shifts, and harsh environments. With IP68 sealing, RoHS and REACH compliance, and a UL94 V0 flame rating, it meets tough industry standards. Its 8 contacts with gold-plated solder cups and up to 2000 mating cycles help reduce downtime and maintenance costs for automation panels, robotics, and packaging lines. This combination delivers reliable performance, easy installation, and long-term cost savings for demanding industrial applications.
Product Information
Extended Description
JMXFH1C08FSUDSV Eaton: Push-pull plastic IP68 plug, layout 1-08, female solder contacts, keying C, green color coding; JMXFH1C08FSUDSV
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1C08FSUDSV
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
5 A UL 5 A IEC
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
IP68-rated plastic backshell with a sealing gland and straight plug provides robust ingress protection against dust, water, and washdown exposure, reducing field repairs and warranty costs. This seal remains effective under vibration and temperature cycling, supporting continuous operation in harsh environments. Push-Pull coupling with keying C enables fast, correct mating, cutting assembly time and minimizing wiring errors, which translates to quicker service and less downtime on busy production lines. Eight gold-plated solder cup contacts deliver low contact resistance and strong corrosion resistance, ensuring stable power and signal paths for servo drives, sensors, and controllers in demanding automation systems. The connector is rated for 2000 mating cycles, extending lifecycle durability and enabling predictable maintenance planning to lower total cost of ownership. With a wide operating temperature range from -40 °C to 125 °C, it supports operation across extreme industrial environments, while the lightweight plastic shell and compact form factor simplify installation in tight enclosures and on mobile machinery. Overall, this solution delivers reliable performance, simplified installation, and improved uptime for OEMs and end users alike.
Get a Quick Quote for a Eaton JMXFH1C08FSUDSV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1C08FSUDSV?
Enquire Now
FAQs
Focus on alignment with the straight plug, proper mating with the sealing gland backshell, and ensuring the keying C is correctly engaged to avoid mis-mating. Use the IP68-rated seal to maintain ingress protection during panel installation and in washdown environments.
The connector provides 8 contacts with gold-plated solder cup terminations and a current rating of 5 A (UL/IEC). This arrangement supports reliable power and signal transfer for automation equipment and sensors.
Yes. It operates from -40 °C to 125 °C and carries IP68 protection, RoHS, and REACH compliance, making it suitable for demanding industrial, automotive, and outdoor installations.
It adheres to RoHS and REACH environmental standards and includes a UL94 V0 flammability rating, alongside IP68 sealing for rugged industrial use.
With 2000 mating cycles and gold-plated contacts, the connector delivers durable, low-maintenance performance that reduces downtime and replacement costs over the equipment lifecycle.
