Eaton JMXFH1D02FCUDSO Plastic Push-Pull Connector - IP68
Part Number: JMXFH1D02FCUDSO
Quick Summary
Eaton JMXFH1D02FCUDSO is a plastic push-pull connector designed for harsh industrial environments with IP68 sealing. You’re likely grappling with moisture ingress, vibration, and repeated mating cycles that degrade performance and raise maintenance costs in outdoor automation panels. This device delivers IP68 protection, RoHS compliance, and UL94 V-0 flammability, aligning with global safety and sustainability standards. For OEMs integrating Souriau JMX series components, it offers reliable mating, straightforward installation, and long service life, helping lower downtime and streamline panel builds while maintaining compact, sealed connectivity for demanding applications.
Product Information
Extended Description

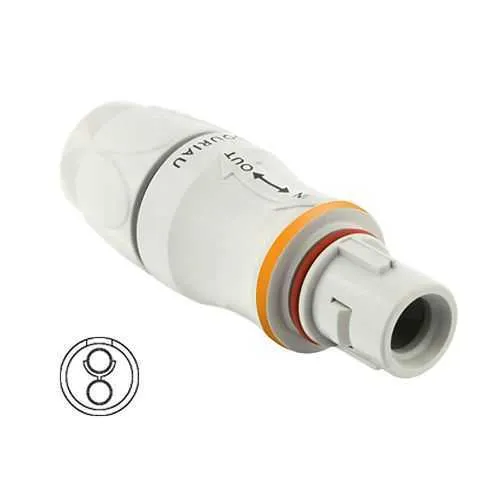

JMXFH1D02FCUDSO Eaton: Push-pull plastic IP68 plug, layout 1-02, female crimp contacts, keying D, orange color coding; JMXFH1D02FCUDSO
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1D02FCUDSO
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A UL 10 A IEC
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Feature → Business Impact → Application: IP68-rated plastic push-pull connector protects against water and dust ingress in outdoor and washdown environments, reducing seal-related failure and maintenance costs; Application: packaging lines, outdoor machinery, and field automation. Feature → Business Impact → Application: 57 mm length, 19 mm width, 19 mm height, and a compact 12 g form factor minimize panel footprint and weight, enabling tighter enclosures and easier routing in small control cabinets; Application: compact robotics and portable equipment. Feature → Business Impact → Application: 2-contact, gold-plated crimp contacts deliver low contact resistance and reliable power transfer, improving efficiency and uptime; Application: power and signal paths in automated systems. Feature → Business Impact → Application: 2000 mating cycles and straight plug with a sealing gland backshell ensure long-term reliability and quick field maintenance, reducing lifecycle costs; Application: high-cycle manufacturing lines and outdoor deployments. Feature → Business Impact → Application: operating from -40 °C to 125 °C with RoHS, REACH, and UL94 V-0 compliance provides broad ambient tolerance and regulatory peace of mind; Application: offshore, mining, and heavy industry installations.
Get a Quick Quote for a Eaton JMXFH1D02FCUDSO
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1D02FCUDSO?
Enquire Now
FAQs
The JMXFH1D02FCUDSO uses a straight plug with a sealing gland backshell, layout 2, and 57 mm length, designed to mate with standard Souriau JMX series receptacles. It ships as a plug with unloaded contacts, enabling you to select compatible crimp contacts for your cable assembly and achieve a secure, sealed panel connection.
This connector supports a 10 A current rating with two contacts and operates from -40 °C to 125 °C. The gold-plated crimp contacts ensure low contact resistance, suitable for power and signal paths in demanding automation environments.
Yes. The connector specifies RoHS compliance for restricted substances and UL94 V-0 flammability, providing safer material choices and regulatory alignment for machinery installed in diverse regions.
With a 2000 mating cycles rating and a Push-Pull coupling, the connector supports frequent connect/disconnect cycles while maintaining a reliable seal. Its compact 57 mm length and 12 g weight ease installation in tight spaces, reducing field maintenance time and equipment downtime.
Best for outdoor automation panels, rugged machinery, and mobile equipment, the JMXFH1D02FCUDSO provides IP68 protection, high-temperature tolerance, and robust electrical performance for harsh environments, delivering dependable power and signal connectivity in packaging, mining, and heavy industry applications.
