Eaton JMXFH1D04FSUDSO Souriau Push-Pull Connector - IP68
Part Number: JMXFH1D04FSUDSO
Quick Summary
Eaton Souriau JMX Push-Pull Connector is a rugged, high-reliability plastic connector that enables quick, secure field connections for harsh industrial environments. Its IP68 sealing protects against dust and immersion, reducing maintenance cycles in outdoor or wet locations. This model carries UL recognition, RoHS and REACH compliance, and a UL94 V0 flammability rating, underscoring safety and environmental responsibility. With a 4-position layout and 8 A current rating, it supports compact control panels and distributed I/O without compromising performance. For procurement and design teams, the combination of a 57 mm depth, 19x19 mm footprint, and 2000 mating cycles offers predictable life-cycle cost, simplified part numbers, and a robust supply chain.
Product Information
Extended Description

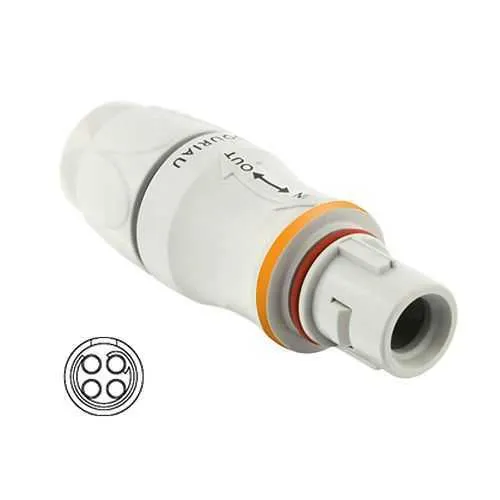

JMXFH1D04FSUDSO Eaton: Push-pull plastic IP68 plug, layout 1-04, female solder contacts, keying D, orange color coding; JMXFH1D04FSUDSO
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1D04FSUDSO
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
8 A IEC 8 A UL
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
4
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
4
Push-Pull coupling enables tool-free mating and unmating, speeding installation and service. This reduces labor time and downtime, boosting overall equipment effectiveness. Ideal for control panels, robotics, and outdoor equipment where rapid field servicing matters. IP68 sealing with a Sealing Gland backshell provides reliable protection against dust and water ingress. Longer service life in harsh environments reduces failure rates and maintenance costs. Suitable for outdoor enclosures, wash-down areas, and process plants where robust sealing matters. The 4-position layout with gold-plated solder cups ensures compact yet capable connections. This supports higher current carrying capacity and maintains signal integrity in tight panel spaces. Mating cycles of 2000 and a current rating of 8 A IEC/UL offer design margins and lower replacement costs. Operating temperature range -40 to 125 °C expands the usable environment, enabling fewer part variants. Delivered with connector reduces assembly steps and supply chain complexity.
Get a Quick Quote for a Eaton JMXFH1D04FSUDSO
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1D04FSUDSO?
Enquire Now
FAQs
The JMXFH1D04FSUDSO is a plug-type connector in the Souriau JMX family with four contacts arranged in a 4-position layout. It uses female socket contacts with gold plating and solder cup terminations for a compact, reliable interface in control panels and distributed I/O.
Yes. It features IP68 protection, a sealing gland backshell, and materials rated for extended exposure to dust and water. Operating temperature range -40 to 125 °C plus UL94 V0 flammability and RoHS/REACH compliance make it suitable for outdoor, wash-down, and harsh industrial settings.
Use the straight plug orientation with the Sealing Gland backshell for optimal sealing. The 57 mm depth and 19x19 mm footprint fit compact panels; ensure mating alignment is correct for the 4-contact configuration; the connector ships with the mating plug and supports quick mating due to push-pull coupling.
The connector carries IP68 sealing, UL94 V0 flammability, RoHS and REACH compliance, and 8 A current rating with UL/IEC standards. These specs support safety, environmental compliance, and dependable operation in regulated industrial environments.
With 2000 mating cycles and gold-plated contacts, the JMXFH1D04FSUDSO offers durable performance and reduced replacement frequency. The design supports quick field maintenance, lower downtime, and predictable lifecycle planning for automation projects.
