Eaton JMXFH1D08FSUDSO Push-Pull IP68 Plug - 8 Contacts
Part Number: JMXFH1D08FSUDSO
Quick Summary

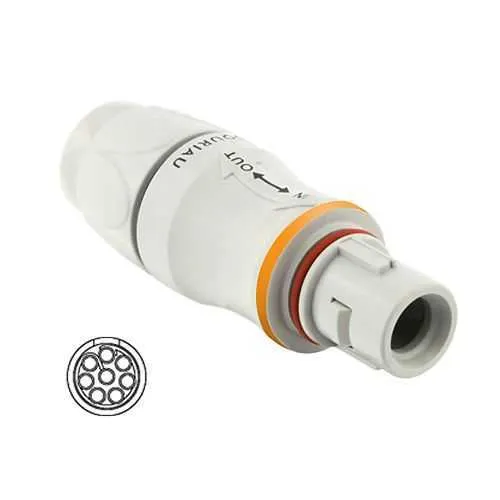

Eaton Souriau JMXFH1D08FSUDSO is a plastic push-pull connector designed for rugged industrial wiring applications. In real-world panels and machines, sealing leaks and unreliable mating drive costly downtime and safety concerns. This design delivers IP68 protection, RoHS and REACH compliance, and a UL94 V0 flammability rating to meet harsh-environment standards. Its compact 57 mm length and 19 mm width enable tight installations, while gold-plated solder cups ensure low contact resistance and long-term reliability. For engineers and procurement teams, the result is faster deployment, higher uptime, and regulator-ready connectivity across automation, robotics, and packaging lines.
Product Information
Extended Description
JMXFH1D08FSUDSO Eaton: Push-pull plastic IP68 plug, layout 1-08, female solder contacts, keying D, orange color coding; JMXFH1D08FSUDSO
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1D08FSUDSO
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
5 A IEC 5 A UL
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
This connector uses a Push-Pull coupling with IP68 sealing, enabling fast, tool-free mating and superior protection against water, dust, and washdown spray. The business impact is clear: faster installation, lower commissioning costs, and fewer field failures due to contamination or moisture ingress. It is well suited for automated lines, outdoor equipment, conveyors, and robotics where reliable mating under harsh conditions matters. With eight gold-plated solder cup contacts, the design delivers low contact resistance, corrosion resistance, and stable signal integrity across long cable runs. The 5 A current rating supports modest power and sensor actuators without overheating, while the compact 57 mm by 19 mm footprint eases panel integration, reducing harness complexity. Backshell features include Straight mating and Sealing Gland backshell type, streamlining panel mounting and sealing at the entry point. The 2000 mating cycles specification translates into predictable lifecycle performance for high-cycle automation equipment, minimizing unexpected replacements and maintenance interrupts. The operating temperature range of -40 to 125 °C broadens application potential across automotive, food-and-beverage, and process industries that experience thermal extremes or outdoor exposure. RoHS and REACH compliance, along with UL94 V0 flammability, help meet stringent regulatory demands and customer requirements for safe electrical installations. Delivery with connector simplifies stocking, while compatibility with Souriau JMX components ensures broader ecosystem integration. Industry users benefit from consistent performance in environments with splash, humidity, or dust, enabling longer machine uptime and safer, compliant connections in demanding industrial settings.
Get a Quick Quote for a Eaton JMXFH1D08FSUDSO
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1D08FSUDSO?
Enquire Now
FAQs
The JMXFH1D08FSUDSO is a straight plug in the JMX family with a sealing gland backshell, designed for seamless mating with compatible Souriau JMX series receptacles. Its 8-contact, gold-plated solder cup configuration and IP68 sealing support reliable mating in harsh environments. Delivered with connector and 57×19 mm compact footprint simplify panel integration and reduce integration time during installation and field upgrades.
Key specs include 8 contacts with gold plating, 5 A current rating (IEC and UL), IP68 protection, and a straight plug with a Sealing Gland backshell. The housing is plastic, shell size 1, and mating cycles are rated at 2000. Operating temperature ranges from -40 °C to 125 °C, making it suitable for extreme industrial environments and demanding automation applications.
Yes. The connector carries IP68 ingress protection, which provides excellent resistance to dust and water ingress even in washdown or outdoor conditions. Combined with RoHS/REACH compliance and UL94 V0 flammability, this makes it well-suited for outdoor equipment, conveyors, and processing lines where reliable performance and regulatory compliance matter.
The product is RoHS and REACH compliant and rated UL94 V0 for flame retardancy, with IP68 sealing for ingress protection. These certifications matter because they ensure reduced hazardous substances, safer electrical installations, and suitability for industries with stringent regulatory requirements, such as automotive, food-and-beverage, and packaging machinery.
The 2000 mating cycles rating supports high-cycle automation with predictable wear, reducing unexpected replacements and maintenance downtime. Gold-plated contacts improve longevity by resisting corrosion and maintaining signal integrity, contributing to longer uptime, fewer reworks, and a lower total cost of ownership in production lines and robotic systems.
