Eaton JMXFH1E02FSUDSJ Plastic push-pull connector - IP68
Part Number: JMXFH1E02FSUDSJ
Quick Summary
Eaton JMXFH1E02FSUDSJ plastic push-pull connector provides rugged, IP68-rated sealing for machine wiring and control panels. Many installations struggle with moisture ingress and vibration-driven intermittent connections, causing unplanned downtime. Key certifications—IP68, RoHS, REACH, and UL94 V0—reflect a safety- and compliance-focused design for global deployments. Beyond sealing, the 2-contact layout with gold-plated solder cups delivers reliable power and signal transfer, while compact dimensions simplify panel fit.
Product Information
Extended Description

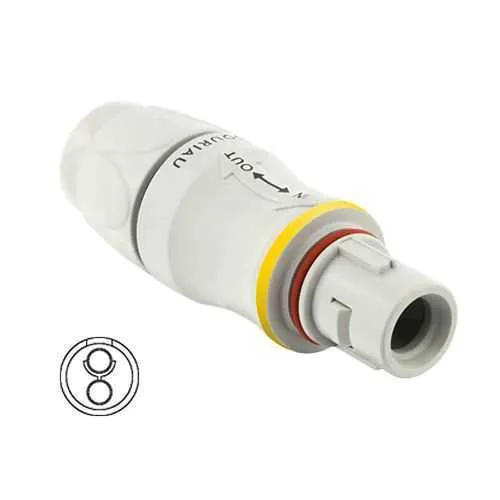

JMXFH1E02FSUDSJ Eaton: Push-pull plastic IP68 plug, layout 1-02, female solder contacts, keying E, yellow color coding; JMXFH1E02FSUDSJ
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1E02FSUDSJ
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A UL 10 A IEC
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Feature → The IP68 sealing and push-pull coupling provide dependable protection against dust and water ingress, reducing downtime and maintenance costs in harsh environments. Business Impact → Lower total cost of ownership through extended connector life and less preventive maintenance; Application → Conveyor systems, material handling, and robotics interfaces in rugged automation settings. Feature → Gold-plated solder cups and a 2-contact socket arrangement deliver low contact resistance and stable electrical performance. Business Impact → Improved current transfer and signal integrity for critical control circuits; Application → Machine wiring and control panel connections where reliability matters. Feature → Sealing gland backshell with a straight back entrance and straight plug design enables straightforward mating and robust sealing. Business Impact → Faster field installation with fewer alignment issues and enhanced ingress protection; Application → Tight spaces in automation equipment and enclosures. Feature → Compact shell (plastic, 57 mm length; 19 mm width/height) and 12 g weight support easy deployment across multiple panels. Business Impact → Reduced hardware footprint and inventory complexity; Application → 2-position power/signal assemblies in compact automation modules. Feature → Wide environmental and safety compliance (RoHS, REACH, UL94 V0) ensures global deployments without requalification. Business Impact → Simplified regulatory approval and safer, compliant designs; Application → International manufacturing lines and OEM equipment.
