Eaton JMXFH1E02MCUDSJ Plastic Push-Pull Connector - IP68
Part Number: JMXFH1E02MCUDSJ
Quick Summary
Eaton Souriau JMX series plastic push-pull connector delivers reliable, sealed connections for harsh industrial environments. When space is tight and downtime is costly, this compact plug simplifies mating and reduces field rework through quick, tool-free engagement. The design supports RoHS and REACH environmental standards with a UL94 V0 flame rating and IP68 protection, ensuring ingress resistance. Its 2-position layout with yellow-keying enhances wiring clarity, enabling faster panel builds and easier maintenance in control cabinets and automation equipment.
Product Information
Extended Description

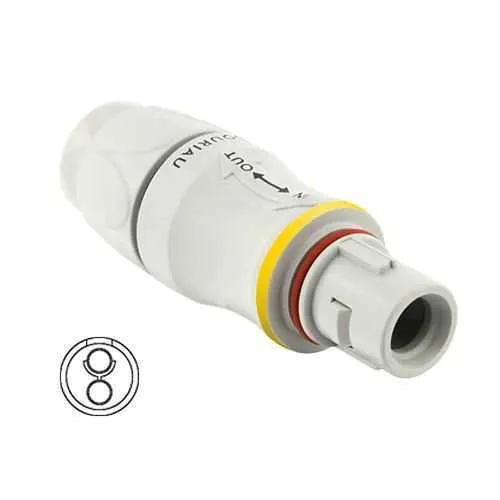

JMXFH1E02MCUDSJ Eaton: Push-pull plastic IP68 plug, layout 1-02, male crimp contacts, keying E, yellow color coding; JMXFH1E02MCUDSJ
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1E02MCUDSJ
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A UL 10 A IEC
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Feature → Business Impact → Application: The IP68 rated sealing gland backshell significantly reduces moisture ingress, decreasing console downtime in washdown environments such as food and beverage packaging lines and outdoor machinery. This translates to higher uptime and lower maintenance costs when paired with the plastic shell and straight plug design for tight installations. Feature → Business Impact → Application: Push-Pull coupling delivers quick mating and unmated reliability, cutting installation time by minutes per connection and reducing torque-related wear, ideal for robotics arms and conveyor systems where repeated connect/disconnect cycles occur. Feature → Business Impact → Application: Gold-plated crimp contacts provide superior conductivity and corrosion resistance for long-term signal integrity in control panels and industrial ethernet or CANbus networks. Feature → Business Impact → Application: Layout 2 with a compact footprint (57 mm length, 19 mm width/height) enables dense panel layouts and easier cable management in machinery where space is at a premium. Feature → Business Impact → Application: Operating temperature range of -40 to 125 °C and 2000 mating cycles offer reliability in demanding environments, supporting equipment designed for automotive, off-highway, and heavy industry automation. Feature → Business Impact → Application: RoHS, REACH environmental compliance and IP68 rating ensure regulatory alignment and safe operation in regulated markets, reducing compliance risk for multi-site deployments.
