Eaton JMXFH1E02MSUDSJ Push-Pull Connector - IP68
Part Number: JMXFH1E02MSUDSJ
Quick Summary
Eaton Souriau JMX series push-pull connector provides sealed, reliable connections for harsh industrial environments. Engineers often struggle with moisture ingress and difficult mating in tight spaces, which can drive downtime and maintenance costs. This device meets IP68 sealing and RoHS/REACH compliance, with a UL94 V0 flammability rating for added safety. By combining quick, tool-free mating with rugged construction, it delivers predictable performance in control panels, robotics, and outdoor equipment, while supporting straightforward field replacement and long-term cost savings. The solution aligns with common industry terms such as Souriau JMX connector, IP68 plug, and Solder Cup contacts, reinforcing a clear value proposition for procurement and engineering teams seeking durable, compliant connectivity.
Product Information
Extended Description

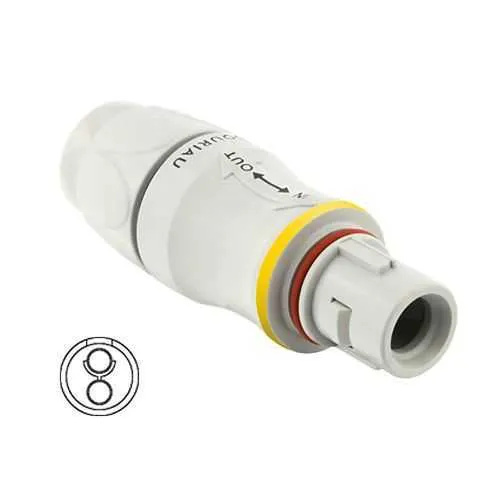

JMXFH1E02MSUDSJ Eaton: Push-pull plastic IP68 plug, layout 1-02, male solder contacts, keying E, yellow color coding; JMXFH1E02MSUDSJ
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1E02MSUDSJ
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A UL 10 A IEC
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Feature IP68 sealing and Push-Pull coupling → Business Impact Ensured ingress protection up to submersion, reducing field failures and warranty costs → Application Ideal for outdoor machinery, water-resistant panels, and harsh-environment controls. Feature Gold-plated Solder Cup contacts → Business Impact Improves corrosion resistance and signal integrity, extending connector life in challenging environments → Application Critical for high-reliability control circuits and sensor networks. Feature Straight Plug with Sealing Gland backshell → Business Impact Facilitates straightforward installation and robust environmental sealing, lowering labor time and rework → Application Suitable for panel mounting and cable harnesses in tight spaces. Feature Layout 2 with 2 contacts and 10 A rating (UL/IEC) → Business Impact Supports compact, yet capable power and signal distribution, reducing part count → Application Used in compact automation racks and control enclosures. Feature 2000 mating cycles → Business Impact Improves total cost of ownership by extending service life and reducing replacement cycles → Application Maintenance-friendly for high-cycle industrial equipment. Feature Operating range -40 °C to 125 °C → Business Impact Enables operation across extreme environments, increasing uptime and versatility → Application Automotive, outdoor machinery, and harsh manufacturing floors.
