Eaton JMXFH1E06FCUDSJ Plastic Push-Pull Connector - IP68
Part Number: JMXFH1E06FCUDSJ
Quick Summary
Eaton Souriau JMX series plastic push-pull connector provides robust electrical coupling for harsh industrial machinery. In challenging environments, moisture ingress and the need for quick, reliable mating cycles slow projects and raise maintenance costs. It delivers IP68 sealing, UL94 V0 flammability, and RoHS/REACH compliance, supporting safety and sustainability requirements. For designers and buyers, the sealed, easy-to-install design reduces field labor and lifecycle costs, while ensuring reliable 6 A operation. The JMX family’s 6-position layout with a straight plug and keying E simplifies installation and reduces assembly errors, helping projects stay on time and under budget. This makes it a practical choice for industrial automation and field service operations.
Product Information
Extended Description

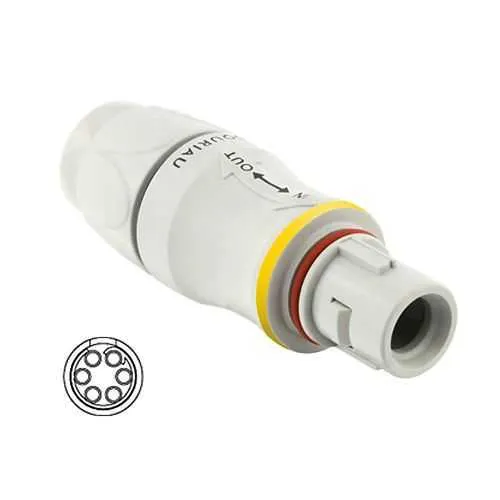

JMXFH1E06FCUDSJ Eaton: Push-pull plastic IP68 plug, layout 1-06, female crimp contacts, keying E, yellow color coding; JMXFH1E06FCUDSJ
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1E06FCUDSJ
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
6 A UL 6 A IEC
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Layout
6
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
IP68 sealed backshell with Sealing Gland and a straight plug supports reliable operation in washdown and outdoor environments. This environmental protection reduces ingress-related downtime and maintenance costs, making it ideal for conveyors, outdoor robotics, and rugged manufacturing equipment. The 57 mm length and compact 19x19 mm footprint, combined with a light 12 g weight, simplify enclosure design and installation in space-constrained panels, improving overall system integration. Six-position layout with crimp socket contacts and gold plating delivers low contact resistance and high conductivity, enabling stable signal and power paths for sensors, actuators, and I/O blocks. This translates to fewer field faults and longer intervals between service, lowering lifecycle costs in automation projects that demand high reliability. Push-Pull coupling with keying E enables fast, tool-free mating while ensuring correct orientation, reducing installation time and error rates on production lines and maintenance bays. With up to 2000 mating cycles, the connector supports high-cycle interfaces such as robotics, CNC modules, and automated gripping systems, delivering consistent performance through many production shifts. UL94 V0 flammability, RoHS, and REACH compliance confirm material and process safety, sustainability, and regulatory readiness across diverse geographies. The backshell type Sealing Gland and IP68 rating further protect the interface in harsh environments, supporting compliant installations and long-term reliability in industrial automation.
Get a Quick Quote for a Eaton JMXFH1E06FCUDSJ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1E06FCUDSJ?
Enquire Now
FAQs
To install, align the straight plug with the socket, ensure the keying E is oriented correctly, and press to mate. Use the sealing gland backshell for IP68 protection and verify crimped gold-plated contacts are fully seated. The 57 mm length fits compact enclosures, and the 6-contact layout supports a full channel of signals or power for automation modules.
This connector supports up to 2000 mating cycles and a current rating of 6 A (UL and IEC). These specifications translate to long life in high-cycle interfaces such as robotic grippers, sensor arrays, and motor feedback lines, reducing replacement frequency and maintenance costs.
Yes. It is IP68 rated with a Sealing Gland backshell and a plastic housing designed to resist moisture ingress and dust. This makes it well-suited for conveyors, outdoor machinery, and washdown areas where reliable connectivity is essential.
The connector complies with UL94 V0 flammability, RoHS, and REACH, ensuring fire resistance and restricted hazardous substances compliance. These certifications support safety audits, regulatory conformity across regions, and sustainability goals in modern automation projects.
The combination of IP68 sealing, high mating cycle life, and gold-plated contacts reduces corrosion risk and contact degradation, leading to fewer field faults and longer intervals between maintenance. The quick-mate Push-Pull coupling speeds assemblies and changeovers, delivering lower labor costs and improved overall equipment effectiveness (OEE) in production lines.
