Eaton JMXFH1E06FSUDSJ Plastic Push-Pull Connector - IP68
Part Number: JMXFH1E06FSUDSJ
Quick Summary
The Eaton Souriau JMX series plastic push-pull connector delivers fast, secure connections for rugged industrial equipment. In harsh environments, ingress, corrosion, or difficult mating can slow production and raise maintenance costs. With IP68 sealing, RoHS and REACH compliance, and UL94 V0 flame resistance, this connector meets demanding safety and sustainability standards. Its compact 57 mm length and 19 mm square profile fit tight enclosures, while gold-plated solder-cup contacts ensure dependable signal integrity across cycles. Designed for 6 A load, up to 2000 mating cycles, and a straight plug with a Sealing Gland backshell, it offers a robust, install-friendly solution for automation and machine-building projects.
Product Information
Extended Description

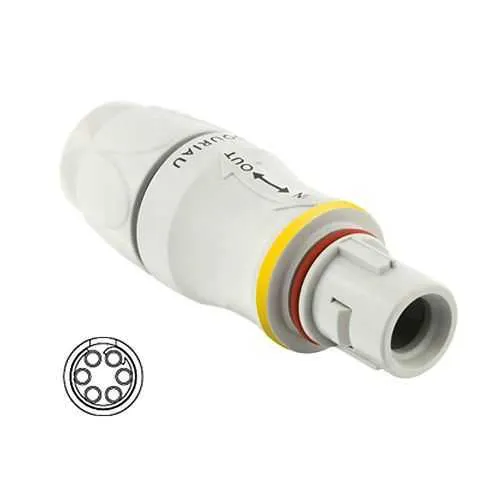

JMXFH1E06FSUDSJ Eaton: Push-pull plastic IP68 plug, layout 1-06, female solder contacts, keying E, yellow color coding; JMXFH1E06FSUDSJ
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1E06FSUDSJ
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
6 A UL 6 A IEC
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
6
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
6
Feature: Push-Pull coupling with a Sealing Gland backshell and IP68 protection. Business Impact: Quick, tool-free mating that resists water and dust ingress, reducing downtime and maintenance costs. Application: Ideal for robotics arms, conveyors, and outdoor equipment in harsh production environments. Feature: 6-position layout with six gold-plated solder cup contacts. Business Impact: Efficient power and signal routing in a compact shell, enabling cleaner wiring and better current handling. Application: Control panels and servo drives where space is at a premium. Feature: Gold-plated solder cup contacts. Business Impact: Lower contact resistance and improved longevity across up to 2000 mating cycles. Application: Sensors, actuators, and fieldbus interfaces requiring reliable connectivity. Feature: Operating temperature range -40 °C to 125 °C. Business Impact: Maintains performance in extreme factory and outdoor environments, reducing failure risk. Application: Automation lines, robotics, and process equipment with wide ambient swings. Feature: RoHS, REACH compliance and UL94 V0 flame rating. Business Impact: Regulatory alignment and safer materials simplify procurement and enhance safety profiles. Application: Regulated industries such as packaging, automation, and machinery.
Get a Quick Quote for a Eaton JMXFH1E06FSUDSJ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1E06FSUDSJ?
Enquire Now
FAQs
Consider using the Sealing Gland backshell to maximize IP68 protection and ensure proper sealing. Plan for a straight plug orientation and allow clearance for mating while maintaining enclosure integrity. With 57 mm length and 19 mm width/height, verify panel cutouts and mounting screws to prevent stress on the solder cups during mating cycles.
The connector provides a 6 A current rating (UL 6 A IEC) with six gold-plated solder cup contacts. It is a socket (female) configuration in a 6-position layout, designed for reliable low-resistance connections across up to 2000 mating cycles in demanding equipment.
Yes, it is IP68-rated when mated with the appropriate Sealing Gland backshell. This means robust protection against water and dust ingress in continuous immersion or harsh washdown scenarios, ideal for outdoor, automotive, or industrial automation applications.
It complies with RoHS and REACH, and carries a UL94 V0 flammability rating for flame retardancy. These certifications simplify compliance reporting, reduce regulatory risk, and improve safety in regulated industries such as food processing, packaging, and industrial automation.
The combination of IP68 sealing, gold-plated contacts, and 2000 mating cycles reduces maintenance downtime and replacement costs. Its compact size and reliable contacts improve line uptime, while the 6 A rating supports efficient power and signal performance in control panels and robotics.
