Eaton JMXFH1E10MSUDSJ Plastic Push-Pull Connector - IP68
Part Number: JMXFH1E10MSUDSJ
Quick Summary
JMXFH1E10MSUDSJ plastic push-pull connector from Eaton offers quick, secure power and signal connections for industrial automation. The challenge for engineers is delivering reliable sealing and fast field assembly in crowded control panels without downtime. This connector family delivers IP68 protection alongside RoHS, REACH, and UL94 V0 compliance, providing robust safety and regulatory peace of mind. With a compact 57 mm length and a 10-position layout, it supports dense wiring while enabling scalable automation. Users benefit from consistent performance, reduced maintenance, and faster commissioning in harsh environments, translating to lower total cost of ownership.
Product Information
Extended Description

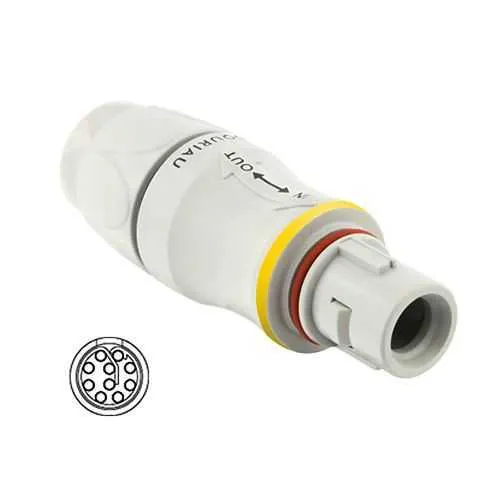

JMXFH1E10MSUDSJ Eaton: Push-pull plastic IP68 plug, layout 1-10, male solder contacts, keying E, yellow color coding; JMXFH1E10MSUDSJ
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1E10MSUDSJ
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
2.5 A IEC 2.5 A UL
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Feature: 10-position layout and straight plug design; Business Impact: enables dense interconnects and easier harness routing in control cabinets; Application: robotics, CNC machines, and automation panels. Feature: IP68 rated plastic backshell with sealing gland; Business Impact: protects against moisture, dust, and contamination, lowering field failure rates; Application: outdoor or washdown environments. Feature: Gold-plated solder cup contacts with 2.5 A rating; Business Impact: reliable low-resistance connections and longer contact life, reducing rework; Application: power and signal paths in high-cycle applications. Feature: Layout 1-10 with a 57 mm length and 19x19 mm footprint; Business Impact: compact footprint supports smaller enclosures and easier installation; Application: tight-machinery panels and distributed controls. Feature: Mating cycles up to 2000 and operating temperature -40 to 125 °C; Business Impact: proven durability and wide-temperature performance, minimizing downtime in variable environments; Application: automotive, food-processing, and industrial automation.
