Eaton JMXFH1G02FCUDSU Push-Pull Plastic Connector - IP68
Part Number: JMXFH1G02FCUDSU
Quick Summary
The Eaton JMXFH1G02FCUDSU is a plastic push-pull connector for rugged field wiring in industrial automation. Engineers often struggle with moisture ingress, debris, and downtime when connecting in harsh environments; a robust IP68 solution helps mitigate these risks. This connector lineup emphasizes protection standards like IP68, RoHS and REACH compliance, plus UL94 V0 flammability ratings to reduce fire risk in demanding applications. By combining reliable gold-plated contacts with a compact, lightweight shell, it delivers durable signal and power transmission without sacrificing installation speed. For integrators, the result is safer, faster assembly and lower lifecycle costs in wiring and connectivity ecosystems.
Product Information
Extended Description

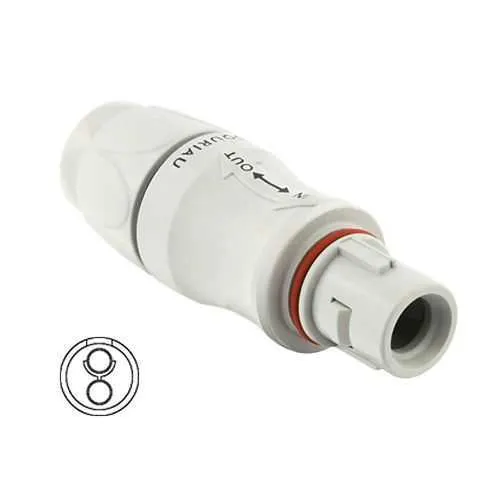

JMXFH1G02FCUDSU Eaton: Push-pull plastic IP68 plug, layout 1-02, female crimp contacts, keying G, without color coding; JMXFH1G02FCUDSU
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1G02FCUDSU
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A IEC 10 A UL
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Push-Pull coupling reduces mating time and tool requirements, boosting installation speed and minimizing отказ due to adapters or screws. This directly improves project timelines and maintenance windows in manufacturing lines. The IP68 sealing gland backshell provides reliable moisture protection in wet or dusty environments, translating to fewer field failures and longer service intervals. Gold-plated crimp contacts deliver consistent, low-resistance connections that support 10 A current rating, improving electrical performance and reducing signal integrity issues in automation panels. The straight plug, plastic shell, and compact 57 mm length optimize space in crowded enclosures, enabling easier routing and higher-density terminations. With 2000 mating cycles and wide operating temperature from -40 to 125 °C, the solution minimizes replacement costs and supports rugged, long-life deployments in robotics and packaging lines. Compatibility with Souriau JMX series ensures scalable upgrades without rework, while RoHS, REACH, and UL94 V0 certifications help meet global compliance and risk management needs.
