Eaton Souriau JMX push-pull connector JMXFH1G02MCUDSU IP68
Part Number: JMXFH1G02MCUDSU
Quick Summary
The Eaton Souriau JMX push-pull connector delivers robust, IP68-rated connectivity for harsh-environment machinery and automation panels. Engineers often struggle with water ingress, corrosion, and the time sunk into line-uping and mating the wrong connector during maintenance. This series delivers RoHS and REACH compliance, UL94 V0 flammability, and a long lifecycle with 2000 mating cycles, addressing reliability and regulatory requirements. With a compact 57 mm length, 19 mm width, 19 mm height, and gold-plated crimps, it streamlines panel layouts and reduces maintenance cycles in the field. Ideal for robotics, packaging lines, and industrial control systems, it supports fast commissioning, predictable performance, and lower total cost of ownership.
Product Information
Extended Description

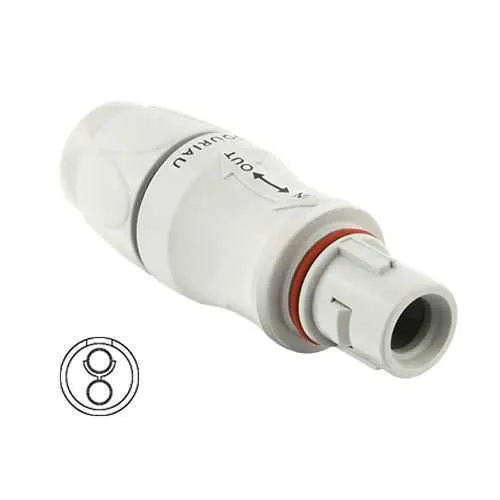

JMXFH1G02MCUDSU Eaton: Push-pull plastic IP68 plug, layout 1-02, male crimp contacts, keying G, without color coding; JMXFH1G02MCUDSU
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1G02MCUDSU
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A UL 10 A IEC
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Feature → The push-pull coupling with IP68 sealing provides a fast, secure connection in dusty and wet environments. Business impact → Reduces tool time, mis-mating and maintenance downtime, boosting line uptime. Application → Suitable for conveyors, outdoor equipment, and robotic workstations where reliable field connectivity is critical.\n\nFeature → Gold-plated, crimp contacts in a 2-pin layout with a straight plug. Business impact → Improves contact reliability and corrosion resistance, extending service life in vibration-prone applications. Application → Control panels, machine interfaces, and sensing circuits requiring stable electrical contact.\n\nFeature → Sealing gland backshell and straight plug orientation streamline enclosure integration. Business impact → Easier cabling and faster installations with predictable mating alignment. Application → Machine control cabinets and equipment racks in industrial automation.\n\nFeature → 10 A current rating and operating temperature range from -40 °C to 125 °C. Business impact → Supports heavy-duty applications with wide ambient conditions, reducing the need for multiple parts. Application → Industrial automation, robotics, and process machinery.\n\nFeature → 2000 mating cycles and RoHS/REACH/UL94 V0 compliance. Business impact → Delivers durable performance and regulatory certainty, lowering total cost of ownership over the product life. Application → Any long-life connector requirement in safety-critical equipment.
