Eaton JMXFH1G02MSUDSU Plug – IP68 Push-Pull Connector
Part Number: JMXFH1G02MSUDSU
Quick Summary
Eaton Souriau JMX series plastic push-pull connector provides fast, secure power connections for rugged industrial equipment. Users often struggle with sealing integrity and downtime caused by unreliable mating in harsh environments. IP68 sealing, UL94 V0 flammability, and RoHS/REACH compliance ensure dependable performance across outdoor machinery and heavy automation lines. With a 10 A rating, 2000 mating cycles, and a compact 57 mm length, it installs quickly in tight control panels. Designed for plug-and-play integration within the JMX ecosystem, it helps machine builders reduce maintenance costs while improving uptime and overall equipment efficiency.
Product Information
Extended Description

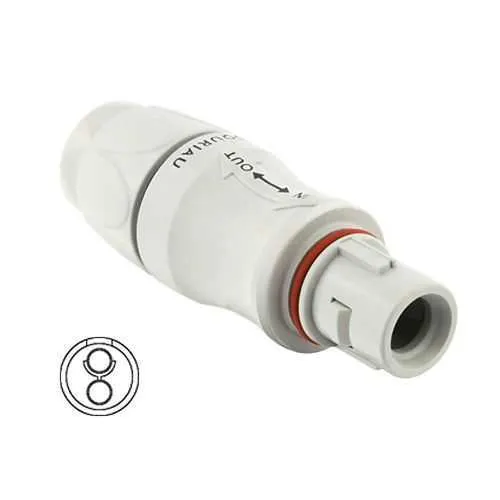

JMXFH1G02MSUDSU Eaton: Push-pull plastic IP68 plug, layout 1-02, male solder contacts, keying G, without color coding; JMXFH1G02MSUDSU
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1G02MSUDSU
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
10 A UL 10 A IEC
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
2
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
2
Feature → Business Impact → Application: Push-pull coupling and straight plug design enable rapid, tool-free mating, reducing installation time and field service downtime for automation panels and control enclosures. This supports faster commissioning of machines on packaging lines and material handling systems. Feature → Application: IP68 sealing with backshell sealing gland protects against dust and water ingress, increasing reliability in outdoor or washdown environments and conveyor systems. Feature → Business Impact: Gold-plated contacts and solder cup contact type offer low contact resistance and robust solder joints, reducing maintenance intervals and voltage drop in high-current feeds. Feature → Application: 10 A current rating and layout 2 support compact, two-conductor circuits in compact control interfaces without compromising performance. Feature → Business Impact: 2000 mating cycles and operating range -40 to 125 °C deliver long service life in demanding industrial settings, lowering replacement costs. Feature → Application: Delivered with connector and straight plug orientation simplify panel design, cable routing, and retrofit projects in existing Souriau JMX architectures. Feature → Compliance & Risk Reduction: UL94 V0, RoHS, and REACH align with regulatory requirements, easing supplier qualification and certification for automotive, packaging, and robotics programs.
Get a Quick Quote for a Eaton JMXFH1G02MSUDSU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1G02MSUDSU?
Enquire Now
FAQs
The connector uses a straight plug with a sealing gland backshell, designed for panel mounting and easy cable termination. It features a 57 mm length, 19 mm width and height, and a 2-pin configuration with gold-plated solder cups, making it straightforward to integrate into existing Souriau JMX layouts and compatible harnesses.
This plug offers a 10 A current rating (UL and IEC), with 2 contacts using gold-plated solder cups for minimal resistance. Its IP68 rating provides high ingress protection, while the 2000 mating cycles specification supports reliable, repetitive connections in demanding automation environments.
Yes. The device is IP68 rated and compliant with UL94 V0 flammability, RoHS, and REACH. Its operating temperature range of -40 °C to 125 °C makes it suitable for outdoor installations, washdown areas, and high-temperature equipment bays common in manufacturing and logistics sectors.
Ideal for industrial automation, robotics, and heavy machinery that require reliable, sealed power connections. The layout 2, straight plug, and backshell sealing gland support compact control panels and rugged environmental exposure, making it well-suited for conveyors, packaging lines, and outdoor equipment housing.
With 2000 mating cycles, high reliability from gold-plated contacts, and robust ingress protection, downtime and maintenance costs are reduced. The ease of installation and regulatory compliance (RoHS/REACH) also streamline procurement and qualifying processes, delivering lower total cost of ownership over equipment lifecycles.
