Eaton JMXFH1G08FSUDSU plastic IP68 - JMX push-pull connector
Part Number: JMXFH1G08FSUDSU
Quick Summary
JMXFH1G08FSUDSU is an Eaton Souriau JMX series plastic push-pull connector designed for rugged field wiring in industrial machinery. Engineers often contend with ingress, corrosion, and unreliable connections in harsh environments; this solution mitigates those issues with a robust IP68 seal, gold-plated solder contacts, and a sealing backshell. The design adheres to RoHS and REACH requirements while offering UL94 V-0 flammability protection for safe integration in control panels. With a compact 57 mm length and 19 mm width, it fits tight enclosures without compromising performance. By delivering a reliable 5 A rating and 2000 mating cycles, the solution supports long-term uptime and predictable maintenance costs for automation, robotics, and machine-building projects.
Product Information
Extended Description

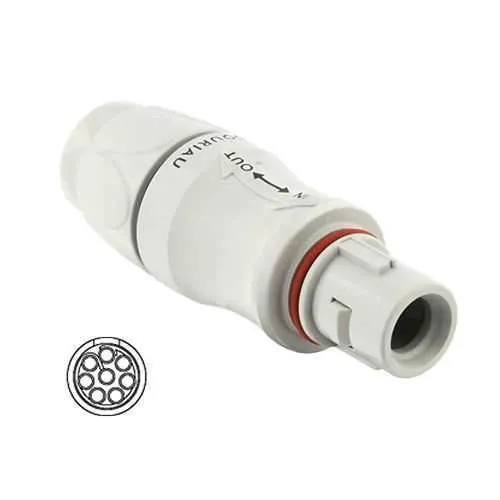

JMXFH1G08FSUDSU Eaton: Push-pull plastic IP68 plug, layout 1-08, female solder contacts, keying G, without color coding; JMXFH1G08FSUDSU
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1G08FSUDSU
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
5 A IEC 5 A UL
Environmental conditions
RoHS Flammability rating UL94 V0 REACH
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Feature → Business Impact → Application: The IP68-rated push-pull interface provides ingress protection that reduces field maintenance and downtime, ideal for outdoor enclosures and washdown zones in packaging lines or water treatment plants. The 8 contact, gold-plated solder cup design lowers contact resistance and improves durability, translating to stable signal and power transfer in robotics and servo wiring. The straight plug with a sealing gland backshell simplifies installation in tight panels and maintains sealing integrity during service, reducing rework and warranty risk in conveyor systems. With 2000 mating cycles and a -40 to 125 °C operating range, you gain predictable lifecycle performance for mobile machinery and harsh factory floors. RoHS, REACH, and UL94 V-0 compliance support regulatory alignment and supply-chain confidence, while the compact shell size and 57 mm length enable space-saving harness design. Together, these features improve overall equipment efficiency and maintenance cost stability in industrial automation initiatives.
Get a Quick Quote for a Eaton JMXFH1G08FSUDSU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1G08FSUDSU?
Enquire Now
FAQs
Yes. The JMXFH1G08FSUDSU is part of the JMX series and uses the same mating interface as other Souriau JMX connectors. It ships with a straight plug and sealing gland backshell, and it is designed to mate with compatible JMX-series receptacles and harnesses for straightforward field assembly.
The unit provides a 5 A current rating per IEC and UL standards, with 8 contact positions. Contacts are gold-plated solder cups, and the connector is a socket (female) in a straight plug configuration. It supports 57 mm length, 19 mm width, and a shell size of 1, making it suitable for compact wiring in control panels.
Yes. The operating temperature range is -40 °C to 125 °C, ensuring reliability in cold start conditions and hot operating environments. It carries IP68 sealing, RoHS and REACH compliance, and UL94 V‑0 flammability ratings, all of which support performance in harsh industrial settings such as robotics, packaging equipment, and outdoor installations.
The JMXFH1G08FSUDSU supports RoHS and REACH compliance for restricted substances, UL94 V-0 for flame retardancy, and IP68 for ingress protection. These certifications help ensure regulator compatibility, safety, and long-term reliability in automated systems, while simplifying supplier qualification and compliance documentation for industrial projects.
With 2000 mating cycles and a robust IP68 seal, the connector reduces field maintenance, minimizes downtime, and extends service intervals in automated lines. The gold-plated contacts improve longevity and signal integrity, lowering replacement costs. Overall, engineers can expect more predictable maintenance budgets and higher machine availability in production environments.
