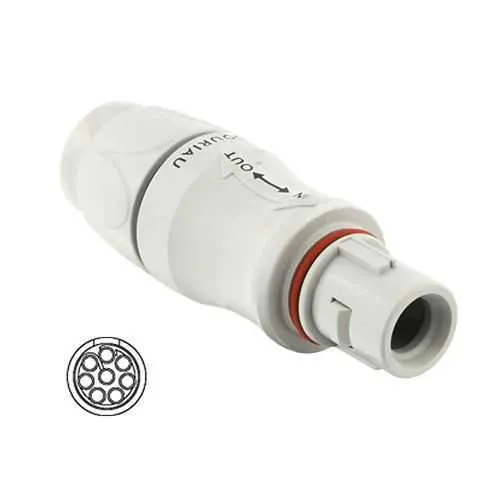

Eaton JMXFH1G08MCUDSU Plastic Push-Pull Connector - IP68
Part Number: JMXFH1G08MCUDSU
Quick Summary
Eaton Souriau JMXFH1G08MCUDSU plastic push-pull connector is a rugged, IP68 sealed solution for harsh industrial environments. This plug enables fast, tool-free mating and reliable contacts in demanding machinery, outdoor equipment, and control cabinets. Operators often struggle with water ingress, misalignment during maintenance, and costly downtime; this design minimizes those risks with a sealing gland backshell, gold-plated crimp contacts, and robust material. It also meets RoHS and UL94 V0 standards, with REACH compliance to support sustainable supply chains. For system integrators and maintenance teams, the compact 57 mm length and 19 mm width enable tighter layouts while preserving dependable mating performance across a wide temperature range of -40 °C to 125 °C.
Product Information
Extended Description
JMXFH1G08MCUDSU Eaton: Push-pull plastic IP68 plug, layout 1-08, male crimp contacts, keying G, without color coding; JMXFH1G08MCUDSU
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1G08MCUDSU
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
5 A IEC 5 A UL
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact delivery
Unloaded
Contact gender
Pin (Male)
Contact plating
Gold
Contact type
Crimp
Coupling type
Push-Pull
Degree of protection
IP68
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
8
Feature: IP68 sealing and backshell sealing gland provide robust water ingress protection, reducing downtime and maintenance costs. Business Impact: Protects critical signals and power in wet or dusty environments, enabling longer service intervals and lower repair expenses. Application: Machinery, robotics, and outdoor equipment where environmental sealing is essential. Feature: Eight gold-plated crimp contacts deliver low resistance and reliable signal integrity under load. Business Impact: Improves system reliability and uptime while supporting a 5 A rating. Application: Control panels, sensors, and actuator interfaces in industrial automation. Feature: Compact 57 mm length and 19x19 mm footprint with a 12 g shell enables space-saving installations. Business Impact: Easier integration in tight control cabinets and on mobile equipment, reducing enclosure size and cabling complexity. Application: Small-form-factor automation modules and robotic subsystems. Feature: Straight plug and backshell gland design simplify installation and maintenance. Business Impact: Faster field assembly and easier sealing verification, lowering total installation time. Application: High-mix assembly lines and service-oriented maintenance operations. Feature: 2000 mating cycles provide durable long-term performance. Business Impact: Reduces replacement costs and downtime due to wear; improves total cost of ownership. Application: High-cycle industrial applications and robotic cells. Feature: Operating range -40 °C to 125 °C with RoHS and REACH compliance plus UL94 V0 rating. Business Impact: Supports wide temperature operation and regulatory compliance, enabling use in diverse geographies. Application: Outdoor equipment, automotive-adjacent machinery, and regulated facilities.
Get a Quick Quote for a Eaton JMXFH1G08MCUDSU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1G08MCUDSU?
Enquire Now
FAQs
This connector uses a straight plug with a backshell sealing gland and a compact 57 mm length, 19 mm width, and 19 mm height. It is designed for 8-pin crimp contacts and delivered with the connector assembly; ensure your mating receptacle matches the JMX series footprint and uses compatible crimp terminals to maintain IP68 integrity during installation.
The JMXFH1G08MCUDSU supports eight contacts with a current rating of 5 A (IEC and UL). Contacts are gold-plated for reliable signal integrity, and the crimp contact type ensures a robust, vibration-resistant connection suitable for automated equipment and sensor interfaces.
Yes. It is IP68 rated for water and dust ingress protection and operates from -40 °C to 125 °C. Compliance with RoHS, REACH, and UL94 V0 adds confidence for outdoor installations and regulated facilities where environmental and fire-safety standards matter.
This connector carries IP68 protection, RoHS and REACH compliance, and UL94 V0 flammability rating. These certifications matter because they ensure resilience in harsh environments, regulatory compliance for global deployments, and safer material choices in end-use equipment and control systems.
With up to 2000 mating cycles and a robust sealing gland backshell, the JMXFH1G08MCUDSU lowers replacement frequency and maintenance downtime. The combination of reliable gold-plated contacts and IP68 protection translates to reduced field service calls and extended mean time between failures in high-cycle automation environments.
