Eaton JMXFH1G10FSUDSU Push-Pull Connector - IP68
Part Number: JMXFH1G10FSUDSU
Quick Summary
Eaton Souriau JMX series plastic push-pull connector is a rugged, fast-mate interface ideal for harsh industrial environments. Engineers often battle slow mating cycles, moisture ingress, and maintenance downtime that erode uptime. With IP68 protection and compliance to RoHS and UL94 V0 flame ratings, this connector strikes a balance between reliability and safety. Its compact 57 mm length and 10‑position layout support dense panel designs, while gold-plated solder contacts ensure signal integrity in demanding machinery. Designed for quick installation and long service life, it reduces maintenance costs and improves system availability.
Product Information
Extended Description

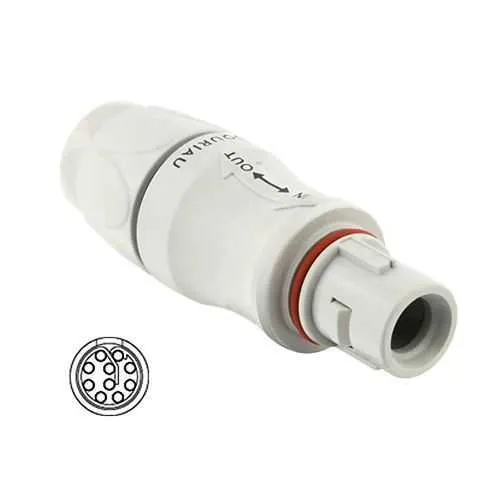

JMXFH1G10FSUDSU Eaton: Push-pull plastic IP68 plug, layout 1-10, female solder contacts, keying G, without color coding; JMXFH1G10FSUDSU
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1G10FSUDSU
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
2.5 A UL 2.5 A IEC
Environmental conditions
REACH Flammability rating UL94 V0 RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
10
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
10
Feature: Push-Pull coupling with IP68 sealing delivers fast, secure mateability and protection against dust and water ingress. Business Impact: Reduces installation time, minimizes field service calls, and improves overall uptime in challenging environments. Application: Ideal for conveyor lines, outdoor machinery, and rugged automation panels where ingress protection is non-negotiable. Feature: Compact 57 mm length with 19x19 mm footprint and a 10-position layout enables dense panel designs. Business Impact: Frees cabinet space and simplifies harness routing, lowering enclosure costs. Application: Control panels and machine interfaces with limited real estate. Feature: Gold-plated solder cup contacts provide high-reliability connections and corrosion resistance. Business Impact: Maintains signal integrity in vibration-prone equipment and extends service life. Application: Sensors, actuators, and high-density I/O networks. Feature: 2000 mating cycles and robust plastic shell offer durable performance. Business Impact: Reduces replacement cycles and maintenance expenses in high-use applications. Application: Robotic cells, packaging lines, and automated assembly. Feature: Wide operating temperature range (-40 °C to 125 °C) and sealing gland backshell. Business Impact: Supports diverse environments from cold facilities to hot, demanding plants. Application: Food & beverage, automotive, and offshore equipment requiring reliable seals and material resilience.
Get a Quick Quote for a Eaton JMXFH1G10FSUDSU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1G10FSUDSU?
Enquire Now
FAQs
JMXFH1G10FSUDSU uses a straight plug with a sealing gland backshell and a 10‑pole layout, supporting a 57 mm length footprint suitable for tight panels. The connector accepts socket (female) contacts with solder cup terminations and gold plating for reliable signal integrity. It pairs with matching JMX series receptacles and standard housings to simplify panel mounting and cable assemblies.
The JMXFH1G10FSUDSU is rated for up to 2000 mating cycles, providing long service life in equipment that requires frequent connect/disconnect. It operates from -40 °C to 125 °C, enabling use across diverse industrial applications, from cold facilities to high-temperature environments, while maintaining reliable performance.
Yes. It features IP68 sealing for robust ingress protection, RoHS and REACH compliance for environmental standards, and UL94 V0 flammability rating, which supports safety-critical installations in automation, machinery, and packaging lines while meeting regulatory expectations.
The backshell sealing gland creates a durable seal at the cable entry, reducing moisture ingress and dust intrusion. This design simplifies field install and maintenance by providing a reliable barrier without additional gaskets, helping maintain IP68 integrity in harsh environments and extending connector life in outdoor or damp settings.
Ensure mating pair is properly aligned to prevent cross-mating, use the sealing gland backshell to maintain IP68 protection, and route cables with strain relief to avoid stress on solder cups. Regularly inspect contacts for gold-plating wear and clean connectors before mating to preserve signal integrity in high-density I/O networks.
