Eaton JMXFH1G12FSUDSU Push-Pull Connector - IP68
Part Number: JMXFH1G12FSUDSU
Quick Summary
Eaton Souriau JMX series plastic push-pull connector delivers rugged, IP68 interconnects for harsh industrial equipment. This design addresses reliability challenges common in washdown and outdoor environments where mis-mating or ingress can cause costly downtime. The family emphasizes safety and compliance, leveraging IP68 sealing, UL94 V0 flammability, and RoHS/REACH adherence to reduce risk and simplify sourcing. With a 12-position layout and gold-plated solder contacts, it supports compact, scalable wiring for automation panels, robotics, and machinery controls. The result is faster assembly, improved uptime, and a clearer pathway to standardized, modular wiring across Eaton Souriau’s JMX ecosystem.
Product Information
Extended Description

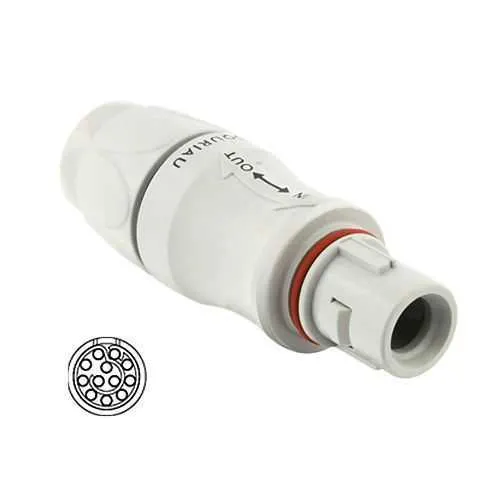

JMXFH1G12FSUDSU Eaton: Push-pull plastic IP68 plug, layout 1-12, female solder contacts, keying G, without color coding; JMXFH1G12FSUDSU
Product Name
Eaton Souriau JMX series plastic push-pull connector
Catalog Number
JMXFH1G12FSUDSU
Product Length/Depth
57 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
12 g
Current rating
2.5 A UL 2.5 A IEC
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Connector accessory option
Delivered with connector
Connector type
Plug
Contact gender
Socket (Female)
Contact plating
Gold
Contact type
Solder Cup
Coupling type
Push-Pull
Degree of protection
IP68
Layout
12
Plug type
Straight Plug
Shell material
Plastic
Shell size
1
Mating cycles
2000
Operating temperature - max
125 °C
Operating temperature - min
-40 °C
Number Of Contacts
12
Feature: 12-position layout and 57 mm length with a 19 mm width and height provide a compact, scalable interconnect. Business Impact: Enables denser wiring harnesses while maintaining robust mechanical integrity, reducing panel space and labor costs. Application: Ideal for compact automation panels and robotics where similar plugs are used across multiple modules. Feature: Push-Pull coupling and straight plug with Sealing Gland backshell. Business Impact: Delivers quick, tool-free mating and reliable sealing against contaminants, lowering maintenance time and failure rates. Application: Assembly lines, washdown environments, and field serviceable equipment. Feature: IP68 rating with 2000 mating cycles and gold-plated solder cup contacts. Business Impact: Ensures long service life in harsh environments with corrosion resistance and stable electrical contact over many cycles. Application: Outdoor machinery, packaging lines, and heavy equipment controls. Feature: Operating range -40 °C to 125 °C and 2.5 A current rating per contact. Business Impact: Supports wide ambient temperatures and safe load distribution across 12 contacts, enhancing system reliability. Application: Industrial automation controllers and sensors in variable climates. Feature: Delivered with connector and keying G to prevent mis-mating and avoid color-coding complexity. Business Impact: Simplifies installation, reduces training needs, and lowers risk of wiring errors. Application: Control panels and modular automation systems within the Souriau JMX family.
Get a Quick Quote for a Eaton JMXFH1G12FSUDSU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JMXFH1G12FSUDSU?
Enquire Now
FAQs
Ensure a proper straight plug mating with the backshell gland, and tighten to specifications to maintain IP68 sealing. Use the G keying to prevent mis-mating and verify continuity with a gold-plated solder cup contact for stable electrical performance in automation panels.
Its IP68 rating comes from the sealing gland backshell and the plastic shell, protecting the 12 golden solder contacts from water and dust ingress. The push-pull coupling also aids quick, secure mating in tight spaces, reducing exposure during maintenance.
The connector supports 2.5 A per contact with 12 contacts and is rated for up to 2000 mating cycles. This combination provides robust signal and low-power power interconnects suitable for sensors and control devices in demanding environments.
Yes. The assembly meets RoHS and REACH requirements and uses UL94 V0 flammability rated materials, which helps with regulatory compliance in many regions and simplifies supplier qualification for equipment builds.
Yes. The push-pull coupling enables fast mating/demating, the 12-position layout supports scalable wiring, and the 2000-cycle rating reduces replacement frequency. These factors translate into lower downtime and higher overall equipment effectiveness.
