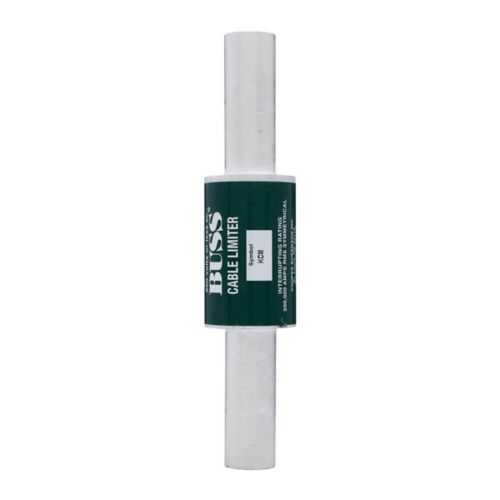

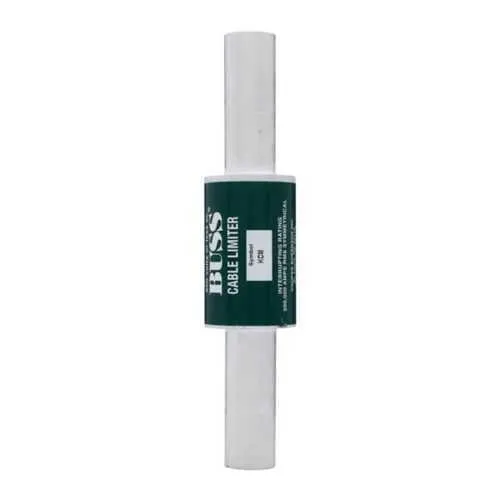

Eaton KCD Cable Limiter - 200 kAIC interrupt rating
Part Number: KCD
Quick Summary
The Eaton KCD cable limiter is a rugged protection device engineered to interrupt fault currents in power distribution cabling. Engineers often grapple with delivering high fault-current resilience without sacrificing downtime or labor-intensive maintenance. This unit is RoHS compliant and rated for up to 200 kAIC at 600 V, aligning with industry safety expectations. Beyond protection, the compact footprint and copper conductor compatibility support faster installs and lower project costs. It integrates with the Bussmann series ecosystem, simplifying sourcing and spare-part management for maintenance teams. In high-energy environments, reliable interruption and documented RoHS compliance translate to reduced regulatory risk and improved uptime.
Product Information
Extended Description
KCD Eaton: Eaton Bussmann series KCD cable limiter, 200 kAIC, Cable: copper, 2/0 AWG, Non indicating
Product Name
Eaton Bussmann series KCD cable limiter
Catalog Number
KCD
UPC
051712177016
Product Length/Depth
1.9 in
Product Height
8.75 in
Product Width
1.9 in
Product Weight
1.7 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Cable: Copper
Wire size
#2/0 AWG
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KCD
Feature → Business Impact → Application: The KCD cable limiter delivers a 200 kAIC interrupt rating, enabling reliable fault current interruption for feeders and switchgear; this reduces arc flash risk and upstream device stress, improving system uptime in data centers and industrial facilities. Application: use in power distribution paths that demand fast, dependable interruption at 600 V. The device’s copper #2/0 AWG conductor supports direct wiring with common industrial cables, streamlining installation and reducing wiring errors; application: motor control centers and panels with dense terminations. Its compact 1.9 in length and width with an 8.75 in height and 1.7 lb weight simplify cabinet fit and handling during retrofits or new builds; application: space-constrained enclosures. RoHS compliance ensures regulatory alignment while enabling easy supplier collaboration; application: regulated environments seeking green compliance. Non-indicating fuse indicator and general dimensions support quick visual checks and consistent inventory management; application: field service and maintenance.
Get a Quick Quote for a Eaton KCD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KCD?
Enquire Now
FAQs
The KCD cable limiter is designed for copper conductors sized #2/0 AWG and operates at up to 600 V. It suits high-energy protection paths in switchgear, panels, and feeders, integrating with Eaton Bussmann series devices for reliable compatibility. Its compact 1.9 by 1.9 inch base and 8.75 inch height simplify cabinet installation and routing.
A 200 kAIC interrupt rating means the device is capable of safely interrupting fault currents up to 200 kiloamps without sustaining damage in standard conditions. This rating supports protection for heavy-duty feeders and motor circuits at 600 V, reducing arcing risk and downtime. Always verify system fault levels and coordinate with upstream protection to maximize protection.
Yes. The KCD is part of Eaton Bussmann series and is listed under the Bussmann protection catalog. It uses copper #2/0 AWG conductors and is designed to integrate with Bussmann series protection devices within standard 600 V distributions. For detailed compatibility, refer to the Bussmann catalog no. 1007 and the Eaton specification sheet.
KCD is RoHS compliant, supporting environmental and regulatory standards for electrical components. The data sheet does not list CE, IP, or SIL certifications; verify with the Eaton specification sheet for the latest compliance updates. RoHS helps ensure restricted hazardous substances are managed in manufacturing and end-use.
With a non-indicating fuse indicator and a compact footprint, the KCD reduces inspection time and cabinet space needs. The device weighs about 1.7 lb and accepts #2/0 AWG copper, enabling fast, tool-limited wiring in new builds or retrofits. Regular checks of RoHS compliance and mounting integrity help ensure ongoing protection and uptime.
