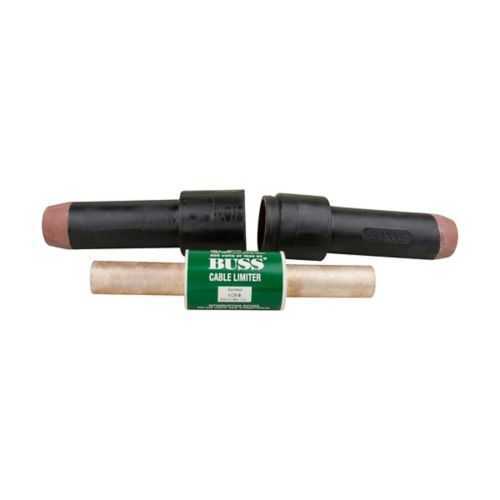

Eaton KCM-B Cable Limiter - 200 kAIC, 600 V, RoHS
Part Number: KCM-B
Quick Summary
The Eaton KCM-B cable limiter protects copper 500 kcmil cables in high-energy power distribution applications. It addresses recurring nuisance trips and uncertain fault isolation by providing reliable overcurrent protection. RoHS compliant with a 200 kAIC interrupt rating and a 600 V rating helps meet code requirements across industrial facilities. In practice, this device integrates with Eaton Bussmann series protection and reduces downtime while simplifying procurement. For reliability engineers and procurement teams, KCM-B offers a straightforward, compliant solution that aligns with uptime and safety goals. Its molded rubber boot enhances field durability and protects terminations during installation and service changes. The non-indicating fuse status simplifies visual checks where indicators are not required by local codes.
Product Information
Extended Description
KCM-B Eaton: Eaton Bussmann series KCM cable limiter, 200 kAIC, Cable: copper, 500 kcmil, Non indicating
Product Name
Eaton Bussmann series KCM cable limiter
Catalog Number
KCM-B
UPC
051712551014
Product Length/Depth
1.25 in
Product Height
5.885 in
Product Width
1.25 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Cable: Copper
Wire size
500 kcmil
Fuse indicator
Non-indicating
Special features
With molded rubber boot
KCM-B~CABLE LIMTER / BOOT
KCM-B~CABLE LIMTER / BOOT
Bussmann series Fuseology
Eaton Specification Sheet - KCM-B
Feature: 200 kAIC interrupt rating. Business Impact: Provides robust protection for high-energy circuits, reducing the risk of cascading faults and equipment damage. Application: Large feeders in industrial plants and service entrances. Feature: 500 kcmil copper wire size. Business Impact: Supports heavy-gauge copper conductors, enabling fewer terminations and improved current-carrying capacity. Application: Main service feeders and trunk lines in commercial/industrial installations. Feature: 600 V voltage rating. Business Impact: Ensures compatibility with standard low-voltage electrical distribution while maintaining safety margins. Application: Panelboards, switchgear, and distribution assemblies. Feature: Non-indicating fuse status. Business Impact: Simplifies installation and maintenance workflows by removing unnecessary indicators, reducing fault-inventory concerns. Application: Environments with minimal visual diagnostics. Feature: Molded rubber boot. Business Impact: Enhances moisture and dirt resistance at terminations, increasing field reliability and reducing rework. Application: Outdoor and rugged indoor installations. Feature: RoHS Compliant. Business Impact: Supports regulatory compliance and safer material usage in manufacturing and construction. Application: Global installations with strictMaterial controls.
Get a Quick Quote for a Eaton KCM-B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KCM-B?
Enquire Now
FAQs
Install the KCM-B in the service entrance or feeder location approved for Bussmann-series protection. Ensure the 500 kcmil copper conductors are clean, properly cleated, and seated in the limiter’s terminations. Use the molded rubber boot for moisture protection and verify the 600 V rating is suitable for the system voltage. Follow local electrical codes and Eaton installation guidance for a secure, compliant fit.
KCM-B is rated for 600 V and provides a 200 kAIC interrupt capability, which is designed to safely interrupt fault currents in high-energy installations. Its copper construction and robust housing support reliable operation under demanding service conditions, reducing the likelihood of nuisance trips and downtime in feeders and service entrances.
Yes, the KCM-B is RoHS Compliant, meaning it meets limits on hazardous substances and supports safer, environmentally responsible manufacturing and disposal. This helps align your procurement and maintenance activities with regulations common in many regions and simplifies supplier compliance reporting for industrial projects.
The KCM-B features a molded rubber boot that enhances protection at terminations, improving resistance to moisture and dirt during field installations. While not providing a stated IP rating, this boot design supports reliable operation in challenging environments typically found in outdoor or demanding indoor applications when paired with proper enclosure and installation practices.
Choosing KCM-B delivers measurable uptime benefits through robust 200 kAIC protection for 500 kcmil copper feeders, reducing fault-related downtime. Its compact dimensions, RoHS compliance, and integration with Eaton Bussmann catalogs streamline procurement, stocking, and maintenance, lowering total cost of ownership while helping meet safety and regulatory requirements.
