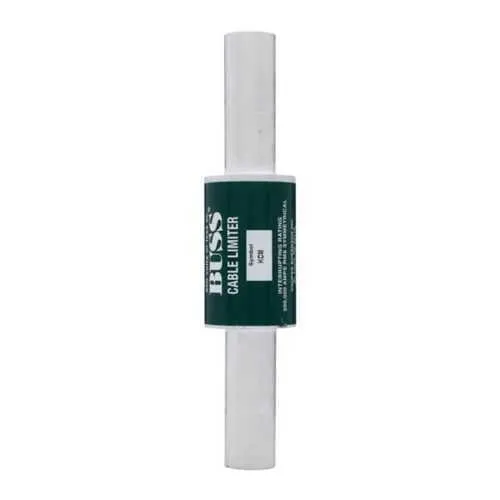

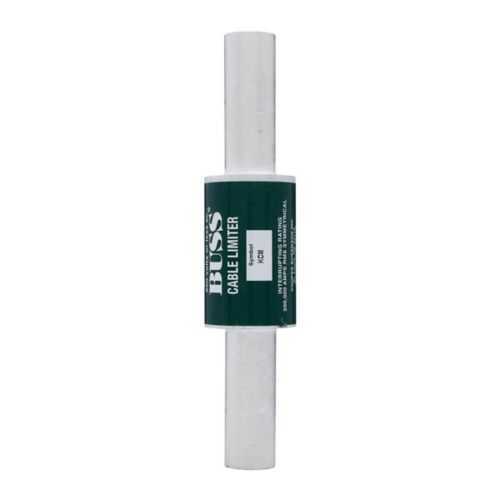

Eaton KCR Cable Limiter - 200 kAIC
Part Number: KCR
Quick Summary
The Eaton Bussmann KCR cable limiter provides rapid overcurrent protection for copper feeders in heavy-duty electrical systems. Engineers often wrestle with nuisance trips or bulky protection assemblies when safeguarding large conductors in switchgear and distribution panels. This device offers RoHS compliance and essential electrical ratings—including 600 V and a 200 kAIC interrupt rating—so it fits standard industrial specs. With tubular end-to-end connections, a compact footprint, and a 750 kcmil copper wire size, it installs quickly into Eaton Bussmann series layouts, reducing installation time and lifecycle costs. By consolidating protection into a single robust component, procurement becomes simpler and maintenance planning more predictable.
Product Information
Extended Description
KCR Eaton: Eaton Bussmann series KCR cable limiter, 200 kAIC, Tubular end X tubular end, Cable: copper, 2.5 inch, 750 kcmil, Non indicating
Product Name
Eaton Bussmann series KCR cable limiter
Catalog Number
KCR
UPC
051712177092
Product Length/Depth
1.9 in
Product Height
8.75 in
Product Width
1.9 in
Product Weight
1.7 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Cable: Copper
Wire size
750 kcmil
Connection
Tubular end x tubular end
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KCR
Feature: 200 kAIC interrupt rating. Business Impact: Enables reliable fault current interruption for feeders and minimizes downstream equipment damage, reducing unplanned downtime. Application: Ideal for high-energy 600 V distribution networks and large copper feeders, including 750 kcmil conductors. Long-tail keywords: high current protection, industrial feeder protection, 200 kAIC rating. Feature: Tubular end x tubular end connections. Business Impact: Simplifies field installation and ensures a solid, reversible connection to tubular copper terminations. Application: Easily integrated into switchgear and panel assemblies in industrial facilities. Long-tail keywords: tubular end connections, field-install friendly, Copper conductor terminations. Feature: Copper wire size 750 kcmil. Business Impact: Supports large-diameter conductors, delivering robust current capacity with mechanical strength. Application: Heavy-duty power distribution and feeder circuits. Long-tail keywords: 750 kcmil copper, large conductor protection, high-current feeders. Feature: RoHS compliant. Business Impact: Facilitates regulatory compliance and easier procurement across global facilities. Application: Environments with restricted hazardous substances and quality standards. Long-tail keywords: RoHS compliant components, regulatory compliance, eco-friendly electrical parts. Feature: Compact dimensions (1.9 in x 1.9 in x 8.75 in) and 1.7 lb weight. Business Impact: Lowers footprint in crowded enclosures and reduces handling effort during installation. Application: Enclosed switchgear, distribution panels, and tight installations. Long-tail keywords: compact protective devices, space-saving electrical components, lightweight protective devices. Feature: Non-indicating fuse indicator. Business Impact: Reduces maintenance points and complexity, lowering lifecycle costs; supports external monitoring where needed. Application: Systems with centralized status monitoring. Long-tail keywords: non-indicating design, maintenance efficiency, external status monitoring.
Get a Quick Quote for a Eaton KCR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KCR?
Enquire Now
FAQs
The KCR uses tubular end x tubular end connections and is designed for 750 kcmil copper conductors. Install it within Eaton Bussmann series layouts in 600 V environments, ensuring compatible enclosure space and alignment with upstream and downstream components. Its compact 1.9 in by 1.9 in footprint helps minimize enclosure crowding while delivering reliable protection.
A 200 kAIC interrupt rating means the device can safely interrupt high fault currents typical in industrial feeders, protecting downstream equipment and reducing the risk of arc flash or insulation damage. This rating is especially important for large copper feeders using 750 kcmil conductors in 600 V distribution networks.
Yes, the KCR is RoHS compliant, meaning it restricts hazardous substances to meet regulatory and environmental standards. This simplifies compliance across multi-site deployments and helps mitigate supply chain and sustainability concerns when sourcing protection components for industrial power systems.
The KCR cables limiter is ideal for high-current copper feeders in switchgear and distribution panels, supporting 750 kcmil conductors and tubular terminations. It suits industrial facilities with 600 V power systems requiring durable, space-efficient protection that reduces downtime and streamlines maintenance workflows.
Key documentation includes the Eaton Specification Sheet for KCR and Bussmann series catalogs. You can also access the full-line catalog no. 1007 and related multimedia resources such as Fuseology videos to aid specification, sizing, and installation planning for the KCR cable limiter.
