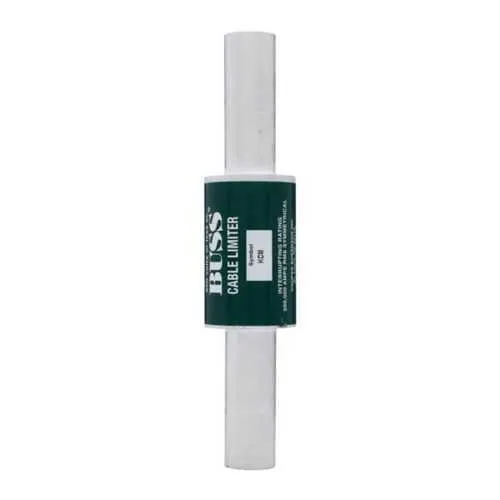

Eaton KCZ Cable Limiter for Industrial Panels - 200 kAIC
Part Number: KCZ
Quick Summary
The Eaton KCZ cable limiter protects copper feeders by interrupting fault currents in industrial panels. Engineers often struggle to select protection that combines high fault tolerance with straightforward installation and clear performance data. This unit lists a 200 kAIC interrupt rating and RoHS compliance, though no SIL, CE, or IP certifications are specified in the data, so regulatory requirements should be confirmed with Eaton for regulated environments. By aligning with copper #3 AWG conductors and a compact footprint, it supports faster project delivery while reducing on-site complexity and lifecycle costs. The KCZ fits seamlessly into Wiring & Connectivity strategies and complements Bussmann series protections for reliable, maintainable systems.
Product Information
Extended Description
KCZ Eaton: Eaton Bussmann series KCZ cable limiter, 200 kAIC, Cable: copper, 3 AWG, Non indicating
Product Name
Eaton Bussmann series KCZ cable limiter
Catalog Number
KCZ
UPC
051712177122
Product Length/Depth
1.9 in
Product Height
8.75 in
Product Width
1.9 in
Product Weight
1.7 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC
Material
Cable: Copper
Wire size
#3 AWG
Fuse indicator
Non-indicating
KCZ~BUSS CABLE LIMITER
KCZ~BUSS CABLE LIMITER
Bussmann series Fuseology
Eaton Specification Sheet - KCZ
Feature: 200 kAIC interrupt rating. Business Impact: Enables robust fault-current interruption, protecting cables, switchgear, and downstream devices during short-circuit events. Application: Suitable for high-energy feeders in motor control centers and power distribution panels, reducing equipment damage and downtime. The result is improved system reliability and safer maintenance windows. Feature: Copper cable compatibility with #3 AWG. Business Impact: Ensures straightforward integration with common copper wiring schemes, minimizing customTerminations and inventory. Application: Ideal for standard branch circuits and feeder runs in industrial facilities, enabling faster wiring installs and easier spares planning. Feature: RoHS-compliant construction. Business Impact: Helps meet regulatory requirements and corporate sustainability goals, lowering risk in regulated markets. Application: Useful for manufacturing, electronics, and heavy industry installations that require material compliance documentation. Feature: Non-indicating fuse indicator. Business Impact: Reduces hardware costs and simplifies physical design, though requires external monitoring to confirm status. Application: Best paired with panel-mounted diagnostics or remote monitoring to maintain visibility without added components. Feature: Compact cross-section with tall profile. Business Impact: Facilitates panel mounting in tight spaces while preserving clearance for wiring and access. Application: Suitable for dense control panels and multi-row bus assemblies in industrial environments. Feature: Broad catalog compatibility with Bussmann KCZ family. Business Impact: Streamlines procurement and spares strategies, enabling faster stocking and consistent replacements. Application: Aligns with Eaton Bussmann protection strategies across Wiring & Connectivity projects.
Get a Quick Quote for a Eaton KCZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KCZ?
Enquire Now
FAQs
Yes. KCZ is designed for copper conductors sized #3 AWG, ensuring reliable contact and compatible terminations within Bussmann KCZ configurations. When wiring, verify connector type and torque specs per the Eaton installation guide and ensure the limiter aligns with upstream protection coordination for your panel layout.
The KCZ cable limiter provides a 200 kAIC interrupt rating, enabling rapid response to high-energy fault currents. This rating supports protection schemes in large feeders and motor control centers, reducing equipment damage and downtime. Ensure system short-circuit levels are coordinated with upstream devices for optimal protection.
Yes, the KCZ is RoHS compliant, supporting regulatory requirements for hazardous substances in electrical components. Note that the data does not specify SIL, CE, or IP certifications; for environments requiring those standards, confirm with Eaton or obtain appropriate third-party certifications before deployment.
The KCZ has a length/depth of 1.9 inches, a width of 1.9 inches, and a height of 8.75 inches, with a weight around 1.7 pounds. This profile supports a compact mount in panels while leaving space for wiring and connectors. Always verify mounting clearance in the enclosure prior to installation.
KCZ is non-indicating, meaning it does not provide a visual fuse status. To monitor operation, pair the limiter with external diagnostics or panel-mounted indicators and testing routines. This approach reduces component count while preserving visibility through a separate monitoring system.
