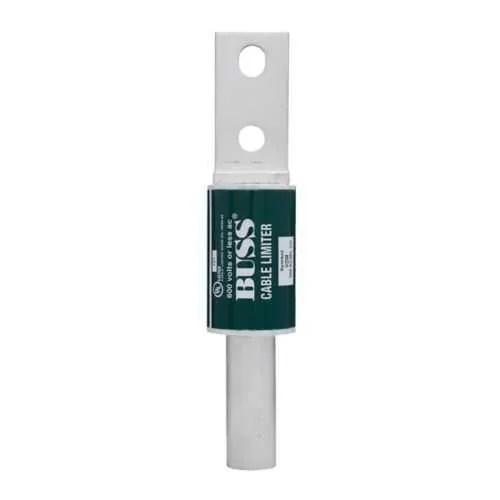

Eaton KDE Cable Limiter - 200 kAIC RoHS Compliant
Part Number: KDE
Quick Summary
The Eaton KDE cable limiter provides high-current protection by terminating copper conductors in switchgear and cabinet installations. Engineers often struggle to accommodate large fault currents while keeping bus connections safe, compact, and compliant in crowded enclosures. This KDE model delivers a 200 kAIC interrupt rating and RoHS compliance, supporting reliable fault isolation without compromising space or workflow. By leveraging copper #3/0 AWG conductors and the tubular end x offset bolted end design, it simplifies procurement and installation for electrical distributors and OEMs. Its compact dimensions and documented specs help validate installations to standards, while RoHS compliance reduces lifecycle risk and regulatory overhead in modern electrical systems.
Product Information
Extended Description
KDE Eaton: Eaton Bussmann series KDE cable limiter, 200 kAIC, Tubular end X offset bolted end, Cable: copper, 3/0 AWG, Non indicating
Product Name
Eaton Bussmann series KDE cable limiter
Catalog Number
KDE
UPC
051712656085
Product Length/Depth
1.63 in
Product Height
9.25 in
Product Width
2.21 in
Product Weight
1.9 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC
Material
Cable: Copper
Wire size
#3/0 AWG
Connection
Tubular end x offset bolted end
Fuse indicator
Non-indicating
KDE~BUSS CABLE LIMITER
KDE~BUSS CABLE LIMITER
Bussmann series Fuseology
Eaton Specification Sheet - KDE
The KDE cable limiter offers a 200 kAIC interrupt rating, delivering robust fault-current control that protects downstream equipment and minimizes the risk of cascading failures in switchgear and power cabinets. This translates to higher uptime, lower replacement costs, and smoother project approvals for capital builds. It is designed for copper feeders at #3/0 AWG, aligning with common industrial wiring practices and eliminating the need for awkward adapters or rework at the point of installation, which accelerates commissioning. The tubular end x offset bolted end connection provides a secure mechanical interface that simplifies alignment during mounting and reduces field gathering time in dense panels. RoHS compliance supports regulatory purchasing and reduces lifecycle compliance burdens for contractors and OEMs. The unit weighs 1.9 lb and measures 1.63 in depth by 2.21 in width by 9.25 in height, enabling easy handling and integration into compact enclosures. Non-indicating fuse status requires external monitoring, but this design keeps the limiter simple, cost-effective, and compatible with broader Bussmann KDE hardware families. Overall, KDE integrates cleanly with existing Bussmann series catalogs, enabling streamlined procurement, standardized stocking, and predictable lead times for project planners.
Get a Quick Quote for a Eaton KDE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KDE?
Enquire Now
FAQs
The KDE utilizes a tubular end x offset bolted end connection, allowing a straightforward mechanical mount to standard bus bars or enclosure walls. Ensure proper alignment with the copper conductor and secure with the appropriate bolts, tightening to the manufacturer’s torque specification. Use compatible hardware to maintain the 200 kAIC rating and verify the assembly clearance within the enclosure to prevent conductor bending or interference with other components.
Yes. The KDE is specified for copper wire size #3/0 AWG, aligning with common industrial feeder configurations and minimizing the need for adapters. This compatibility supports efficient procurement and reduces field termination complexity while maintaining the 200 kAIC interrupt rating.
The KDE offers a 200 kAIC interrupt rating, delivering strong fault-current protection to prevent fault propagation in switchgear and power cabinets. This rating supports safer maintenance windows and reduces the likelihood of equipment damage during high-energy fault events, contributing to system reliability and lower lifecycle costs.
Yes, the KDE is RoHS compliant, meaning it adheres to restrictions on hazardous substances common in electrical components. This facilitates regulatory approvals, simplifies supplier qualification, and reduces sourcing risk for projects with strict environmental and safety requirements.
KDE’s robust copper construction and fixed mechanical connection offer reliable fault isolation with minimal movement or recalibration over time. The non-indicating design reduces upfront costs, while RoHS compliance lowers end-of-life disposal concerns. Together, these factors translate to reduced field service time, predictable maintenance cycles, and improved total cost of ownership for power distribution systems.
