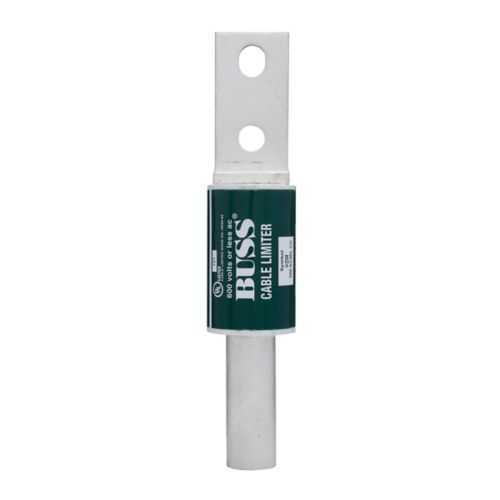

Eaton KDJ Cable Limiter - 200 kAIC Tubular end X-offset
Part Number: KDJ
Quick Summary
The Eaton KDJ cable limiter protects large copper feeders in electrical distribution and switchgear. Operators and engineers often struggle to balance fast fault clearing with minimal downtime and nuisance trips. RoHS compliant and rated for 200 kAIC, it supports robust protection for high-current applications with copper conductors up to 350 kcmil. The compact tubular end x offset bolted end design simplifies installation and compatibility with standard wiring components, while the non-indicating feature keeps panel space free for status indicators elsewhere. This combination translates to shorter commissioning cycles and improved asset protection across Wiring & Connectivity in industrial facilities. Get reliable performance without compromising regulatory compliance or install footprint.
Product Information
Extended Description
KDJ Eaton: Eaton Bussmann series KDJ cable limiter, 200 kaIC, Tubular end X offset bolted end, Cable: copper, 1.63 inch, 350 kcmil, Non indicating
Product Name
Eaton Bussmann series KDJ cable limiter
Catalog Number
KDJ
UPC
051712650960
Product Length/Depth
1.63 in
Product Height
9.25 in
Product Width
2.21 in
Product Weight
1.9 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC
Material
Cable: Copper
Wire size
350 kcmil
Connection
Tubular end x offset bolted end
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KDJ
KDJ~BUSS CABLE LIMITER
High interrupt rating and conductor compatibility drive tangible business outcomes. The KDJ is engineered for 200 kAIC fault current protection on copper feeders up to 350 kcmil, delivering fast interruption and reducing downstream damage in electrical distribution and switchgear. This translates into higher system availability, fewer field repairs, and reduced downtime costs in power-intensive facilities. The robust Bussmann-series construction supports long service life in demanding environments, while maintaining compatibility with common Wiring & Connectivity components, aiding standardization across projects. Installation efficiency is enhanced by the tubular end x offset bolted end configuration, which provides a secure mechanical interface and simplifies alignment during panel assembly. The result is faster deployment, lower labor costs, and consistent protection across multiple feeders. RoHS compliance further minimizes regulatory risk and promotes sustainable manufacturing practices in industrial settings. Non-indicating design reduces panel clutter, allowing space for essential status indicators and simplifying enclosure layouts without compromising protection.
Get a Quick Quote for a Eaton KDJ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KDJ?
Enquire Now
FAQs
The Eaton Bussmann KDJ cable limiter is a high-current protection device designed to cap fault currents on large copper feeders. It supports up to 350 kcmil copper conductors with a 200 kAIC interrupt rating, and is intended for electrical distribution, switchgear, and heavy power panels. This helps protect downstream equipment and reduce outage impact.
Install the KDJ by first confirming compatibility with 350 kcmil copper conductors and tubular end x offset bolted end fittings. Attach the tubular end to the conductor, align the offset bolted end, torque per Eaton’s specifications, and verify a solid mechanical and electrical connection. Ensure clearances and enclosure fit before energizing.
Yes, the KDJ is RoHS compliant. It provides a 200 kAIC interrupt rating and is designed for copper conductors up to 350 kcmil, with tubular end x offset bolted end connections. This combination supports reliable fault protection in industrial wiring and connectivity applications while helping meet sustainability and regulatory expectations.
The KDJ is configured for copper cables up to 350 kcmil, offering a robust tubular end x offset bolted end interface for secure connections. The module uses copper conductors and Bussmann-series construction to ensure compatibility with standard wiring and connectivity components in Eaton protection solutions.
The KDJ is non-indicating by design, meaning it does not provide built-in fuse status. For monitoring, integrate with panel diagnostics or external indicators. Regular inspection should verify mechanical integrity of the tubular end and bolted connection, and coordinate with protective device settings to maintain reliable uptime and asset protection across installations.
