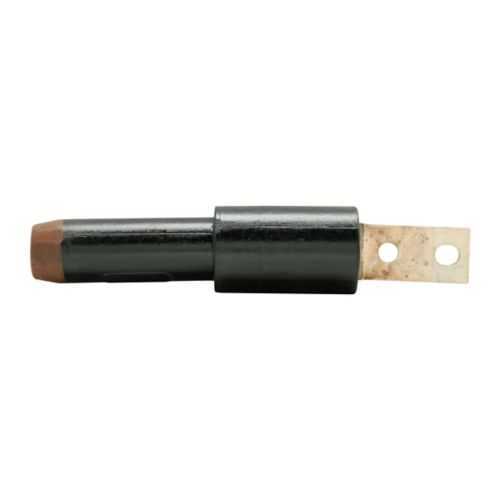

Eaton KDM-B Cable Limiter - 200 kAIC
Part Number: KDM-B
Quick Summary
Eaton KDM-B cable limiter provides reliable fault-current containment for copper feeder cables used in switchgear and power distribution panels. Installers often face mounting clearance challenges, wiring complexity, and downtime during maintenance, which this unit helps alleviate with its tubular end and offset bolted end design. RoHS compliant and rated for 200 kAIC at 600 V, the KDM-B supports 500 kcmil copper conductors, backed by Eaton’s durable construction and documentation including the spec sheet and catalogs. For panel builders and maintenance teams, this translates to faster deployments, reduced field labor, and lower lifecycle costs in heavy manufacturing and utility environments. Secondary benefits include robust environmental resilience and straightforward integration with existing buswork.
Product Information
Extended Description
KDM-B Eaton: Eaton Bussmann series KDM cable limiter, 200 kAIC, Tubular end X offset bolted end, Cable: copper, 500 kcmil, Non indicating, B
Product Name
Eaton Bussmann series KDM cable limiter
Catalog Number
KDM-B
UPC
051712551021
Product Length/Depth
1.88 in
Product Height
9.34 in
Product Width
1.88 in
Product Weight
2.9 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Cable: Copper
Wire size
500 kcmil
Connection
Tubular end x offset bolted end
Fuse indicator
Non-indicating
Special features
Molded rubber boot
KDM-B~CABLE LIMITER / BOOT
KDM-B~CABLE LIMITER / BOOT
Bussmann series Fuseology
Eaton Specification Sheet - KDM-B
Feature: High interrupt rating of 200 kAIC and voltage rating of 600 V. Business Impact: Provides reliable fault-current containment for large feeders, reducing potential damage to switchgear and downstream equipment while lowering unplanned downtime. Application: Ideal for main feeders in industrial power distribution where fault energy must be quickly interrupted and system reliability is critical. Feature: Copper conductor compatibility up to 500 kcmil. Business Impact: Supports high-current applications with a compact footprint, enabling efficient conductor utilization and minimizing cabinet space needs. Application: Power panels and MCCs requiring large-diameter copper cables. Feature: Tubular end x offset bolted end connections. Business Impact: Eases mounting alignment and integration with existing busbar hardware, reducing installation time and risk of improper connections. Application: Retrofit projects and new installations in constrained enclosures. Feature: Molded rubber boot. Business Impact: Enhances environmental sealing and durability, lowering ingress-related maintenance and extending service life. Application: Outdoor or damp environments and demanding industrial settings. Feature: Non-indicating fuse status. Business Impact: Simplifies operation and reduces maintenance checks by eliminating unnecessary indicators; supports reliable, non-intrusive protection schemes. Application: Systems where separate status indicators are used elsewhere in the protection chain. Additional: RoHS compliant ensures regulatory alignment in modern facilities, while the unit’s rugged build supports long service intervals and reduced total cost of ownership.
Get a Quick Quote for a Eaton KDM-B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KDM-B?
Enquire Now
FAQs
Installers should align the tubular end with the corresponding busbar interface and secure the offset bolted end connections per the panel’s layout. The KDM-B features a molded rubber boot for environmental sealing and is designed for 500 kcmil copper conductors. Verify RoHS compliance and ensure the unit is mounted within the enclosure to maintain access for maintenance and safety protocols.
Yes. The KDM-B supports copper cable sizes up to 500 kcmil and is rated for 600 V. It provides a 200 kAIC interrupt rating, making it appropriate for high-energy feeders in industrial switchgear and power distribution panels where large conductor protection is required.
Typical applications include main feeders in switchgear, motor control centers, and cabinet-fed power distribution systems in heavy manufacturing, utilities, and process industries. Its tubular end x offset bolted end connection simplifies integration with existing buswork, while its rugged build supports long service life in demanding environments.
The KDM-B is RoHS compliant, aligning with modern environmental and regulatory expectations. The datasheet specifies a 200 kAIC interrupt rating and 600 V rating for safe operation in industrial power systems; there are no additional CE or IP certifications listed in the provided data.
Documentation is available from Eaton, including the KDM-B specification sheet and full line catalogs. Useful links include the KDM-B specification sheet and Bussmann series catalogs, plus multimedia resources like the Fuseology video for broader product context and application guidance.
