Eaton KDP CableLimiter-200kAIC
Part Number: KDP
Quick Summary
KDP cable limiter by Eaton protects high-current feeder circuits in switchgear and MCC applications. Engineers often struggle with safeguarding massive copper or aluminum conductors from short circuits while meeting tight space and installation constraints. It is RoHS compliant and UL Listed for copper-only installations, featuring a 200 kAIC interrupt rating and a 600 V rating to support safe, code-compliant installations. Beyond compliance, its compact footprint and compatibility with 500 kcmil copper or aluminum cables deliver tangible business value by speeding procurement, reducing field time, and lowering spare-part inventories.
Product Information
Extended Description

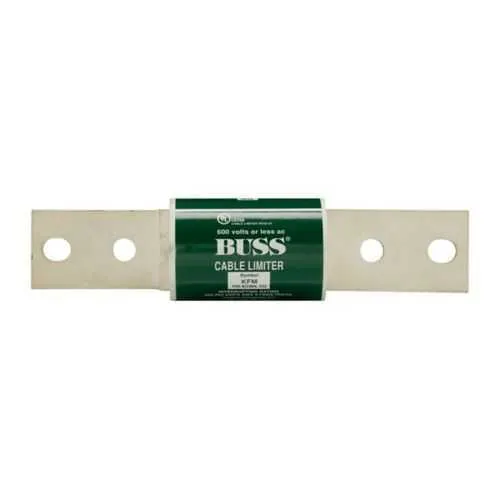

KDP Eaton: Eaton Bussmann series KDP cable limiter, 200 kaIC, Center bolt end X offset bolted end, Cable: copper, 1.88 inch, Aluminum: 500 kcmil, Non indicating
Product Name
Eaton Bussmann series KDP cable limiter
Catalog Number
KDP
UPC
051712600057
Product Length/Depth
2.5 in
Product Height
1.75 in
Product Width
2.75 in
Product Weight
4.25 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Catalog Notes
UL Listed file E90818 is for copper only
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Cable: Copper
Wire size
500 kcmil Cu, 500 kcmil Al
Connection
Center bolt end x offset bolted end
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KDP
KDP~BUSS CABLE LIMITER
