Eaton KDPV4200W PV Guard Solar MCCB - UL Listed
Part Number: KDPV4200W
Quick Summary
Eaton KDPV4200W PV Guard Solar MCCB provides reliable overcurrent protection for photovoltaic installations. Installers often struggle with achieving secure protection in 1000 Vdc PV circuits while managing space and terminal options in cramped enclosures. CSA Certified and UL Listed ensure regulatory compliance, and the PV-class design supports outdoor solar deployments. With a four-pole KD frame complete breaker, rated at 200 A and 1000 Vdc, this unit simplifies wiring and enables faster commissioning. The 50°C calibration and 80% rated setting help maintain consistent performance in typical site conditions, reducing nuisance trips and extending equipment life. For utilities, EPCs, and equipment manufacturers, this translates to lower lifecycle costs and a smoother path to compliant solar deployments.
Product Information
Extended Description

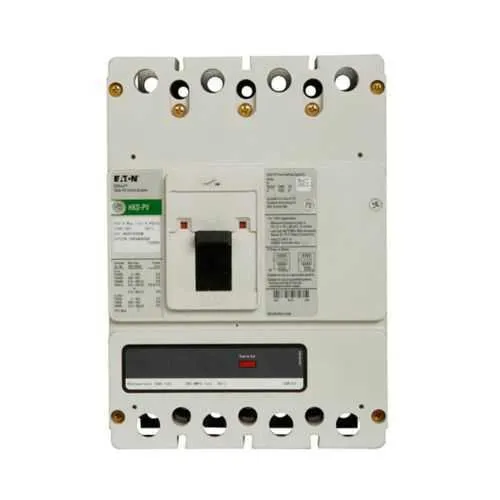

KDPV4200W Eaton: Eaton PV Guard / Solar complete molded case circuit breaker, K-frame, KD, Complete breaker, Fixed thermal, fixed magnetic trip type, Four-pole, 200A, 1000 Vdc, 5 kAIC, Without terminals, Photo voltaic, 50°C, 80% rated
Product Name
Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
KDPV4200W
UPC
786685883335
Product Length/Depth
12 in
Product Height
8 in
Product Width
8 in
Product Weight
14.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Amperage Rating
200 A
Voltage rating
1000 Vdc
Trip Type
T186
Circuit breaker type
KD
Circuit breaker frame type
Complete breaker
Rating
80% rated
Terminals
Without terminals
Frame
K
Class
Photovoltaic
Calibration
50°C
Interrupt rating
5 kAIC
Number of poles
Four-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
PVGard solar circuit breakers technical data sheet
PVGard solar circuit breakers technical data sheet
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: Four-pole, complete KD-frame breaker simplifies DC protection for PV systems. Business Impact: Reduces wiring complexity and improves fault isolation, enabling faster commissioning and easier field maintenance with a single, integrated protection device. Application: Ideal for PV string combiner boxes, outdoor solar stations, and equipment racks where consistent performance and compact footprint matter. Feature: 200 A amperage rating and 1000 Vdc rating. Business Impact: Enables direct protection of large PV arrays and inverters without cascading multiple devices, reducing interconnect length, wiring errors, and enclosure space. Application: Suitable for commercial and utility‑scale solar projects with higher DC bus voltages in rooftops and ground mounts. Feature: 5 kAIC interrupt rating. Business Impact: High fault-current tolerance minimizes equipment damage, reduces downtime, and extends inverter and transformer life. Application: PV farms, DC switching stations, and battery-backed solar arrays where fault currents can peak. Feature: Fixed thermal and fixed magnetic trip (T186) with 50°C calibration. Business Impact: Delivers precise protection across typical PV site temperatures, reducing nuisance trips and maintaining consistent response as ambient conditions vary. Application: Outdoor solar installations in climates up to 50°C ambient. Feature: Without terminals. Business Impact: Simplifies enclosure design by allowing terminals to be provided by upstream devices or bus bars, saving install time and reducing field wiring complexity. Application: Use where upstream lugs or connectors are installed in the enclosure. Feature: CSA Certified and UL Listed; PV class. Business Impact: Streamlines procurement, regulatory approvals, and safety validation for North American projects. Application: Suitable for utility-scale and commercial PV installations requiring local code compliance. Feature: PV Class and 50°C rating with 80% rated setting. Business Impact: Confidence in sustained operation in typical site conditions, reducing derating surprises. Application: Outdoor PV installations with elevated temperatures.
Get a Quick Quote for a Eaton KDPV4200W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KDPV4200W?
Enquire Now
FAQs
The KDPV4200W is a four-pole KD-frame molded case breaker designed for PV DC protection up to 1000 V, rated at 200 A with a 5 kAIC interrupt rating. It is ideal for PV string boxes, outdoor solar stations, and distribution panels where a compact, high-current protection device is required.
This unit is CSA Certified and UL Listed, reflecting conformity to North American safety standards. The PV-class designation indicates suitability for photovoltaic applications, simplifying procurement and QA verification for solar projects.
Yes. The breaker is calibrated for 50°C ambient conditions and is PV-class rated, ensuring reliable protection in typical outdoor solar installations where temperatures can rise and DC currents remain high.
Key specs include a 200 A amperage rating, 1000 Vdc voltage rating, 5 kAIC interrupt rating, four poles, KD frame, and a complete breaker design with no terminals on the device itself. These combine to protect large PV arrays and inverters efficiently.
The KDPV4200W is a four-pole breaker with a compact KD-frame footprint intended for integration in PV distribution blocks and enclosures. Weight is 14.5 lb with dimensions roughly 12 in by 8 in by 8 in, helping plan enclosure fit and mounting without introducing much additional bulk.
