Eaton KDR Cable Limiter - 200 kAIC, 600 V, RoHS Compliant
Part Number: KDR
Quick Summary
The KDR cable limiter from Eaton protects copper cables in power distribution, enabling fast fault clearance for feeders. Engineers often face nuisance trips and costly downtime when large copper feeders and bus connections are protected by undersized devices. RoHS compliant by design, this limiter aligns with environmental and regulatory expectations while delivering robust electrical protection. In practice, a compact, high‑rating limiter like KDR helps minimize maintenance costs and accelerate system reliability, making it a strategic fit for modern switchgear and distribution panels. Use cases span industrial facilities, data centers, and large manufacturing plants where dependable feeder protection is critical.
Product Information
Extended Description

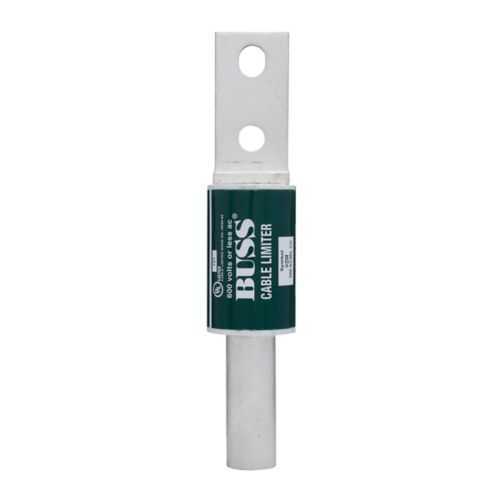

KDR Eaton: Eaton Bussmann series KDR cable limiter, 200 kAIC, Tubular end X offset bolted end, Cable: copper, 2.5 inch, 750 kcmil, Non indicating
Product Name
Eaton Bussmann series KDR cable limiter
Catalog Number
KDR
UPC
051712650977
Product Length/Depth
1.63 in
Product Height
9.25 in
Product Width
2.21 in
Product Weight
1.9 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Cable: Copper
Wire size
750 kcmil
Connection
Tubular end x offset bolted end
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KDR
KDR~BUSS CABLE LIMITER
Feature: 200 kAIC interrupt rating provides rapid fault interruption, reducing arc flash risk and downstream damage → Business Impact: improves system availability and lowers unplanned downtime in critical loads → Application: switchgear and bus duct protection for feeders. Feature: 600 V voltage rating supports safe operation across typical industrial distribution networks → Business Impact: enables compliant protective schemes without over‑specifying components → Application: motor control centers and panelboard assemblies with copper feeders. Feature: 750 kcmil copper wire size capability and 2.5 inch cable dimension compatibility → Business Impact: supports large feeder installations with fewer components and faster installation → Application: high‑capacity feeder runs in manufacturing plants. Feature: Tubular end x offset bolted end connection for versatile mounting → Business Impact: simplifies retrofit and new installations with flexible mounting options → Application: integration into existing Eaton Bussmann series assemblies. Feature: Non‑indicating fuse indicator reduces visual inspection overhead and clutter → Business Impact: lowers maintenance cost and improves technician workflow → Application: control panels and protection enclosures. Feature: RoHS compliant construction helps with regulatory compliance and waste reduction → Business Impact: supports sustainability programs and end‑of‑life planning → Application: any RoHS‑conscious facility upgrading protection devices. Feature: Compact form factor (1.63 in depth, 9.25 in height, 2.21 in width) and weight 1.9 lb → Business Impact: easier handling, faster installation, and reduced rack space requirements → Application: compact protection in crowded control rooms and switchgear rooms.
Get a Quick Quote for a Eaton KDR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KDR?
Enquire Now
FAQs
Install the KDR using its Tubular end x offset bolted end mating with compatible Bussmann series buswork. Ensure the copper conductor is 750 kcmil, align with the 1.63 in depth and 2.21 in width, and torque to manufacturer recommendations. Verify the 600 V rating and 200 kAIC interrupt capability are suitable for your feeder protection scheme and that connections are clean and tight to maintain low contact resistance.
The KDR limiter provides a 200 kAIC interrupt rating and operates at 600 V. It is intended for large copper feeder protection in switchgear, motor control centers, and distribution panels where fast fault clearance is essential to protect cables and downstream equipment.
Yes, the KDR is RoHS compliant. This means restricted hazardous substances are controlled in the product, supporting environmental compliance, waste minimization, and easier end‑of‑life management in regulated facilities.
KDR combines high interrupt rating, suitable voltage, and a compatible 750 kcmil copper footprint with a compact form factor and easy mounting. This yields faster deployment, reduced inventory complexity, and improved reliability for heavy feeder protection in modern electrical rooms.
Official specifications and datasheets are available from Eaton, including the KDR specification sheet and Bussmann data sheets. Catalogs and multimedia resources are accessible to support design reviews, installation guidance, and technical training for your team.
