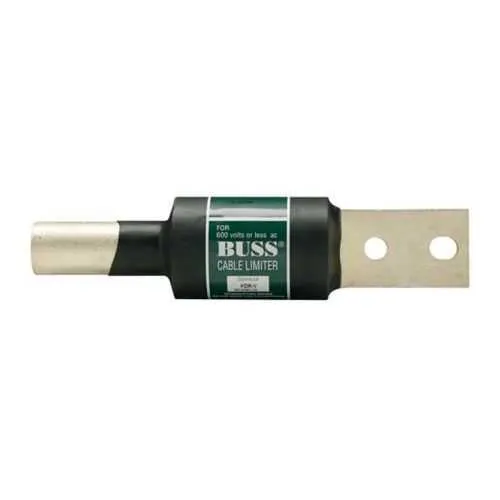

Eaton KDR-V Cable Limiter - 600V, 750 kcmil, 200 kAIC
Part Number: KDR-V
Quick Summary
The Eaton KDR-V cable limiter provides high-capacity fault isolation for industrial power systems. Engineers face downtime and protection coordination challenges when safeguarding large copper feeders in harsh environments. RoHS compliant and documented for industrial use, verify additional CE, UL, or IP ratings from Eaton’s datasheet for your region. By leveraging tubular end x offset bolted end connections, shrink-tube insulation, and a 750 kcmil copper conductor rating, this limiter enables fast, reliable installation and long-term maintenance savings. In practice, it supports rapid commissioning and reduces field service time on critical feeders.
Product Information
Extended Description
KDR-V Eaton: Eaton Bussmann series KDR cable limiter, 200 kAIC, Tubular end X offset bolted end, Cable: copper, 750 kcmil, Non indicating, F
Product Name
Eaton Bussmann series KDR cable limiter
Catalog Number
KDR-V
UPC
051712177276
Product Length/Depth
2.5 in
Product Height
1.75 in
Product Width
2.75 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Cable: Copper
Wire size
750 kcmil
Connection
Tubular end x offset bolted end
Fuse indicator
Non-indicating
Special features
With shrink tube
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KDR-V
Feature → Business Impact → Application: The KDR-V delivers a 200 kAIC interrupt rating for high-energy fault events, minimizing arc flash risk and protecting downstream equipment, which reduces unplanned downtime. Application: Ideal for large copper feeders in industrial plants and data centers where reliable short-circuit protection is essential. Feature → Business Impact → Application: Rated for 600 V, this device ensures compatibility with common industrial power systems, enabling safe operation across 600 V networks and simplifying code compliance. Application: Suitable for manufacturing floors and process lines requiring robust 600 V protection. Feature → Business Impact → Application: Wire size 750 kcmil copper supports large-diameter conductors, enabling protection for heavy feeders without conductor redesign. Application: Heavy industrial feeders in power distribution systems. Feature → Business Impact → Application: Tubular end x offset bolted end connection provides a rugged mechanical interface, reducing installation time and improving reliability. Application: Retrofit projects and new installs in panel enclosures with space constraints. Feature → Business Impact → Application: Shrink tube protection adds insulation and environmental resistance, extending service intervals in harsh manufacturing environments. Application: Outdoor or heat-intensive installations. Feature → Business Impact → Application: Non-indicating fuse indicator minimizes routine checks and maintenance steps, lowering lifecycle costs. Application: Field crews focusing on quick commissioning. Feature → Business Impact → Application: RoHS compliant construction supports regulatory alignment and sustainability goals across modern facilities. Application: Projects with environmental compliance requirements. Feature → Business Impact → Application: Weight 0.1 lb enhances handling during on-site installation, improving site productivity and reducing worker fatigue. Application: Tight installation spaces and frequent rework scenarios.
Get a Quick Quote for a Eaton KDR-V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KDR-V?
Enquire Now
FAQs
The KDR-V features tubular end x offset bolted end connections designed for secure mechanical assembly with 750 kcmil copper conductors. This compatibility supports large-diameter feeders commonly found in industrial power distribution. Ensure correct bolt sizing and torque per Eaton’s installation guidelines, and use the shrink tube for added insulation in harsh environments. This configuration streamlines retrofit and new-install workflows while maintaining high-current protection performance.
KDR-V provides an interrupt rating of 200 kAIC and a voltage rating of 600 V, making it suitable for high-energy fault scenarios in industrial power systems. These specs help align protection coordination with upstream breakers and minimize downstream damage. Always confirm application-specific coordination with the overall protection scheme and consult Eaton’s specification sheet for exact system pairing recommendations.
Yes, the KDR-V is well-suited for large feeders in data centers and heavy industrial equipment where high interrupt ratings and robust cable sizing are required. Its 750 kcmil copper conductor compatibility and 600 V rating support reliable protection in demanding environments. For optimal results, ensure the installation aligns with your facility’s electrical distribution architecture and RoHS compliance requirements.
The data for this part lists RoHS compliance, which supports environmental and material safety requirements. For broader regulatory alignment, consult Eaton’s official datasheet and regional product approvals to verify CE, UL, or IP ratings applicable to your facility and location. Always align component selection with local electrical codes and your company’s compliance policies.
The KDR-V reduces maintenance overhead by offering a non-indicating design with shrink-tube insulation that protects conductors and simplifies installation. Its high interrupt rating minimizes downtime during fault events, contributing to faster mean time to recovery (MTTR) and improved uptime. Its lightweight construction also lowers handling and field labor costs during commissioning and maintenance cycles.
