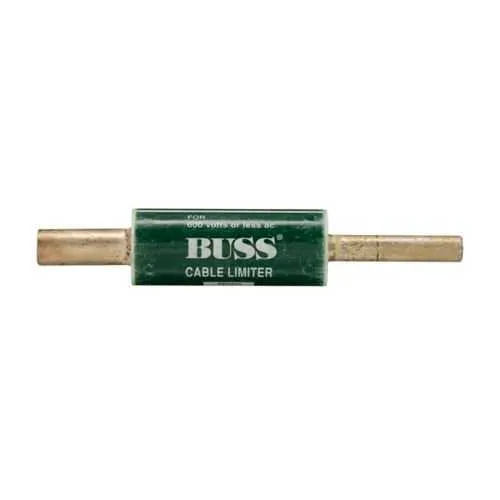

Eaton KEX Cable Limiter - 200 kAIC at 600 Vac
Part Number: KEX
Quick Summary
KEX cable limiter from Eaton provides fast fault isolation and energy absorption for 600 VAC distribution in industrial panels. Engineers often struggle with protecting copper feeders from high-energy faults while maintaining compact, serviceable panel layouts. This RoHS compliant device is designed to meet common safety and performance expectations in demanding environments, delivering reliable protection without complicating installation. Featuring copper wire for #4/0 AWG conductors and a compression rod x tubular end, it enables quicker field termination and reduces wiring errors. The result is increased uptime, simplified maintenance, and a clearer path to regulatory alignment in power distribution applications.
Product Information
Extended Description
KEX Eaton: Eaton Bussmann series KEX cable limiter, 200 kAIC at 600 Vac, Compression rod X tubular end, Cable: copper, 1.75 inch 4/0 AWG, Non indicating
Product Name
Eaton Bussmann series KEX cable limiter
Catalog Number
KEX
UPC
051712177382
Product Length/Depth
1.44 in
Product Height
7.88 in
Product Width
1.44 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC at 600 Vac
Material
Cable: Copper
Wire size
#4/0 AWG
Connection
Compression rod x tubular end
Fuse indicator
Non-indicating
Special features
Wire size: 4/0 AWG, wire material: copper
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KEX
Feature 200 kAIC interrupt rating at 600 Vac → Business Impact Provides high-energy fault protection that minimizes conductor damage and arc-flash risk, reducing unplanned downtime. Application Ideal for 600 VAC feeders in motor control centers and switchgear where fault energy is a concern. The compact form factor supports easier panel layouts and faster installation, lowering field labor costs. Feature Copper wire construction (#4/0 AWG) → Business Impact Ensures reliable, low-resistance connections with durable conductivity, improving long-term performance. Application Well-suited for copper feeder runs in industrial controls and distribution panels where high current handling is required. Feature Compression rod x tubular end connection → Business Impact Delivers secure, vibration-resistant terminations that stay tight under harsh conditions, reducing maintenance calls. Application Ideal for rugged industrial environments with frequent inspections or re-terminations. Feature Non-indicating fuse indicator → Business Impact Simplifies device selection in dense panels by relying on periodic electrical testing rather than visual indicators, cutting maintenance time. Application Useful in installations where independent diagnostic routines are embedded in the control system. Feature RoHS Compliant → Business Impact Supports regulatory compliance and environmental stewardship, reducing material handling risk. Application Aligns with sustainability programs across manufacturing facilities and lowers compliance overhead. Feature Lightweight design (0.1 lb) → Business Impact Eases handling during installation and replacements, lowering labor intensity and installation time. Application Beneficial for in-panel upgrades or retrofits where weight reduction matters. Feature 1.44 in L x 1.44 in W x 7.88 in H footprint → Business Impact Enables space-efficient mounting in crowded enclosures, freeing space for wiring and other components. Application Ideal for compact control panels and limited-clearance installations. Feature Copper cable with 1.75 inch length for #4/0 AWG → Business Impact Ensures robust power delivery with proven conductor material, improving protection performance and reliability. Application Suitable for direct use with large-diameter copper conductors in Eaton Bussmann KEX configurations.
Get a Quick Quote for a Eaton KEX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KEX?
Enquire Now
FAQs
The KEX cable limiter supports copper conductors sized #4/0 AWG and uses a compression rod x tubular end connection. This combination provides a secure, vibration-resistant termination suitable for rugged industrial environments and dense panel layouts, enabling reliable fault protection without complex field modifications.
The KEX cable limiter has an interrupt rating of 200 kAIC at 600 Vac, delivering strong fault energy handling for 600 VAC distribution systems. This rating helps prevent conductor and downstream device damage during high-energy faults and supports safer, more reliable panel operation.
Yes, the KEX cable limiter is RoHS compliant. This ensures restricted use of hazardous substances, simplifying regulatory compliance and environmental responsibility for projects in regions that mandate RoHS standards and sustainable manufacturing practices.
Typical applications include protection of 600 Vac feeders in motor control centers, switchgear, and control panels. The device is well-suited for high-energy fault environments where rapid isolation and reliable terminations are essential, helping to minimize downtime and extend equipment life.
Plan for a straightforward field installation using the compression rod x tubular end connection, ensuring proper torque and secure engagement. Confirm panel space fits the 1.44 in by 1.44 in by 7.88 in footprint, and verify copper conductor routing to avoid strain. Regular inspections and testing will help maintain optimal performance.
