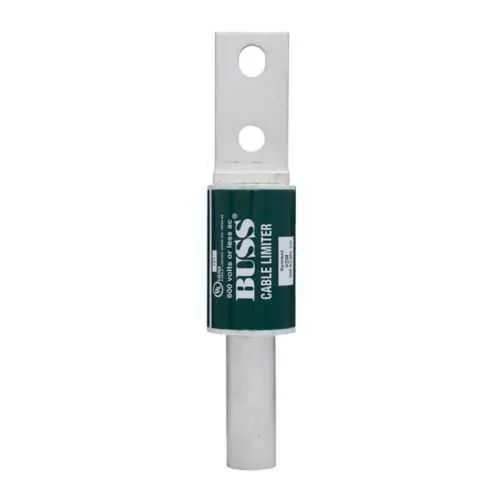

Eaton KFH-A Cable Limiter - 200 kAIC at 600 Vac
Part Number: KFH-A
Quick Summary
The Eaton KFH-A cable limiter protects power distribution circuits in switchgear and panel installations. Engineers frequently contend with nuisance trips and cascading faults; this limiter provides reliable fault interruption with fast response. It is RoHS compliant and rated for 200 kAIC at 600 Vac, with copper 250 kcmil conductors for robust performance. For OEMs and service teams, installation is streamlined by a compression rod x tubular end design, while the compact footprint supports dense panel layouts. By delivering high interrupt capacity and regulatory compliance, the KFH-A helps minimize downtime, extend equipment life, and lower lifecycle costs in industrial electrical systems.
Product Information
Extended Description
KFH-A Eaton: Eaton Bussmann series KFH cable limiter, 200 kAIC at 600 Vac, Compression rod X tubular end, Cable: copper, 250 kcmil, Non indicating
Product Name
Eaton Bussmann series KFH cable limiter
Catalog Number
KFH-A
UPC
051712177399
Product Length/Depth
1.44 in
Product Height
8.1 in
Product Width
1.44 in
Product Weight
1.4 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Interrupt rating
200 kAIC at 600 Vac
Material
Cable: Copper
Wire size
250 kcmil
Connection
Compression rod x tubular end
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KFH-A
Feature: 200 kAIC interrupt rating at 600 Vac. Business Impact: Delivers robust fault clearance for high-energy faults, reducing equipment damage and unplanned downtime. Application: ideal for main feeders in switchgear and large electrical panels. Feature: Copper cable, 250 kcmil conductor size. Business Impact: Ensures low electrical resistance and high current-carrying capability, enhancing reliability under surge events. Application: supports premium copper conductors in heavy-duty protection schemes. Feature: Compression rod x tubular end connection. Business Impact: Enables straightforward field assembly with solid mechanical bonding, shortening installation time. Application: suitable for tight installation spaces in panelwways and busbar configurations. Feature: RoHS compliant. Business Impact: Aligns with environmental and regulatory requirements, simplifying supplier onboarding and procurement audits. Application: applicable across regulated industries seeking sustainable components. Feature: Non-indicating fuse limiter design. Business Impact: Reduces maintenance checks by eliminating status indicators, while preserving clear fault isolation capability. Application: integration in conventional protection schemes where visual indicators are not required. Feature: Compact form factor and defined dimensions (1.44 in L/D, 1.44 in W, 8.1 in H) and weight (1.4 lb). Business Impact: Facilitates dense installations with predictable space planning and轻weight handling. Application: panel and busbar assemblies with tight packaging.
Get a Quick Quote for a Eaton KFH-A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KFH-A?
Enquire Now
FAQs
The KFH-A uses a compression rod x tubular end connection, designed for straightforward field assembly. Ensure the copper cable is 250 kcmil and seating is secure to achieve the rated 200 kAIC at 600 Vac. Verify clearance and mounting orientation in the panel to maintain proper cooling and service access.
Yes, the KFH-A is specified for 250 kcmil copper conductors. Install the cable into the compression rod x tubular end so that the conductor is firmly captured, then torque or secure per manufacturer guidance to sustain the 200 kAIC interrupt rating. Proper seating minimizes contact resistance and heat buildup.
Ideal for main feeders and protection schemes in switchgear, panelboards, and power distribution assemblies. Its high interrupt rating, RoHS compliance, and copper 250 kcmil capability make it suitable for dense, high-energy environments where reliability and regulatory alignment are priorities.
The KFH-A is RoHS compliant, aligning with environmental and regulatory requirements for modern electrical components. While not listing additional certifications in the provided data, RoHS compliance ensures regulatory compatibility in most industrial and commercial installations.
The KFH-A delivers high fault-interruption capability with a non-indicating design that simplifies routine checks, reducing maintenance overhead. Its robust 200 kAIC rating and copper 250 kcmil conductors improve uptime, lower downtime-related costs, and extend equipment life in high-energy distribution networks.
