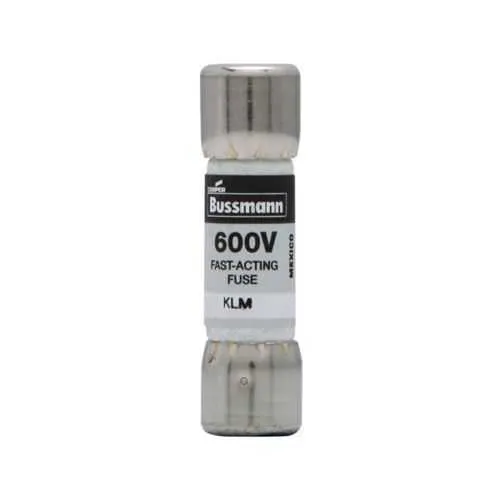

Eaton KLM-1 Fuse - 50 kAIC at 600 Vdc, CE RoHS
Part Number: KLM-1
Quick Summary
The Eaton KLM-1 fuse is a compact DC control circuit fuse designed for DC photovoltaic and industrial control applications. Design engineers often struggle with incorrect ratings, nuisance opening, and slow fault isolation in tight DC power installations. This device is CE-marked and RoHS compliant, supporting European regulatory requirements while delivering robust 600 V ratings. For procurement and maintenance teams, the non-indicating indicator reduces nuisance trips, and the ferrule-end connections simplify installation in control cabinets. With a 1 A rating and 50 kAIC interrupt capability at 600 Vdc (and 100 kAIC at 600 Vac), it provides reliable protection across DC control circuits and PV systems.
Product Information
Extended Description
KLM-1 Eaton: Eaton Bussmann series KLM fuse, DC Control circuits, DC photovoltaic systems, 1 A, Non-indicating, Ferrule end x ferrule end, 50 kAIC at 600 Vdc, 100 kAIC at 600 V, Melamine tube, Nickel-plated bronze endcap, 600 V, 600 Vdc
Product Name
Eaton Bussmann series KLM fuse
Catalog Number
KLM-1
UPC
051712695077
EAN
5027590063340
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Amperage Rating
1 A
Interrupt rating
50 kAIC at 600 Vdc 100 kAIC at 600 Vac
Voltage rating
600 Vac, 600 Vdc
Material
Nickel-plated bronze endcap Melamine tube
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KLM-1
KLM-1~FUSE MIDGET 600VAC 1A
Datasheet - FNQ-30
Feature: Compact Melamine tube construction with nickel-plated bronze endcaps and ferrule-end terminals reduces panel footprint while ensuring durable, vibration-resistant connections in harsh industrial environments. Business Impact: Frees cabinet space, minimizes contact resistance, and lowers replacement risk in demanding settings. Application: Ideal for DC control circuits and PV string protection in automation racks and solar installations. Feature: 1 A nominal rating delivers predictable protection for low-current control circuits. Business Impact: Minimizes nuisance trips and unplanned downtime in automation equipment, enabling steadier line uptime. Application: Suitable for small DC control loads in conveyor systems and machine enclosures. Feature: High interrupt ratings of 50 kAIC at 600 Vdc and 100 kAIC at 600 Vac enable fast fault clearance. Business Impact: Improves safety margins and improves feeder selectivity in mixed DC/AC networks. Application: Recommended for protection blocks near PV inverters and DC bus segments in industrial plants. Feature: Non-indicating status and RoHS CE compliance streamline maintenance and regulatory readiness. Business Impact: Reduces ongoing inspection requirements and accelerates European project approvals. Application: Supports European automation cabinets and energy-management systems with straightforward compliance. Feature: Ferrule end x ferrule end connections with standard packaging ensure quick, reliable installation. Business Impact: Lowers installation time and inventory complexity for spare parts. Application: Interchangeable with Bussmann series lines in service-heavy DC protection schemes.
Get a Quick Quote for a Eaton KLM-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KLM-1?
Enquire Now
FAQs
The KLM-1 uses ferrule end x ferrule end terminations, which provide reliable, vibration-resistant connections suitable for control cabinets and PV DC buses. Installation is straightforward with standard crimp ferrules, reducing time spent on termination prep and ensuring consistent contact quality in industrial environments.
KLM-1 is rated at 1 A with an interrupt rating of 50 kAIC at 600 Vdc and 100 kAIC at 600 Vac. The voltage rating is 600 Vac and 600 Vdc, making it suitable for both AC and DC protection in mixed systems. This enables fast fault clearance and protection for sensitive DC control circuits and PV arrays.
Yes. The KLM-1 is designed for DC control circuits and PV systems, offering 1 A protection with high interrupt capabilities. Its ferrule-end connections and durable construction support reliable protection in solar inverters, DC buses, and automation cabinets, while CE RoHS compliance ensures regulatory alignment in solar and industrial facilities.
The KLM-1 is CE marked and RoHS compliant, ensuring conformity with European regulatory requirements for electrical safety and hazardous substances. While not specified for SIL or IP ratings in the provided data, these certifications support global procurement and project approvals in European markets and beyond.
With a non-indicating fuse indicator, the KLM-1 reduces nuisance trips and maintenance checks in routine inspections. The ferrule-end terminations and nickel-plated bronze endcaps contribute to durable contact reliability, lowering replacement frequency in service-heavy DC control panels and PV installations, and simplifying stock management for spare parts.
