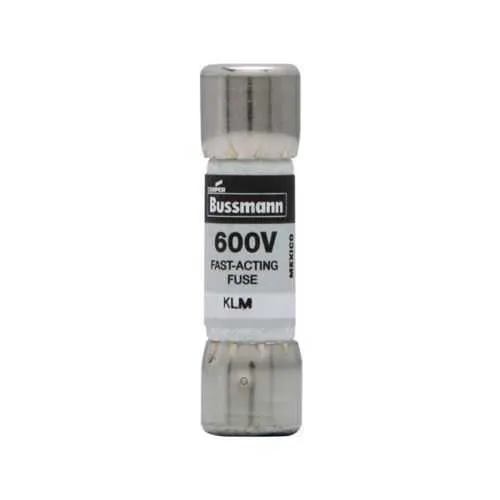

Eaton KLM-1/4 Fuse - 600 Vac/600 Vdc, 100 kAIC
Part Number: KLM-1/4
Quick Summary
The Eaton KLM-1/4 fuse is a compact, reliable solution for DC control circuits and PV systems. It addresses the real-world need for precise, fast-acting protection in tight control panels where space and response time matter. This device delivers high interrupt ratings of 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc, helping minimize downtime and equipment damage. RoHS compliant and CE marked, the fuse supports global deployments. By choosing KLM-1/4, engineers gain a standard, readily available protection element that simplifies procurement while enhancing system reliability in industrial automation and solar applications.
Product Information
Extended Description
KLM-1/4 Eaton: Eaton Bussmann series KLM fuse, DC Control circuits, DC photovoltaic systems, 0.25 A, Non-indicating, 100 kAIC at 600 Vac, 50 kAIC at 600 Vdc, Melamine tube, Nickel-plated bronze endcap, Standard, 600 V, 600 Vdc
Product Name
Eaton Bussmann series KLM fuse
Catalog Number
KLM-1/4
UPC
051712695039
EAN
5027590243605
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Amperage Rating
0.25 A
Interrupt rating
100 kAIC at 600 Vac 50 kAIC at 600 Vdc
Voltage rating
600 Vac, 600 Vdc
Material
Melamine tube Nickel-plated bronze endcap
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Indicating
KLM-1/4~KLM-1-4~LIMITRON FAST ACTING FUSE
KLM-1/4~KLM-1-4~LIMITRON FAST ACTING FUSE
Bussmann series Fuseology
Eaton Specification Sheet - KLM-1/4
Feature → Business Impact → Application: High interrupt rating (100 kAIC at 600 Vac; 50 kAIC at 600 Vdc) reduces the risk of catastrophic faults in DC control loops and PV arrays, leading to lower downtime and longer equipment life. Application: DC control circuits and photovoltaic systems require robust protection against short circuits, which this fuse delivers with confidence. Feature → Business Impact → Application: 0.25 A amperage rating provides precise overcurrent protection for small-draw control circuits, improving safety margins and preventing nuisance tripping during startup. Application: Control panels and automation logic power rails where tight current control is essential. Feature → Business Impact → Application: Melamine tube with nickel-plated bronze endcaps delivers mechanical stability in dense panel environments, enabling reliable field installation. Application: Industrial enclosures with limited space and temperature variation. Feature → Business Impact → Application: RoHS compliance and CE marking simplify regulatory compliance for global deployments, reducing import barriers and testing costs. Application: Multinational manufacturing lines and solar installations. Feature → Business Impact → Application: LIMITRON fast-acting design enables fast response to overcurrent events, minimizing arc risk and protecting downstream devices. Application: Feeder circuits and DC protection modules in automation and energy systems.
Get a Quick Quote for a Eaton KLM-1/4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KLM-1/4?
Enquire Now
FAQs
KLM-1/4 fuses are designed for standard fuse mounting in control panels. Ensure proper thermal clearance and secure endcaps, with a compatible holder. The device uses a Melamine tube and nickel-plated bronze endcaps for durability. Verify correct amperage rating of 0.25 A and the dual voltage capability (600 Vac / 600 Vdc) to match the circuit requirements and prevent nuisance trips.
The KLM-1/4 is rated for 0.25 A with an interrupt rating of 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc. It supports a voltage rating of 600 Vac and 600 Vdc, making it suitable for both AC control circuits and DC photovoltaic/non-grid applications while protecting sensitive electronics from short circuits.
Yes. The KLM-1/4 is well-suited for DC photovoltaic systems, providing fast-acting protection to DC control circuits and PV arrays. Its 600 Vdc rating and high interrupt capability help safeguard string inverters, combiner boxes, and racking electronics, reducing the risk of cascade failures and downtime in solar installations.
The KLM-1/4 is RoHS compliant and CE marked, ensuring regulatory alignment for broader market deployment. This simplifies cross-border procurement and adherence to environmental and safety requirements in industrial automation, electrical protection, and solar energy projects.
Choosing the KLM-1/4 provides precise protection for small DC control circuits with high reliability thanks to robust interrupt ratings. It reduces downtime, supports global compliance, and simplifies stocking with a standard Eaton Bussmann part. The result is lower total cost of ownership and smoother maintenance across automation and PV systems.
