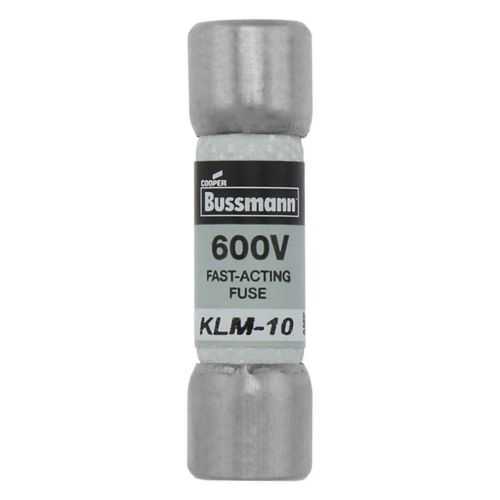

Eaton KLM-10 Fuse - 50 kAIC at 600 Vdc
Part Number: KLM-10
Quick Summary
The Eaton KLM-10 fuse is a fast-acting device that protects low-voltage circuits in control panels and industrial equipment. In compact systems, selecting the wrong fuse can cause nuisance trips or leave critical loads unprotected during overloads. It carries CE marking and RoHS compliance, with a 10 A rating and a 600 V rating for both AC and DC applications, along with a robust interrupt capacity of 50 kAIC at 600 Vdc and 100 kAIC at 600 Vac. The ferrule-end connections, nickel-plated bronze endcaps, and melamine tube combine to deliver reliable performance in harsh environments. This fuse aligns with Bussmann series catalogs, supports standard packaging, and integrates easily with existing ferrule termination harnesses, delivering predictable protection and maintenance from a cost-per-hour perspective.
Product Information
Extended Description
KLM-10 Eaton: Eaton Bussmann series KLM fuse, 10 A, Non-indicating, Ferrule end x ferrule end, 50 kAIC at 600 Vdc, 100 kAIC at 600 V, Nickel-plated bronze endcap, Melamine tube, 600 V, 600 Vdc
Product Name
Eaton Bussmann series KLM fuse
Catalog Number
KLM-10
UPC
051712695152
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
10 A
Interrupt rating
50 kAIC at 600 Vdc 100 kAIC at 600 Vac
Voltage rating
600 Vac, 600 Vdc
Material
Melamine tube Nickel-plated bronze endcap
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Non-indicating
Bussmann series full line catalog 1007, section 01- low voltage branch circuit fuses
Bussmann series full line catalog 1007, section 01- low voltage branch circuit fuses
Bussmann series Fuseology
Eaton Specification Sheet - KLM-10
KLM-10~LIMITRON FAST ACTING FUSE
Datasheet - FNQ-30
Feature: 10 A amperage rating → Business Impact: Precise protection for sensitive control circuits reduces nuisance trips and equipment wear; Application: Low-voltage branch circuits in control panels. Feature: 50 kAIC at 600 Vdc and 100 kAIC at 600 Vac → Business Impact: High fault-tolerance limits equipment damage and downtime; Application: DC and AC power rails in machinery. Feature: Ferrule-end x ferrule-end connection → Business Impact: Simple, secure termination with compatible harnesses; Application: Panel wiring and harness assemblies. Feature: Melamine tube with nickel-plated bronze endcaps → Business Impact: Robust thermal stability and corrosion resistance; Application: Harsh industrial environments. Feature: CE Marked and RoHS compliant → Business Impact: Regulatory readiness and global deployment; Application: International installations and compliance-driven projects. Feature: Non-indicating fuse indicator → Business Impact: Clean panel aesthetics and reduced false indications; Application: High-density control panels with minimal indicators.
Get a Quick Quote for a Eaton KLM-10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KLM-10?
Enquire Now
FAQs
For proper installation, ensure ferrule-end terminations are compatible with your fuse holders and harnesses. Observe the 600 V rating for both AC and DC circuits, confirm the 10 A rating matches the target load, and use appropriate protective enclosures to maintain the ferrule connections. Avoid over-tightening ferrules to prevent end-cap damage and ensure clear visibility of the fuse in service.
The KLM-10 is rated at 10 A with an interrupt capability of 50 kAIC at 600 Vdc and 100 kAIC at 600 Vac. It supports 600 Vac and 600 Vdc, making it suitable for mixed AC/DC environments. The non-indicating design means there is no visible fuse status indicator, which can simplify panel design when remote status monitoring is used.
Yes, the KLM-10 is rated for DC applications with an interrupt rating of 50 kAIC at 600 Vdc. This makes it appropriate for DC bus protections in applications like motor drives and DC-powered control systems, where fast clearing of overcurrents is critical to prevent equipment damage and downtime.
The KLM-10 carries CE marking and RoHS compliance, validating its suitability for European markets and adherence to restricted substances limits. This helps meet regulatory requirements, enables global deployment, and simplifies procurement for multi-region projects seeking compliant low-voltage fuses in standard form factors.
The KLM-10’s high interrupt ratings and robust physical construction reduce fault-related damage and downtime, translating to lower maintenance costs and longer service intervals. Its non-indicating design minimizes panel clutter, while standard ferrule-term connections streamline replacement, contributing to a favorable total cost of ownership in industrial and automation environments.
