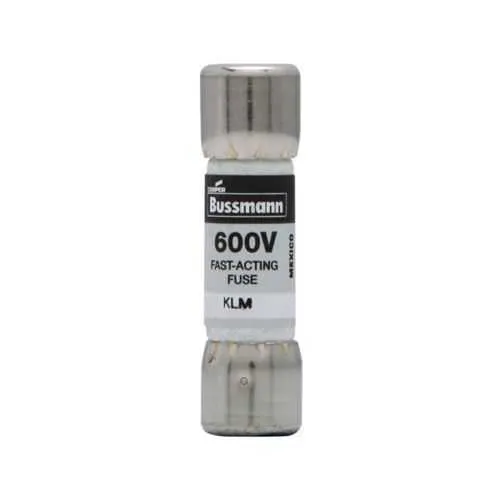

Eaton KLM-12 Fuse - 50 kAIC at 600 Vdc
Part Number: KLM-12
Quick Summary
The Eaton KLM-12 fuse provides reliable overcurrent protection for industrial control panels and power distribution networks. Engineers often face nuisance trips, extended downtime for replacements, and uncertain interrupt ratings in harsh environments. This CE marked, RoHS compliant fuse supports up to 600 V ratings and delivers 50 kAIC at 600 Vdc with 100 kAIC at 600 Vac, helping modern electrical systems stay safeguarded. Designed for ferrule-end connections with a compact, non-indicating design, it integrates smoothly with Bussmann series components, reducing maintenance cycles and simplifying spare-part stocking while maintaining robust protection across applications.
Product Information
Extended Description
KLM-12 Eaton: Eaton Bussmann series KLM fuse, 12 A, Non-indicating, Ferrule end x ferrule end, 50 kAIC at 600 Vdc, 100 kAIC at 600 V, Melamine tube, Nickel-plated bronze endcap, 600 V, 600 Vdc
Product Name
Eaton Bussmann series KLM fuse
Catalog Number
KLM-12
UPC
051712562652
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
12 A
Interrupt rating
50 kAIC at 600 Vdc 100 kAIC at 600 Vac
Voltage rating
600 Vac, 600 Vdc
Material
Nickel-plated bronze endcap Melamine tube
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KLM-12
Feature → Business Impact → Application: The KLM-12 offers a 12 A amperage rating and a broad 600 V rated environment, delivering precise overcurrent protection that minimizes nuisance trips and prevents downstream damage in control circuits. This translates to improved equipment uptime and reduced maintenance costs in industrial automation applications such as motor drives and control panels. Feature → Business Impact → Application: The ferrule-end x ferrule-end connection plus nickel-plated bronze endcaps and melamine tube provide durable, vibration-resistant joining points, enabling quick field replacements and long service life in harsh factory environments. Feature → Business Impact → Application: With interrupt ratings of 50 kAIC at 600 Vdc and 100 kAIC at 600 Vac, the KLM-12 ensures safe disconnection under fault conditions, supporting compliance and safeguarding personnel. Feature → Business Impact → Application: The non-indicating, standard packaging fuse reduces maintenance visibility requirements and simplifies replacement schedules in high-volume maintenance operations across power distribution blocks and panel boards. Feature → Business Impact → Application: Compatibility with Bussmann series catalogs and CE RoHS compliance ensures seamless integration with existing safety programs and regulatory requirements in regulated industries.
Get a Quick Quote for a Eaton KLM-12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KLM-12?
Enquire Now
FAQs
The KLM-12 uses ferrule end x ferrule end connections, making it compatible with standard Bussmann series and common ferrule-terminal fuse holders found in industrial control panels, motor control centers, and distribution blocks. Always verify terminal size and mounting fitment for secure, vibration-resistant installation in your enclosure.
The KLM-12 is a 12 A fuse rated for 600 Vac and 600 Vdc. It provides an interrupt rating of 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc, with non-indicating operation and ferrule-end connections, ensuring reliable disconnection under fault conditions and straightforward maintenance.
Yes. The KLM-12 is CE marked and RoHS compliant, aligning with European regulatory requirements and minimizing compliance risk for electrical protection assemblies in machinery, process equipment, and panel systems.
Its non-indicating design reduces visual inspection requirements, while the ferrule-end construction and standard packaging streamline field replacements. Coupled with wide availability through Eaton’s Bussmann series catalogs, this fuse lowers stocking complexity and accelerates mean time to repair in high-demand maintenance environments.
Follow manufacturer torque guidelines for ferrule-terminals, inspect endcaps and the Melamine tube for signs of wear, and replace only with the same model to preserve interrupt ratings. Verify polarity and ensure secure seating in compatible fuse holders to prevent arcing and ensure safe disconnection under fault conditions.
