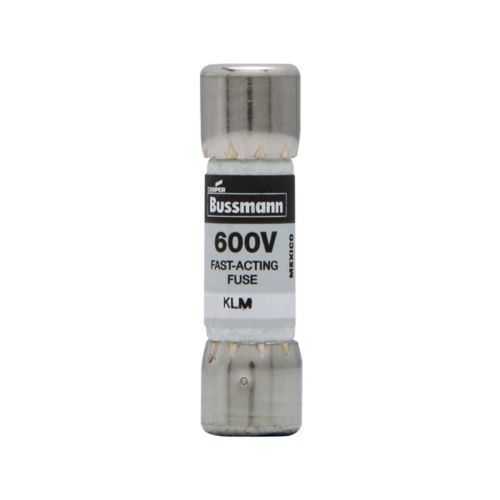

Eaton KLM-2-1/2 Fuse DC/AC Protection - 100 kAIC at 600 Vac
Part Number: KLM-2-1/2
Quick Summary
The KLM-2-1 fuse by Eaton protects DC control circuits and PV systems. For engineers, selecting a fuse that safely handles both DC and AC faults without nuisance trips is a recurring challenge. CE marked and RoHS compliant, it also offers 50 kAIC at 600 Vdc and 100 kAIC at 600 Vac, delivering reliable protection under fault conditions. Its standard packaging, non-indicating operation, and robust endcaps streamline installation in control panels and renewable energy applications, reducing install time and lifecycle cost. In practice, this means confident protection across mixed DC/AC environments while keeping stock, sourcing, and maintenance straightforward.
Product Information
Extended Description
KLM-2-1/2 Eaton: Eaton Bussmann series KLM fuse, DC Control circuits, DC photovoltaic systems, 2.5 A, Non-indicating, 50 kAIC at 600 Vdc, 100 kAIC at 600 Vac, Melamine tube, Nickel-plated bronze endcap, Standard, 600 V, 600 Vdc
Product Name
Eaton Bussmann series KLM fuse
Catalog Number
KLM-2-1/2
UPC
051712695183
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
2.5 A
Interrupt rating
100 kAIC at 600 Vac 50 kAIC at 600 Vdc
Voltage rating
600 Vac, 600 Vdc
Material
Melamine tube Nickel-plated bronze endcap
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KLM-2-1/2
Feature: Dual rating capability across 600 Vac and 600 Vdc reduces BOM complexity and design review effort. Business Impact: Fewer part substitutions and streamlined procurement, accelerating time-to-market for new equipment. Application: Suitable for mixed power rails in industrial automation and PV inverters. Feature: High interrupt ratings—100 kAIC at 600 Vac and 50 kAIC at 600 Vdc. Business Impact: Robust fault clearance minimizes downstream damage, arc exposure, and warranty costs. Application: Heavy-duty protection in power distribution and safety-critical control cabinets. Feature: Non-indicating, standard packaging simplifies stocking and replacement. Business Impact: Lower maintenance downtime and simplified field service with readily available parts. Application: Retrofit projects and new builds in factory automation and renewable energy setups. Feature: Durable construction with a melamine tube and nickel-plated bronze endcaps. Business Impact: Enhanced contact reliability and corrosion resistance, extending service life in harsh environments. Application: Outdoor equipment, process industries, and high-vibration installations. Feature: CE Marked and RoHS compliant. Business Impact: Regulatory alignment reduces QA cycles and enables global deployment. Application: European markets and regions with strict environmental standards.
Get a Quick Quote for a Eaton KLM-2-1/2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KLM-2-1/2?
Enquire Now
FAQs
The KLM-2-1/2 fuse is rated at 2.5 A and provides interrupt ratings of 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc, delivering robust protection in mixed DC/AC applications.
Yes. The KLM-2-1/2 fuse is CE marked and RoHS compliant, aligning with European regulatory requirements and environmental standards.
Yes. It is specified for DC control circuits and PV systems, providing reliable protection for solar-related DC power paths in addition to AC control functions.
The fuse features a melamine tube with nickel-plated bronze endcaps, offering contact reliability and corrosion resistance suitable for industrial environments.
The Eaton datasheet is available in the downloads section on the product page, along with the Bussmann catalog and additional resources such as Fuseology videos.
