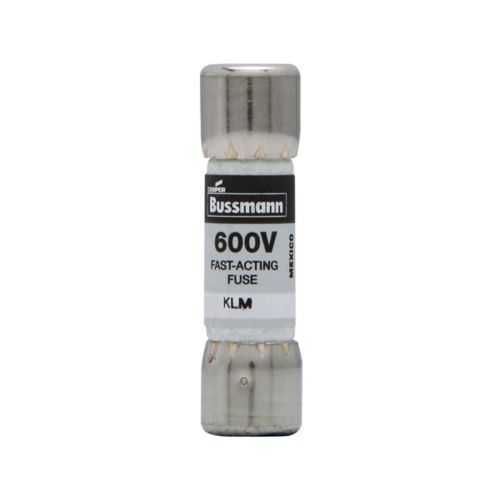

Eaton KLM-3/10 Fuse - CE Marked RoHS Compliant
Part Number: KLM-3/10
Quick Summary
The Eaton KLM-3/10 fuse provides fast DC circuit protection for control panels and PV systems. Engineers often struggle to choose fuses that prevent faults without nuisance trips under varying DC loads and PV string configurations. This device carries CE marking and RoHS compliance, along with 600 Vac/600 Vdc ratings and 100 kAIC at 600 Vac. With Bussmann series compatibility and a standard Melamine tube design, it supports reliable protection, easy sourcing, lifecycle cost reductions, and predictable maintenance schedules. This translates to faster commissioning and reduced downtime in energy management and industrial automation applications.
Product Information
Extended Description
KLM-3/10 Eaton: Eaton Bussmann series KLM fuse, DC Control circuits, DC photovoltaic systems, 0.3 A, Non-indicating, 100 kAIC at 600 Vac, 50 kAIC at 600 Vdc, Melamine tube, Nickel-plated bronze endcap, Standard, 600 V, 600 Vdc
Product Name
Eaton Bussmann series KLM fuse
Catalog Number
KLM-3/10
UPC
051712695046
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
0.3 A
Interrupt rating
50 kAIC at 600 Vdc 100 kAIC at 600 Vac
Voltage rating
600 Vac, 600 Vdc
Material
Melamine tube Nickel-plated bronze endcap
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Indicating
KLM-3/10~KLM-3-10~LIMITRON FAST ACTING FUSE
KLM-3/10~KLM-3-10~LIMITRON FAST ACTING FUSE
Bussmann series Fuseology
Eaton Specification Sheet - KLM-3/10
Feature: 0.3 A amperage rating → Business impact: precise overload protection reduces nuisance trips and extends lifespan of contactors and controllers → Application: ideal for DC control circuits in panels and automation modules. Feature: 600 Vac / 600 Vdc voltage rating → Business impact: simplifies cross-domain installation and PV protection planning, cutting part count → Application: DC control circuits, PV inverters, and mixed AC/DC systems. Feature: 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc interrupt ratings → Business impact: robust fault interruption and system protection under high fault currents → Application: industrial power distributions and PV arrays where fault current levels are uncertain. Feature: Non-indicating design with Indicating variants available in the Bussmann line → Business impact: reduces wiring and indicator confusion in noisy environments while offering remote-status options → Application: control panels and remote monitoring setups where status indication is integrated elsewhere. Feature: Melamine tube with nickel-plated bronze endcaps → Business impact: durable dielectric strength and mechanical reliability for harsh environments → Application: rugged industrial cabinets, automation equipment, and switchgear. Feature: Standard packaging and Bussmann series compatibility → Business impact: quick drop-in replacement and streamlined procurement → Application: upgrades in existing protection schemes across control and PV installations. Feature: CE Marking and RoHS compliance → Business impact: regulatory readiness and global deployment with minimized qualification effort → Application: worldwide automation deployments and panel builds.
Get a Quick Quote for a Eaton KLM-3/10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KLM-3/10?
Enquire Now
FAQs
The KLM-3/10 is designed to integrate with standard Bussmann series fuse holders and supports standard packaging, making it a plug-and-play upgrade for existing control panels and automation cabinets. Its compact dimensions and melamine tube construction ensure reliable seating in common fuse blocks while preserving thermal performance and clearance requirements.
The device features a 0.3 A amperage rating, 600 Vac and 600 Vdc voltage rating, and interrupt ratings of 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc. This combination supports robust protection for DC control circuits and PV-related DC power paths, while maintaining compatibility with standard AC systems where present.
Yes. The KLM-3/10 is specifically engineered for DC control circuits and PV protection scenarios, delivering precise current protection for low‑current control paths and reliable fault interruption in PV arrays. Its 600 Vac/600 Vdc ratings and high interrupt capability make it a versatile choice in mixed DC/AC environments commonly found in automation and solar installations.
The KLM-3/10 carries CE marking and RoHS compliance, signaling regulatory alignment for global deployment. These certifications ensure the fuse meets essential safety and environmental standards, reducing qualification time during international projects and simplifying procurement for OEMs and integrators working across multiple regions.
The 0.3 A rated, fast-acting design minimizes nuisance trips and supports longer service life for downstream components. High interrupt ratings tolerate fault currents without cascading failures, reducing downtime and maintenance costs. In practice, this translates to faster commissioning, improved uptime, and lower total cost of ownership for control panels and PV protection schemes.
