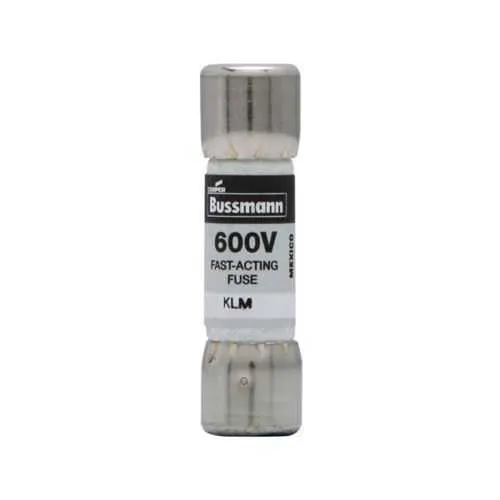

Eaton KLM-30 Fuse - 100 kAIC at 600 Vac, Non-indicating
Part Number: KLM-30
Quick Summary
The Eaton KLM-30 fuse provides fast-acting protection for industrial control circuits in electrical panels. Engineers seek protection that prevents nuisance outages without sacrificing speed or selectivity. Choosing the wrong fuse often leads to downtime and equipment damage due to undersized interrupt ratings. This device carries a CE mark and RoHS compliance, supporting safe, code-compliant installations for both 600 Vac and 600 Vdc systems with a robust 100 kAIC interrupt rating at 600 Vac. The ferrule-end terminations and compatibility with standard Bussmann series assemblies simplify wiring and spare parts management, delivering reliability for panel builders, motor controls, and distribution blocks.
Product Information
Extended Description
KLM-30 Eaton: Eaton Bussmann series KLM fuse, 30 A, Non-indicating, Ferrule end x ferrule end, 100 kAIC at 600 V, 50 kAIC at 600 Vdc, Melamine tube, Nickel-plated bronze endcap, 600 V, 600 Vdc
Product Name
Eaton Bussmann series KLM fuse
Catalog Number
KLM-30
UPC
051712695305
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
30 A
Interrupt rating
100 kAIC at 600 Vac 50 kAIC at 600 Vdc
Voltage rating
600 Vac, 600 Vdc
Material
Nickel-plated bronze endcap Melamine tube
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - KLM-30
KLM-30~LIMITRON FAST ACTING FUSE
Datasheet - FNQ-30
Feature → 30 A amperage rating provides precise protection for 30 A circuits in control panels, reducing nuisance trips while preserving uptime. Business Impact → This translates to fewer unplanned outages and lower service costs in high-cycle automation environments. Application → Ideal for branch circuits in MCCs and PLC panels where fast, selective protection is essential. Feature → 100 kAIC interrupt rating at 600 Vac enables safe interruption of large fault currents typical in motors and feeders. Business Impact → Enhances equipment protection and plant safety, reducing the risk of cascading failures. Application → Suitable for motor control centers and power distribution blocks in demanding industrial settings. Feature → 600 Vac / 600 Vdc voltage rating offers versatile use across AC and DC control circuits. Business Impact → Simplifies part selection and stocking, lowering inventory complexity. Application → Useful in mixed-voltage panels and infrastructure with diverse drive technologies. Feature → Ferrule end x ferrule end termination, melamine tube, and nickel-plated bronze endcaps deliver durable, reliable connections. Business Impact → Improves field reliability and simplifies installation with robust terminations. Application → Field installs in control cabinets and panel assemblies with standard Bussmann components. Feature → CE Marked and RoHS compliant with standard packaging. Business Impact → Ensures regulatory alignment and supply-chain confidence, accelerating audits and procurement. Application → Fits regulated facilities and global deployments across industrial automation and electrical protection applications.
Get a Quick Quote for a Eaton KLM-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton KLM-30?
Enquire Now
FAQs
The KLM-30 is designed with ferrule end terminations (ferrule end x ferrule end), making it compatible with common panel wiring and standard Bussmann series devices. Its ferrule terminations, combined with a melamine tube and nickel-plated endcaps, enable reliable connections in both new builds and retrofits, reducing field wiring time and ensuring consistent performance.
The KLM-30 provides an interrupt rating of 100 kAIC at 600 Vac and 50 kAIC at 600 Vdc. This high interrupt capacity protects downstream equipment from high fault currents typical in motor drives and feeders, supporting safe, fast clearing of faults and minimizing damage to power distribution systems.
Yes. The KLM-30 fuse is CE marked and RoHS compliant, ensuring regulatory alignment for European and global deployments. This compliance supports streamlined procurement, audit readiness, and compatibility with other RoHS-compliant components in industrial panels and control systems.
Absolutely. With a 30 A amperage rating and non-indicating design, the KLM-30 is well-suited for 30 A branch circuits in electrical panels, MCCs, and PLC enclosures. The ferrule-end terminations simplify wiring, while the 600 Vac / 600 Vdc rating provides flexibility across AC and DC control circuits.
Datasheets and catalogs are available from Eaton’s Bussmann series resources. Refer to the Eaton Specification Sheet for KLM-30, the Bussmann series full-line catalog no. 1007, and the KLM-30 data sheet (LIMITRON FAST ACTING FUSE) for installation guidance, electrical ratings, and safety notes. These sources provide wiring diagrams, termination recommendations, and compliance details.
